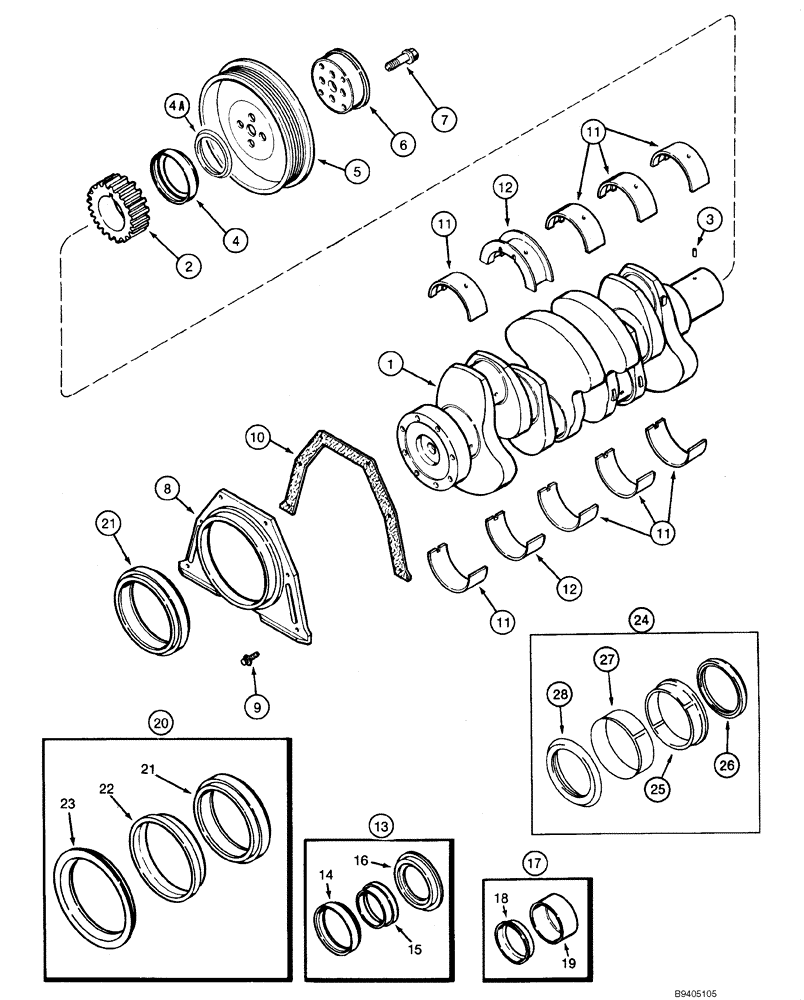

Запчасти Case 1845C (02-30) - CRANKSHAFT, 4-390 ENGINE (02) - ENGINE

JR908031

CRANKCASE

Remanufactured; North America Only

1шт.

J929036R

REMAN-CRANKSHAFT

1845C (1/86-), Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

Return Number

1шт.

1

J918323

CRANKSHAFT

Incl. 2, 3; Replaces J916190; No Longer Available; Order J908031

1шт.

J929036R

REMAN-CRANKSHAFT

1845C (1/86-), Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

1

J908031

CRANKSHAFT

Replaces J918323

1шт.

J929036R

REMAN-CRANKSHAFT

1845C (1/86-), Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J919681

PINION

Replaces J901258, J912883; Part of J918323

1шт.

2

J929027

PINION

Part of J908031

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal; Order J904353; See Fig 02-10

1шт.

4a

J926430

SHAFT SEAL

Service Repair Only

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J905820

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J936904

REAR COVER

Replaces J913447, J921043

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J938159

GASKET

Replaces J928493, J914386, J928493

1шт.

11

A77405

CRANKSHAFT BEARING

Standard

4шт.

11

A77472

BEARING SET

Undersize 0.25 mm

4шт.

11

A77474

BEARING SET

Undersize 0.50 mm

4шт.

11

A77476

BEARING SET

Undersize 0.75 mm

4шт.

11

A77478

BEARING SET

Undersize 1.00 mm

4шт.

12

A77406

CRANKSHAFT BEARING

Standard

1шт.

12

A77473

THRUST BEARING

Undersize 0.25 mm

1шт.

12

A77475

THRUST BEARING

Undersize 0.50 mm

1шт.

12

A77477

THRUST BEARING

Undersize 0.75 mm

1шт.

12

A77479

THRUST BEARING

Undersize 1.00 mm

1шт.

13

J904353

GASKET KIT

Front; Incl. 14 - 16; No Longer Available, Order A77889; See Fig 02-31, Ref 13

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

J906080

PACKAGE, REPAIR

Sleeve; Incl. 18, 19

1шт.

18

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

19

NSS

NOT SOLD SEPARAT

Tool

1шт.

20

A77809

GASKET KIT

Rear; Replaces J909410; Incl. 21 - 23; Tool No Longer Included in Kit, Available from OTC

1шт.

21

NSS

NOT SOLD SEPARAT

Seal

1шт.

22

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

23

NSS

NOT SOLD SEPARAT

Tool

1шт.

24

A77810

SERVICE KIT

Rear; Replaces J906081; Incl. 25 - 28; Ref 27, 28 Tools No Longer Included in Kit, Available from OTC

1шт.

25

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

26

NSS

NOT SOLD SEPARAT

Seal

1шт.

27

NSS

NOT SOLD SEPARAT

Tool; Not Illustrated

1шт.

28

NSS

NOT SOLD SEPARAT

Tool; Not Illustrated

1шт.
