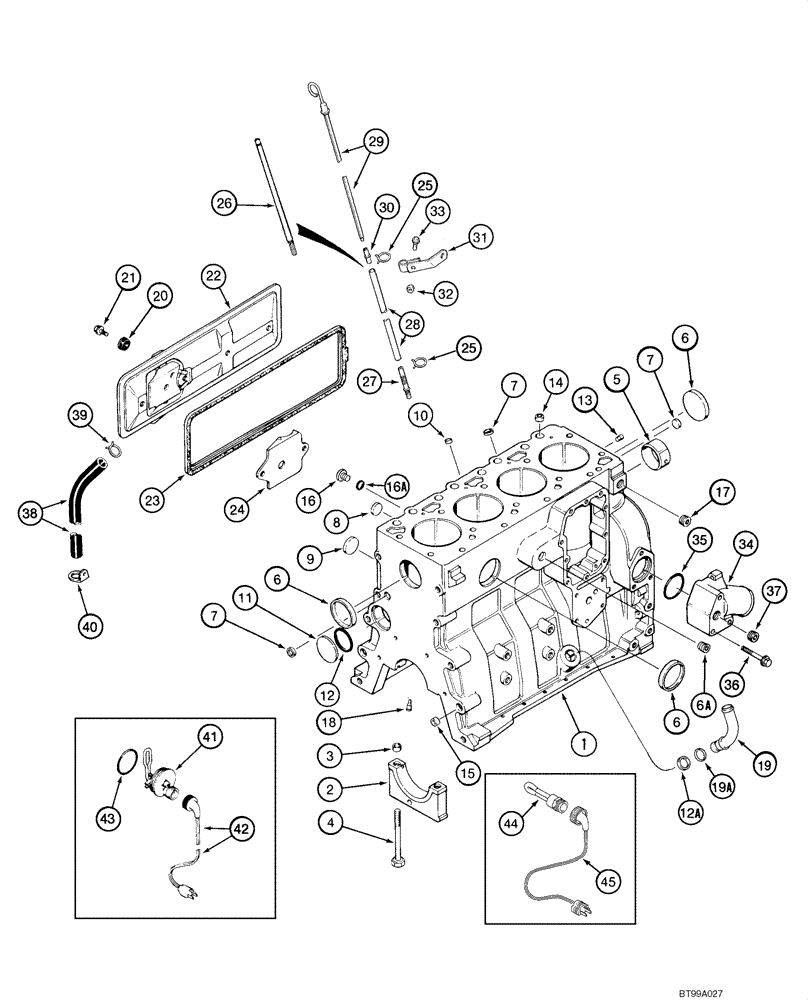

Запчасти Case 1845C (02-28) - CYLINDER BLOCK (NORTH AMERICA), 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J935677) (02) - ENGINE

326953A1

ENGINE ASSEMBLY

ENGINE ASSY Complete; For Service Order 349469A1

1шт.

377515A1R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Remanufactured, Complete, w/o Flywheel and Housing

1шт.

377513A1R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Remanufactured

1шт.

4-391C

CORE-REPLACEMENT ENG

Return Number

1шт.

87605124

ENGINE

Replacement, CDC, 3.9L, 4 Cyl.

1шт.

84251587R

REMAN-REPLACEMENT EN

Replacement, CDC, 3.9L, 4 Cyl.

1шт.

84251587C

CORE-REPLACEMENT ENG

Return Number, CDC, 3.9L, 4 Cyl.

1шт.

349469A1

BASIC ENGINE

Basic Service Engine; Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner; See Note

1шт.

47465894R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts. Built with 4 bolt injection pump front housing

1шт.

47465894C

CORE-BASIC ENGINE

Return Number

1шт.

J935600

SHORT ENGINE

Block Assy; With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings; Incl. 1 - 8; Engine No. 45705902 -

1шт.

JR935600

REMAN-SHORT ENGINE

Short; Remanufactured; Engine No. 45705902 -

1шт.

1

J932012

SCREW

Stripped; Incl. 2 - 8; Order J933220

1шт.

2

J903492

BEARING CAP

Incl. 3

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing; See Fig 02-25

1шт.

6

A77782

PLUG

58 mm; Expansion

1шт.

6a

J920706

PLUG

22 mm OD

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Kit, Block Hardware; Incl. 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD; Incl. 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm; Expansion

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm; Incl. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

1шт.

17a

J678921

PLUG

14 mm; Incl. 17B; Not Used in this Application; Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not used in this application, Not Illustrated

1шт.

17c

J932296

PLUG

Incl. 17D; Not Used in this Application; Not Illustrated

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Used in this Application; Not Illustrated

1шт.

17e

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC Not Used in this Application; Not Illustrated

1шт.

18

J937214

NOZZLE CAP

Replaces J930139

4шт.

19

J931973

TUBE,0.875" OD

Not Used in this Application

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

Not Used in this Application

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

1шт.

23

J283767

GASKET,7.4mm Thk

1шт.

24

J907586

BAFFLE

1шт.

25

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

26

J283538

TUBE,9.7 mm ID x 12.7 mm OD

Replaces J279248

1шт.

27

A77645

TUBE

1шт.

28

J908306

TUBE

1шт.

29

J908311

DIPSTICK,914.3mm L

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

31

J917762

BRACE

1шт.

32

825-1408

NUT,M8, Cl 8

1шт.

33

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

34

J934877

HYD CONNECTOR

1шт.

35

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

36

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

37

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

2шт.

38

J918612

TUBE,360.00 mm

1шт.

39

J904230

CLAMP,25.4mm

1шт.

40

J928989

CLIP

1шт.

40a

J905401

PLUG

35 mm; Expansion; Pressed in Oil Fill Hole on Left Side of Engine Block; Not Illustrated

1шт.

196803A1

KIT

Engine Block Heater, 120V - 750W; Incl. 41 - 43; Install Ref. 41 In Place Of Ref. 6 Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 6 Plug

1шт.

42

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in)

1шт.

43

J910517

O-RING

1шт.

309651A1

KIT

Engine Block Heater, 120V - 750W; Incl. 44, 45; Install Ref. 44 In Place Of Ref. 6A Plug

1шт.

44

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 6A Plug

1шт.

45

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in)

1шт.
