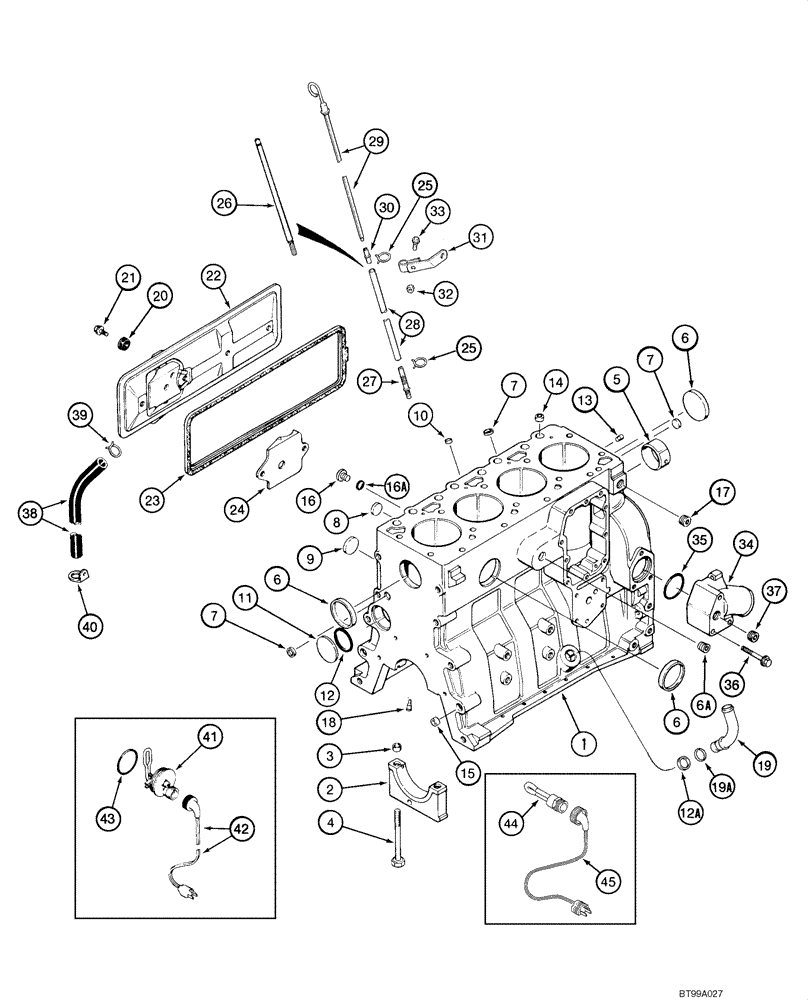

Запчасти Case 1845C (02-27) - CYLINDER BLOCK (NORTH AMERICA), 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J931397) (02) - ENGINE

258520A1

Engine Assy; Complete; For Service, Order 302562A1

1шт.

302562A1

BASIC ENGINE

Basic Service Engine; Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner

1шт.

47465894R

REMAN-BASIC ENGINE

Basic Service Engine; Incl. All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley and Belt Tensioner. Built with 4 bolt injection pump front housing

1шт.

47465894C

CORE-BASIC ENGINE

Return Part Number

1шт.

JR935233

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Block Assy; Short; Remanufactured; North America Only; Engine No. 45636369 - 45705901

1шт.

J933649

SHORT ENGINE

With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings; Engine No. - 45636368; Incl. 1 - 8

1шт.

JR933649

REMAN-SHORT ENGINE

With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings; Engine No. - 45636368; Incl. 1 - 8

1шт.

JC933649

CORE-SHORT ENGINE

Return Part Number

1шт.

J935233

BLOCK ASSY.

With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings; Engine No. 45636369 - 45705901; Incl. 1 - 8

1шт.

1

87444172

BLOCK ASSY.

Stripped; Incl. 2 - 8; Order J933220

1шт.

2

J903492

BEARING CAP

Incl.3

5шт.

3

J900068

BEARING WASHER

18 mm OD

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

10шт.

5

REF

INSTRUCTION

Bushing; See Fig 02-24, Ref 2

1шт.

6

A77782

PLUG

58 mm; Expansion

1шт.

6a

A77505

PLUG

3/4 PT

1шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

Kit, Block; Incl. 9 - 18

1шт.

9

J900958

PLUG

32 mm OD

2шт.

10

J900955

PLUG

10 mm OD

3шт.

11

172599

PLUG,Exp, 2 3/8"

60 mm OD; Incl. 12

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

12a

J920706

PLUG

22 mm; Expansion

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J902343

DOWEL

16 mm OD

2шт.

15

J900068

BEARING WASHER

18 mm OD

2шт.

16

J678923

PLUG,M10 x 1

10 mm; Incl. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

17

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

1шт.

17a

J678921

PLUG

14 mm; Not Used in this Application; Incl. 17B; Not Illustrated

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Not used in this application, Not Illustrated

1шт.

17c

J932296

PLUG

Not Used in this Application; Not Illustrated; Incl. 17D

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

Not Used in this Application; Not Illustrated

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not Used in this Application; Not Illustrated

1шт.

18

J930139

NOZZLE CAP

4шт.

19

J931973

TUBE,0.875" OD

Not Used in this Application

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

Not Used in this Application

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

1шт.

23

J283767

GASKET,7.4mm Thk

1шт.

24

J907586

BAFFLE

1шт.

25

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

26

J279248

TUBE

1шт.

27

A77645

TUBE

1шт.

28

J908306

TUBE

1шт.

29

J908311

DIPSTICK,914.3mm L

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

31

J917762

BRACE

1шт.

32

825-1408

NUT,M8, Cl 8

1шт.

33

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

34

J903102

CONNECTION

1шт.

35

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

36

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

37

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

2шт.

38

J918612

TUBE,360.00 mm

1шт.

39

J904230

CLAMP,25.4mm

1шт.

40

J928989

CLIP

1шт.

40a

J905401

PLUG

35 mm; Expansion; Oil Filler; Not Illustrated

1шт.

196803A1

KIT

Engine Block Heater, 120V - 750W; Incl. 41 - 43; Install Ref. 41 In Place Of Ref. 6 Plug

1шт.

41

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 6 Plug

1шт.

42

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in)

1шт.

43

J910517

O-RING

1шт.

309651A1

KIT

Engine Block Heater, 120V - 750W; Incl. 44, 45; Install Ref. 44 In Place Of Ref. 6A Plug

1шт.

44

NSS

NOT SOLD SEPARAT

Element, 120V - 750W; Installs In Place Of Ref. 6A Plug

1шт.

45

196466A1

ELECTRIC CABLE

120V - 750W, 1829 mm (72 in)

1шт.

A77893

PACKAGE, REPAIR

Engine Block; Not Illustrated; Incl. 46 - 53; If used

1шт.

46

J804980

PISTON & RINGS KIT

See Fig 02-35

4шт.

47

J919053

PISTON PIN

No Longer Available; Order J934047

4шт.

47

J934047

PIN,40mm OD x 82.68mm L

See Fig 02-35 - 02-37

4шт.

48

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

See Fig 02-35 - 02-37

4шт.

49

J804940

BEARING SET

See Fig 02-31

4шт.

50

A77895

THRUST BEARING,KIT

See Fig 02-31

1шт.

51

A77870

SEAL PACKAGE

See Fig 02-39; No Longer Available; Order 87405727, Fig 02-42

1шт.

52

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Cylinder Head; See Fig 02-19, 02-20

1шт.

53

A77673

GASKET KIT

See Fig 02-17, 02-18

1шт.

A77907

PACKAGE, REPAIR

Engine Block; Not Illustrated; Incl. 54 - 61; If used

1шт.

54

J800455

PISTON ASSY.

See Fig 02-36

4шт.

55

J919053

PISTON PIN

No Longer Available; Order J934047

4шт.

47

J934047

PIN,40mm OD x 82.68mm L

See Fig 02-35 - 02-37

4шт.

56

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

See Fig 02-35 - 02-37

4шт.

57

J804940

BEARING SET

See Fig 02-31

4шт.

58

A77895

THRUST BEARING,KIT

See Fig 02-31

1шт.

59

A77911

SEAL PACKAGE

See Fig 02-40; No Longer Available; Order 87405727, Fig 02-42

1шт.

60

J283333

CYLINDER HEAD GASKET,2.32mm Thk

See Fig 02-19, 02-20

1шт.

61

A77673

GASKET KIT

See Fig 02-17, 02-18

1шт.
