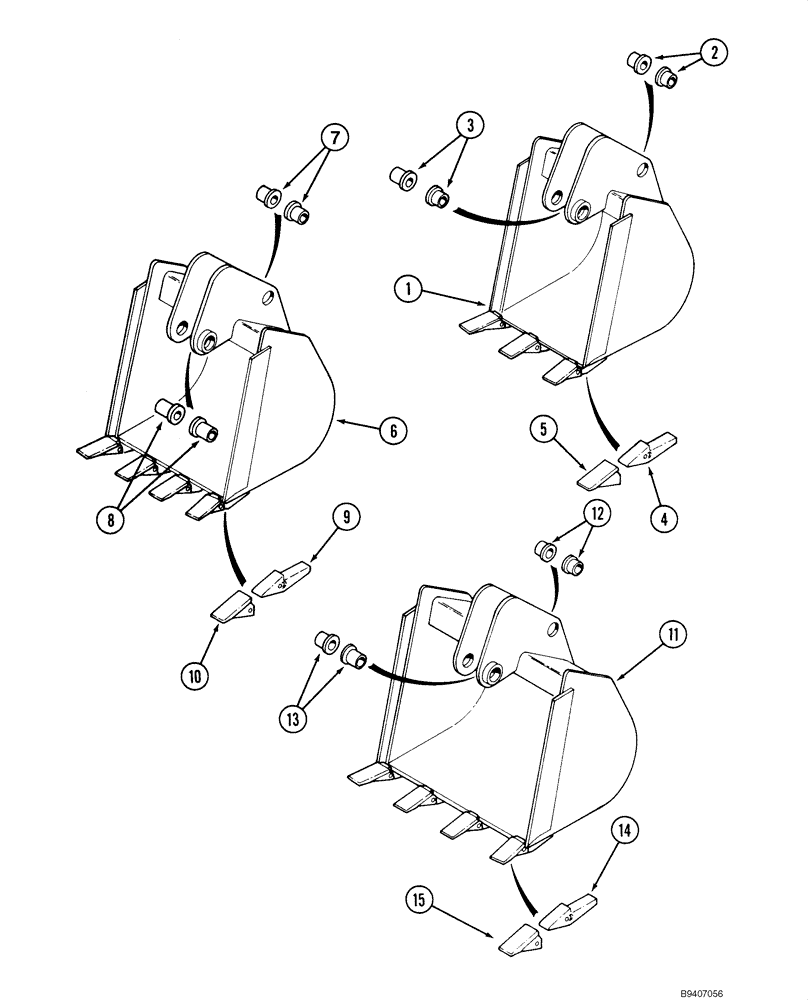

Запчасти Case 1845C (09-74) - BACKHOE - BUCKETS, D100, D100XR (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

1

134114A1

BUCKET

344 mm (13-1/2 in); Incl. 2 - 5; Machinery Item; Order from Machinery Price List

1шт.

2

H50823

BUSHING

2шт.

3

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

2шт.

4

H36657

TOOTH

Shank

3шт.

5

T41166

TOOTH

Point

3шт.

6

134115A1

BUCKET

458 mm (18 in); Incl. 7 - 10; Machinery Item; Order from Machinery Price List

1шт.

7

H50823

BUSHING

2шт.

8

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

2шт.

9

H36657

TOOTH

Shank

4шт.

10

T41166

TOOTH

Point

4шт.

11

134116A1

BUCKET

Bucket, 610 mm (24 in); Incl. 12 - 15; Machinery Item; Order from Machinery Price List

1шт.

12

H50823

BUSHING

2шт.

13

H56184

BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L

2шт.

14

H36657

TOOTH

Shank

4шт.

15

T41166

TOOTH

Point

4шт.
