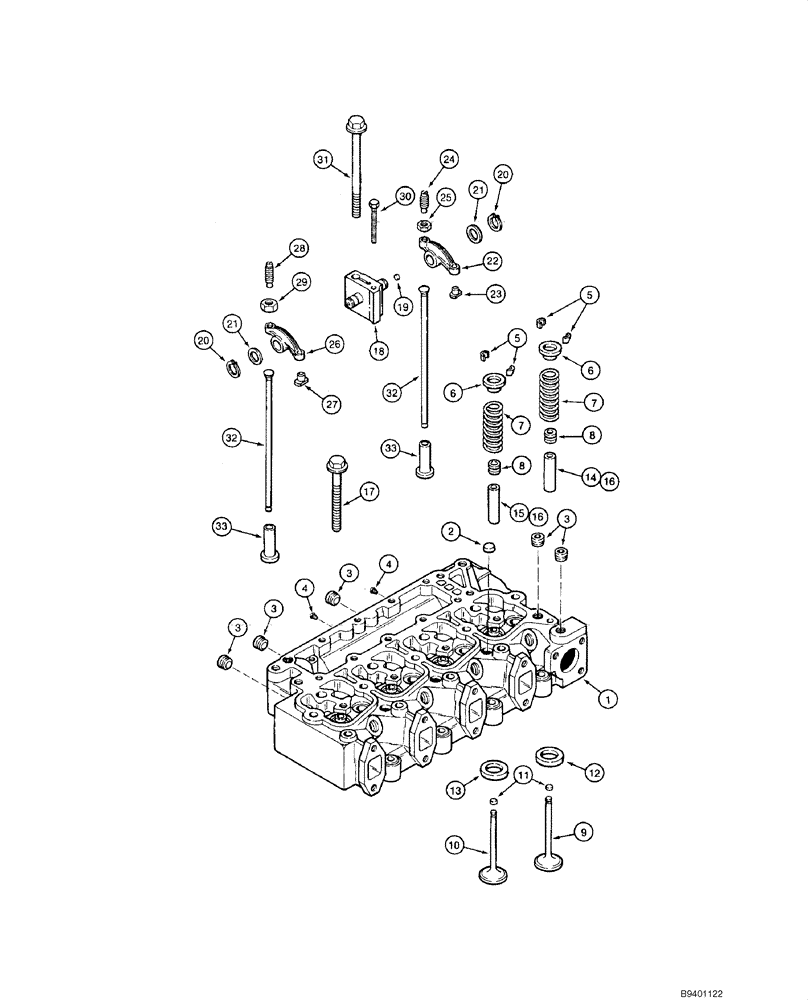

Запчасти Case 1845C (02-22) - CYLINDER HEAD - VALVE MECHANISM, 4-390 ENGINE (02) - ENGINE

JR930913

REMAN-CYLINDER HEAD

For Fuel Injection Nozzles with 7mm Diameter Tip; Engine No. 44566928 - ; Remanufactured; North America Only; Replaces JR920611

1шт.

JC930913

CORE-CYLINDER HEAD

For Fuel Injection Nozzles with 7mm Diameter Tip; Engine No. 44566928 - ; Return Number; Replaces JC905864, JC920611

1шт.

J920611

HEAD (CYLINDER)

For Fuel Injection Nozzles with 7mm Diameter Tip; Engine No. 44566928 - ; With Valves; Incl. 1 - 10; No Longer Available; Order J930913

1шт.

1

J930913

HEAD (CYLINDER)

For Fuel Injection Nozzles with 7mm Diameter Tip; Engine No. 44566928 - ; New; With Valves

1шт.

1

J920005

HEAD (CYLINDER)

For Fuel Injection Nozzles with 7mm Diameter Tip; Engine No. 44566928 - ; Without Valves; Incl. 2; No Longer Available; Order J933419

1шт.

1

J933419

HEAD (CYLINDER)

For Fuel Injection Nozzles with 7mm Diameter Tip; Engine No. 44566928 - ; New; Without Valves; Replaces J920005

1шт.

2

A77783

PLUG

21 mm OD; Expansion; Replaces J902606

3шт.

3

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

Replaces A77429

5шт.

4

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

5

CASJ900250

RETAINER

16шт.

6

J900299

RETAINER

No Longer Available; Order J935038

8шт.

6

J935038

RETAINER

8шт.

7

J900276

VALVE SPRING

No Longer Available; Order J926700

8шт.

7

J926700

VALVE SPRING

8шт.

8

J921640

SEAL

Replaces J901097

8шт.

9

J920867

VALVE

Intake; Replaces J901117

4шт.

10

J920868

VALVE

Exhaust; Replaces J906854

4шт.

11

J280911

WEAR PAD

Service Repair Only; No Longer Available; Order J910412

1шт.

11

J910412

WEAR PAD

1шт.

12

J906854

SEAT, VALVE

Intake; Service Repair Only

4шт.

13

J904105

SEAT, VALVE

Exhaust; Service Repair Only

4шт.

14

J904408

GUIDE

14 mm OD; Intake; Service Repair Only;, Serial Range: Ream-Fit

4шт.

15

J904409

GUIDE

14 mm OD; Exhaust; Service Repair Only;, Serial Range: Ream-Fit

4шт.

16

J906206

GUIDE

11 mm OD; Intake and Exhaust; Service Repair Only;, Serial Range: Ream-Fit

8шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70 mm; Replaces J903938, J918471

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm; Replaces J903939, J918472

10шт.

18

J910814

SUPPORT

Incl. 19; No Longer Available; Order J922488

4шт.

18

J922488

SUPPORT

4шт.

19

J907555

PLUG

1/4-18 PT

1шт.

20

J900242

SNAP RING

8шт.

21

J900245

WASHER

8шт.

22

J910811

ROCKER

Arm Assy; Incl. 23 - 25;

4шт.

23

NSS

NOT SOLD SEPARAT

Insert

1шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

No Longer Available

1шт.

24

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

Order J934086

1шт.

25

425-116

NUT,3/8" - 24, Gr 5

Replaces A77558

1шт.

26

J910810

ROCKER

Arm Assy; Incl. 27 - 29

4шт.

27

NSS

NOT SOLD SEPARAT

Insert

1шт.

28

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

No Longer Available; Order J934086; See Ref 24

1шт.

29

425-116

NUT,3/8" - 24, Gr 5

Replaces A77558

1шт.

30

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

31

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

180 mm; Replaces J903940

4шт.

32

J923262

PUSH ROD

Replaces J904679; No Longer Available; Order J284377

8шт.

32

J284377

PUSH ROD

8шт.

33

J925031

TAPPET

Replaces J907240; No Longer Available; Order J931623

8шт.

33

J931623

TAPPET

8шт.
