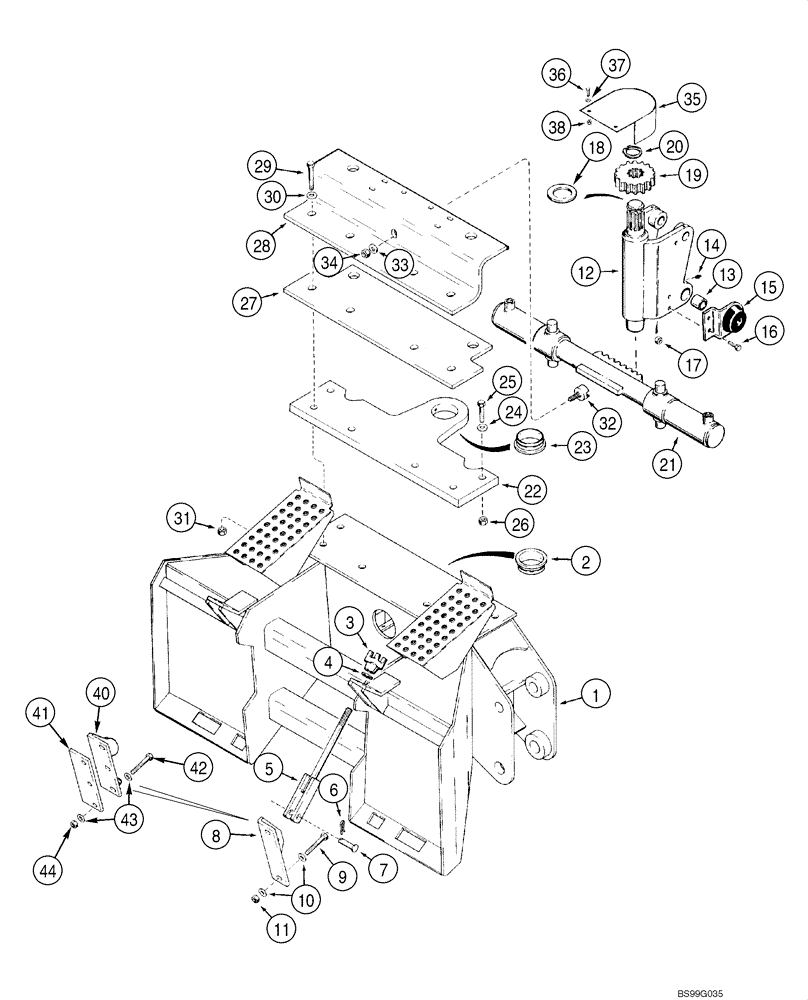

Запчасти Case 1845C (09-69) - BACKHOE FRAME - SWING TOWER, D100, D100XR (NORTH AMERICA), WITH KONTAK OR DUKE VALVES (09) - CHASSIS/ATTACHMENTS

H673647

FRAME

Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Frame

1шт.

2

H434397

BUSHING,70.04mm ID x 89mm OD x 32mm L

1шт.

3

D134787

KNOB

2шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

2шт.

5

H673638

TRUSS ROD

2шт.

6

27-12191

CLEVIS PIN,3/4" x 1.910"

3/4 x 1-3/16

2шт.

7

136-164

COTTER PIN,Int, 5/16" x .120"

2шт.

8

H673639

ANCHOR

No Longer Available, Order 110906A1, 110905A1, Ref 40, 41

2шт.

9

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

Used with H673639, Ref 8

4шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

11

232-4118

NUT,1/2"-13, GC

4шт.

H672641

POST

Swing; Incl. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Tower, Swing

1шт.

13

H56192

BUSHING,28.91mm ID x 36.63mm OD x 44.45mm L

2шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

15

H625756

BRACKET

2шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

17

230-4218

LOCK NUT,1/2"-13, GA

4шт.

18

H434429

BLOCK

1шт.

19

H434489

PINION

Swing

1шт.

20

100-11212

SNAP RING,#212, Ext

2шт.

21

H514125

CYLINDER ASSY.

70 ID x 203 mm strk; Swing; See Fig 08-50; No Longer Available, Order 384865A1

1шт.

21

384865A1

CYLINDER ASSY.

2-3/4 (70) ID x 8 in (203 mm); See Fig 08-69B

1шт.

22

H672652

PLATE

Incl. 23

1шт.

23

H434397

BUSHING,70.04mm ID x 89mm OD x 32mm L

1шт.

24

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

25

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

2шт.

26

232-41112

NUT,3/4"-10, GC

2шт.

27

H434386

LARGE PLATE

PLATE, LARGE

1шт.

28

H433142

LARGE PLATE

PLATE, LARGE

1шт.

29

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

30

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

4шт.

31

232-41112

NUT,3/4"-10, GC

4шт.

32

H434525

GUIDE

1шт.

33

495-11066

WASHER,5/8", SAE

(21/32 x 1-5/16 x 3/32)

1шт.

34

230-47110

LOCK NUT,5/8"-18, GB

1шт.

35

H672647

COVER

1шт.

36

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

37

H426775

WASHER

2шт.

38

230-4215

NUT,5/16"-18, GA

2шт.

39

H675159

NUT ASSY.

Not Illustrated

1шт.

40

110906A1

LARGE PLATE

PLATE, LARGE Tie Rod

1шт.

41

110905A1

LARGE PLATE

PLATE, LARGE Tie Rod

1шт.

42

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

43

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

44

232-4118

NUT,1/2"-13, GC

6шт.
