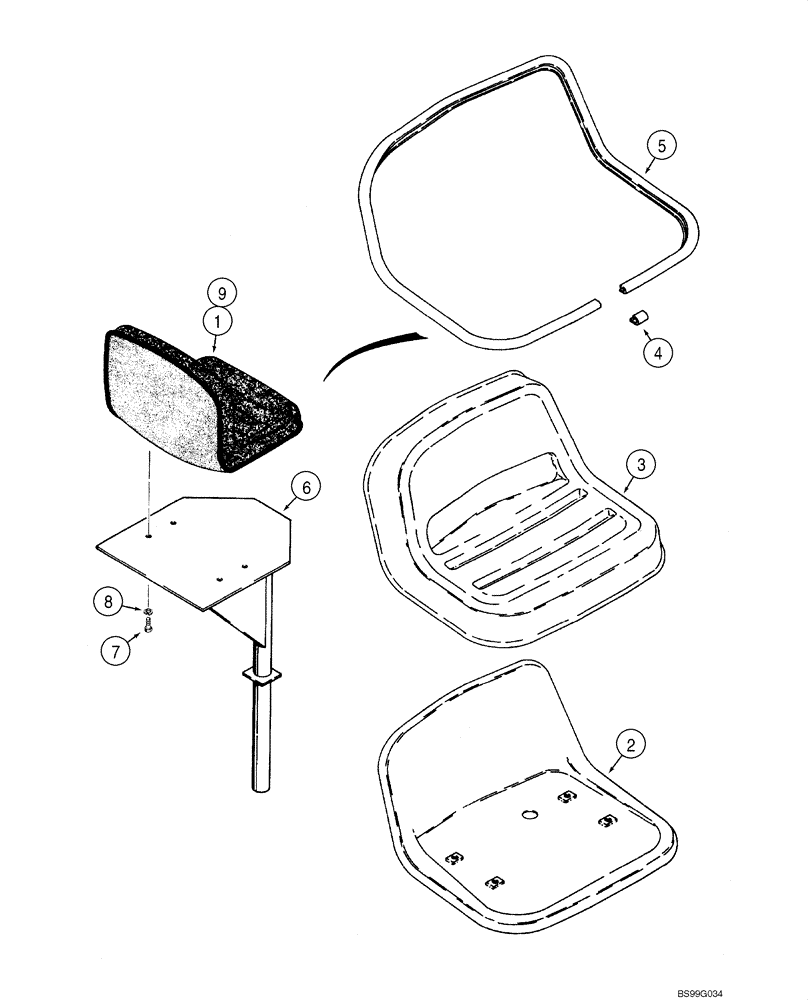

Запчасти Case 1845C (09-67) - BACKHOE - SEAT MOUNTING, D100, D100XR (NORTH AMERICA) (09) - CHASSIS/ATTACHMENTS

1

H436146

SEAT

Brown; Incl. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Seat

1шт.

H429316

SEAT

Kit; Incl. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Cushion, Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Clip

1шт.

5

NSS

NOT SOLD SEPARAT

Trim

1шт.

6

D134779

SUPPORT

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

179332A1

SEAT

Gray; Component Parts Not Serviced Separately; No Longer Available, Order 440454A1

1шт.

9

440454A1

SEAT

Wheat; Component Parts Not Serviced Separately

1шт.
