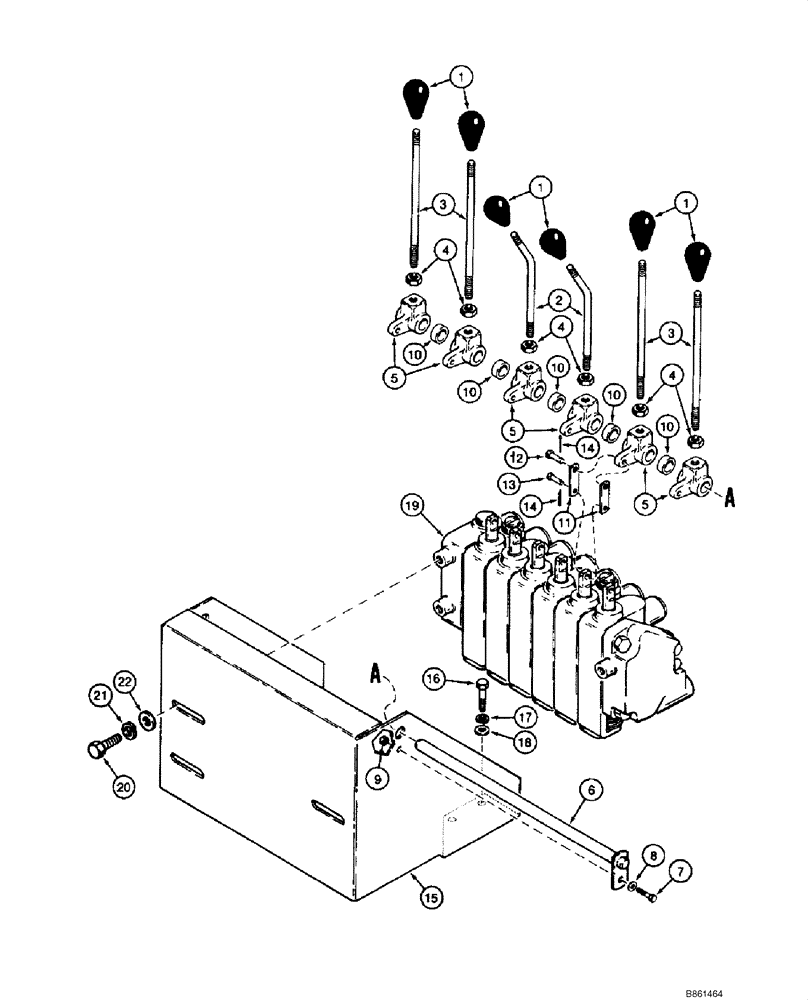

Запчасти Case 1845C (09-65) - BACKHOE - CONTROL TOWER, D100XR (NORTH AMERICA), WITH CESSNA VALVE (09) - CHASSIS/ATTACHMENTS

1

A14051

GRIP

Control Levers

6шт.

2

H191924

LEVER

Stabilizer

2шт.

3

H191916

ROD

Control; Boom, Swing, Dipper, Bucket

4шт.

4

425-146

JAM NUT,3/8" - 16, Gr 5

6шт.

5

H275255

CRANK LEVER

6шт.

6

H669192

ROD

1шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

8

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

9

230-4215

NUT,5/16"-18, GA

1шт.

10

H433565

SPACER

5шт.

11

H185066

DRAG LINK

12шт.

12

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

4 x 3/4

6шт.

13

H35279

AXLE PIN,4.72mm OD x 23.76mm L

3/16 x 57/64

6шт.

14

432-48

COTTER PIN,1/16" x 1/2"

12шт.

15

H428359

CONSOLE

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

19

H513788

LOCK VALVE

Backhoe; See Figure 08-37

1шт.

20

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

3шт.

21

492-11044

LOCK WASHER,7/16"

3шт.

22

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

3шт.
