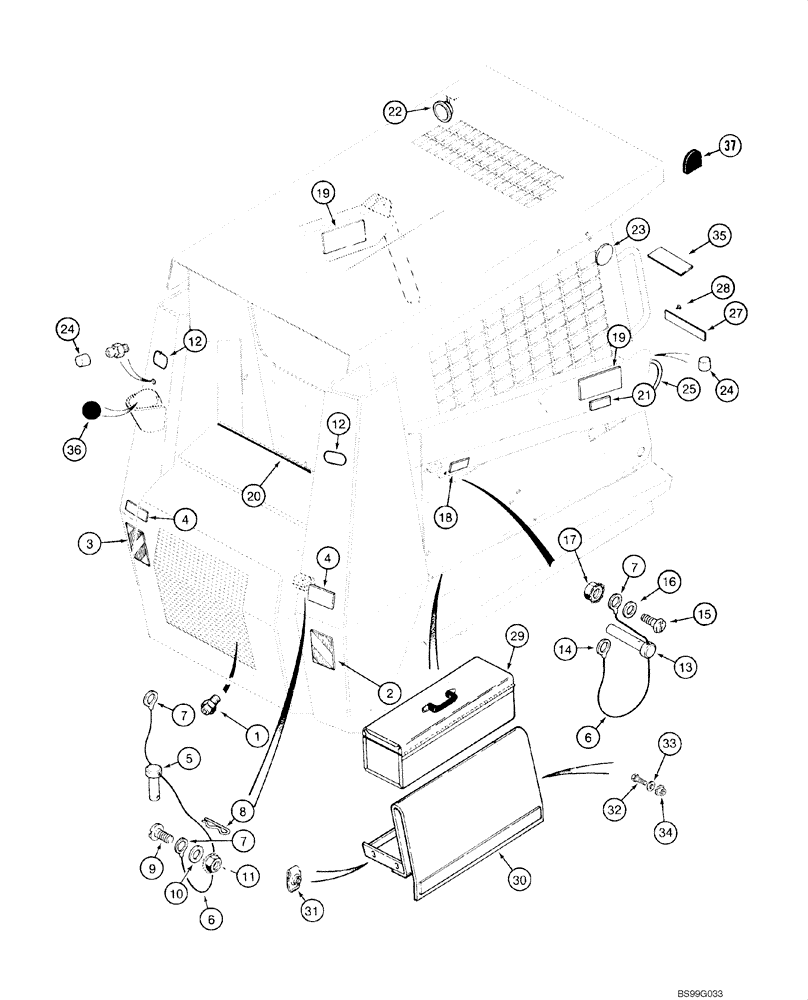

Запчасти Case 1845C (09-64) - SPECIAL PARTS FOR GERMANY - TBG APPROVED (09) - CHASSIS/ATTACHMENTS

1

E98294

PLUG

Oil Drain

1шт.

2

E99427

REFLECTOR

Adhesive Back; RH Side

1шт.

3

E99288

REFLECTOR

Adhesive Back; LH Side

1шт.

4

321-2299

DECAL

Warning Engine Access

1шт.

5

H439276

PIN,12mm OD x 50mm L

1шт.

6

H439278

ELECTRICAL WIRE

WIRE

2шт.

7

223-54

TERMINAL CONNECTOR,10 - 12

3шт.

8

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

1шт.

9

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

1шт.

10

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

11

825-1405

NUT,M5, Cl 8

1шт.

12

H439133

DECAL

Grease Fitting Locator

2шт.

13

H439165

PIN,9.5mm OD x 86mm L

1шт.

14

223-56

TERMINAL CONNECTOR,10 - 12

1шт.

15

473-13112

SCREW,Slotted Flat Hd, 5/16"-18 x 3/4"

1шт.

16

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

18

H439134

DECAL

Warning Support

1шт.

19

321-6181

DECAL

Warning Loader Arm

1шт.

20

D54302

STRIP

700 mm (27-1/2 in); Cut from F42827

2шт.

21

106868A1

DECAL

Warning

1шт.

22

E99967

REAR VIEW MIRROR

Also Used on Italian Models

1шт.

23

321-4046

DECAL

Ear Noise

1шт.

24

E82545

CAP

20шт.

27

NSS

NOT SOLD SEPARAT

Plate; Makers Name

1шт.

28

R44602

RIVET

4шт.

29

109339A1

BOX, TOOL

1шт.

30

H675133

PAD

1шт.

31

H435223

NUT

5/16

2шт.

32

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

33

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

35

D55216

PAD,2" x 9"

1шт.

36

111767A1

DECAL

Red

1шт.

37

124607A1

COVER

2шт.
