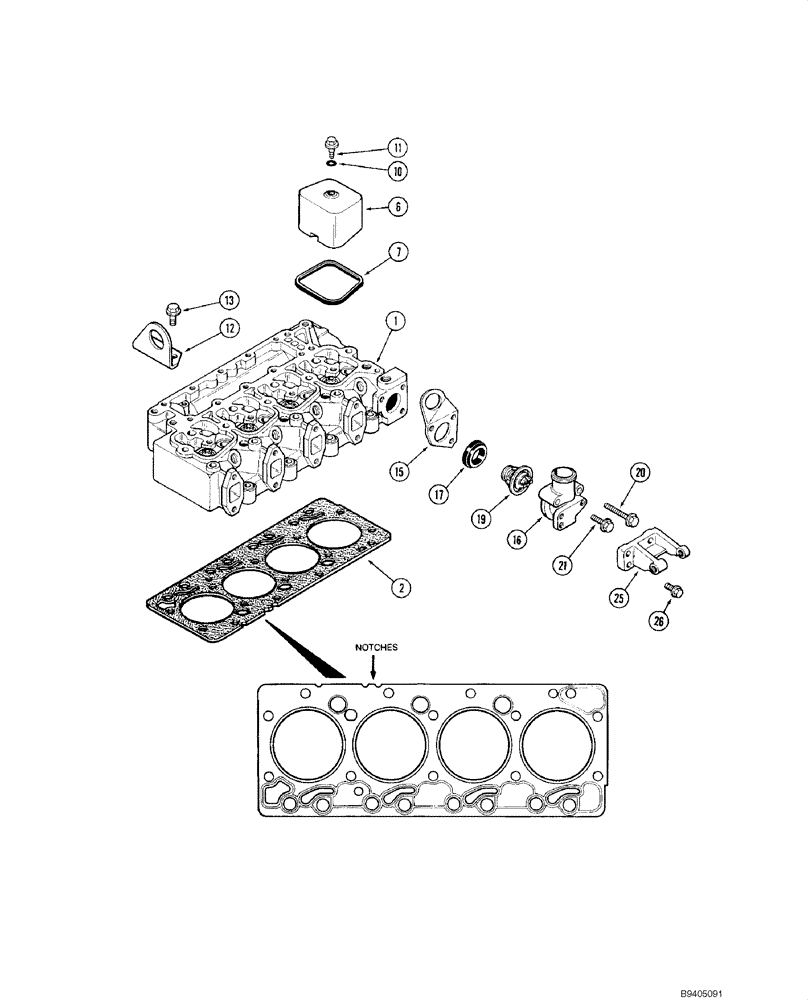

Запчасти Case 1845C (02-19) - CYLINDER HEAD, COVER - THERMOSTAT AND HOUSING, 4-390 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

Cylinder Head; See Figs 02-20 - 02-22

1шт.

2

J921393

GASKET

Standard; Cylinder Head; Replaces J917354, J918302; No Longer Available, Order J283333

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

Standard; Cylinder Head; Replaces J921393

1шт.

2

J921395

CYLINDER HEAD GASKET

0.25 mm; Cylinder Head; Replaces J917355; No Longer Available, Order J283336

1шт.

2

J283336

GASKET

1шт.

2

J921397

GASKET

0.50 mm; Cylinder Head; Replaces J917356, J915721, J907056; No Longer Available, Order J283338

1шт.

2

J283338

GASKET

1шт.

6

J902604

COVER

No Longer Available, Order J928404 and J935449

4шт.

6

J928404

COVER

4шт.

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Used with J928404

4шт.

7

J930906

GASKET

Replaces J902666

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Replaces J282133

4шт.

11

J907049

BOLT,Hex

M8 x 21

4шт.

12

J908118

BRACKET

1шт.

13

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

15

J903757

BRACKET

1шт.

16

J914409

HOUSING

No Longer Available, Order J285102

1шт.

16

J285102

HOUSING

1шт.

A77736

THERMOSTAT

Thermostat; Incl. 17, 19

1шт.

17

J923331

GASKET

Housing; Replaces J903301, J920020

1шт.

19

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

20

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

No Longer Used, Order J926972

2шт.

20

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

M8 x 70 mm; Replaces 845-8070

2шт.

21

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

25

J923387

SUPPORT

Replaces J910713; No Longer Available, Order J287096

1шт.

25

J287096

SUPPORT

1шт.

26

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.
