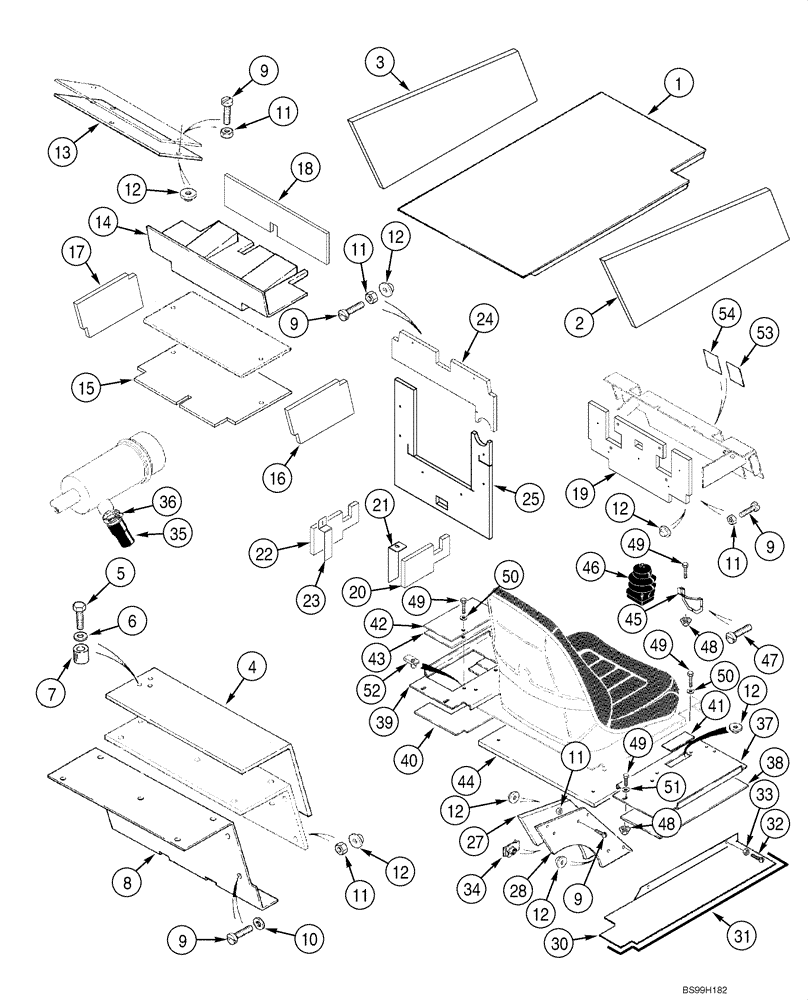

Запчасти Case 1845C (09-40) - NOISE KIT (84DB EEC APPROVED) (09) - CHASSIS/ATTACHMENTS

1

179277A2

PANEL

GLAZED ROPS; Gray

1шт.

2

184965A2

PAD

RH; Gray

1шт.

3

184963A2

PAD

LH; Gray

1шт.

4

179828A2

LINING

Firewall; Gray

1шт.

5

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

3шт.

6

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

3шт.

7

H439161

SPACER

3шт.

8

359267A1

PANEL

Engine Firewall

1шт.

9

840-1540

SCREW,Pan, M5 x 40mm, Cl 4.8

34шт.

10

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

8шт.

11

825-1405

NUT,M5, Cl 8

34шт.

12

E99641

CAP

34шт.

13

298332A1

PANEL

1шт.

14

E99577

MAT

1шт.

15

298333A1

PANEL

1шт.

16

311050A1

PANEL

RH Side; Engine Firewall

1шт.

17

311051A1

PANEL

LH Side

1шт.

18

311049A1

PANEL

Forward

1шт.

19

298330A1

PANEL

Rear Heel Plate

1шт.

20

298630A1

PANEL

Chain; RH

1шт.

21

302129A1

HOLDER

Chain; RH

1шт.

22

298631A1

PANEL

Chain; LH

1шт.

23

302130A1

HOLDER

Chain; LH

1шт.

24

301240A1

PANEL

Door; Upper

1шт.

25

301241A1

PANEL

Door; Lower

1шт.

26

298632A1

PANEL

LH; Not Illustrated

1шт.

27

298335A1

PANEL

RH Side

1шт.

28

298214A1

PANEL

Door Closure Panel

2шт.

29

298232A1

COVER

Lower LH; Not Illustrated

1шт.

30

295147A1

COVER

Lower RH

1шт.

31

309067A1

SEAL

2шт.

32

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

33

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

10шт.

34

H346650

NUT

10шт.

35

E21010

INTAKE AIR HOSE,63.50 mm ID, 76.2 mm ID x 200.00 mm, SAE J200

1шт.

36

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

37

135562A3

LARGE PLATE

PLATE, LARGE RH

1шт.

38

298328A1

PANEL

1шт.

39

135560A2

LARGE PLATE

PLATE, LARGE

1шт.

40

298329A1

PANEL

1шт.

41

H439309

PLUG

2шт.

42

H439233

LARGE PLATE

PLATE, LARGE

1шт.

43

E21059

INSULATOR

1шт.

44

298331A1

PANEL

1шт.

45

303926A1

RETAINER

2шт.

46

303336A1

BOOT

2шт.

47

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

10шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

49

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

50

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

51

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

52

H346650

NUT

2шт.

53

259803A1

DECAL

1шт.

54

360125A1

DECAL

1шт.
