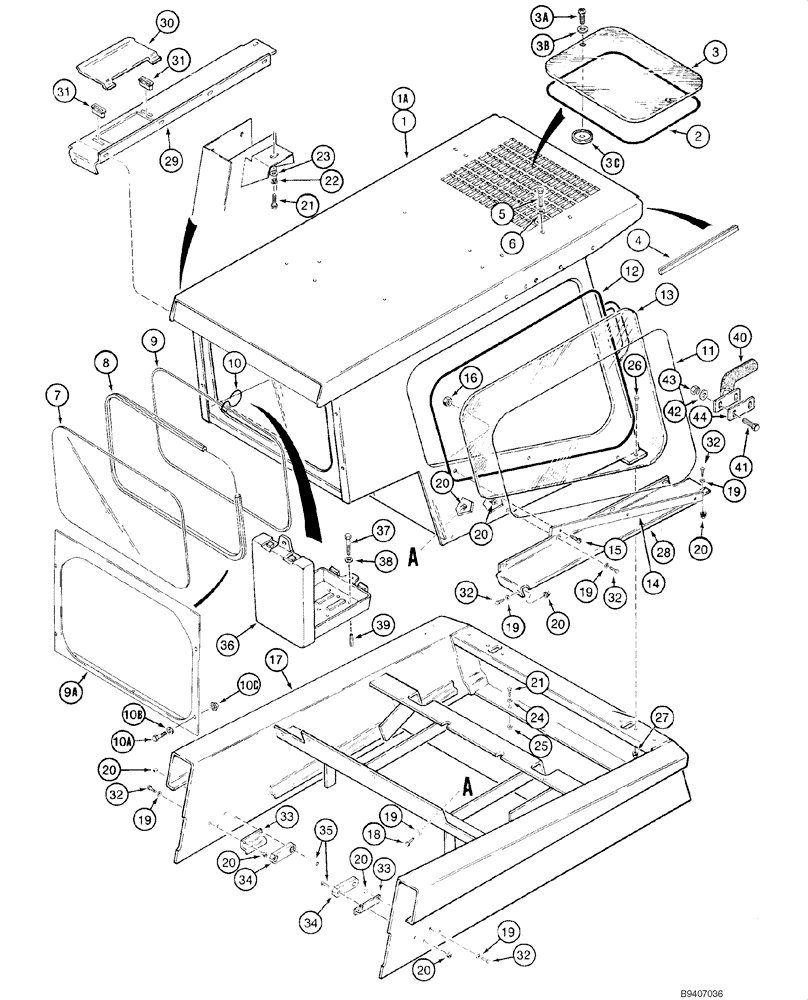

Запчасти Case 1845C (09-37) - FOPS/ROPS AND ROPS - GLAZED (EUROPE) (09) - CHASSIS/ATTACHMENTS

1

135619A1

CAB

Frame; Replaces H674963; Machinery Item

1шт.

1a

135620A1

CAB

Frame; Machinery Item; Not Illustrated

1шт.

2

382086A1

SEALING STRIP

Replaces H439254

1шт.

3

144266A1

GLASS

Replaces H439109

1шт.

3a

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

138007A1

Kit; ROPS; Brown; No Longer Available, Order Components

1шт.

189627A1

Kit; ROPS; Gray; No Longer Available, Order Components

1шт.

138010A1

Kit; FOPS/ROPS; Brown; No Longer Available, Order Components

1шт.

189629A1

Kit; FOPS/ROPS; Gray; No Longer Available, Order Components

1шт.

108171A1

Kit; Conversion; No Longer Available, Order Components

1шт.

3b

103777A1

SEALING WASHER

2шт.

3c

E99641

CAP

2шт.

3d

228139A1

BAND

Not Illustrated

1шт.

4

D60180

STRIP

368 mm (14-1/2 in); Cut from F42827, See Below

2шт.

5

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

Replaces 413-436

1шт.

6

103777A1

SEALING WASHER

1шт.

117737A1

WINDOW

Assy; Incl. 7 - 10C; Rear

1шт.

7

107143A1

GLASS

1шт.

8

E20930

WEATHERSTRIP

Replaces E99025, E99268

1шт.

9

V346008

GASKET

Replaces E99026, E99269

1шт.

9a

117736A1

PANEL

1шт.

10

107996A1

RING

1шт.

10a

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

7шт.

10b

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

7шт.

10c

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

11

Z8560231

SEAL,2243mm L

Replaces RK692079

2шт.

12

RK692078

DOOR SEAL

Replaces E20930, E99273

2шт.

13

107142A1

GLASS

Side

2шт.

14

H439258

BAR

2шт.

15

840-1535

SCREW,Pan, M5 x 35mm, Cl 4.8

6шт.

16

825-1405

NUT,M5, Cl 8

6шт.

17

H673530

FRAME

1шт.

F42827

TRIM,2946.4mm L

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

19

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

19шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

23шт.

21

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

23

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

25

232-4118

NUT,1/2"-13, GC

2шт.

26

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

27

231-5146

FLANGE NUT,3/8"-16

4шт.

28

143164A1

PANEL

RH; Replaces D127006

1шт.

29

H437936

PANEL

LH

1шт.

30

D130135

COVER

1шт.

31

D127335

CATCH

2шт.

32

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

16шт.

33

D125060

BRACKET

2шт.

34

H438147

SPACER

2шт.

35

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

36

R46464

CASE

Manual

1шт.

36a

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; Not Illustrated

1шт.

37

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Replaces 413-420

3шт.

38

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

1/4 x 1/2 x 3/64

3шт.

39

H439161

SPACER

Replaces 413-420

3шт.

H674454

SET

Incl. 40 - 44; Incl. Instructions

1шт.

40

NSS

NOT SOLD SEPARAT

Armrest; Incl. 40 - 44

2шт.

41

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

42

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16"), Incl. Instructions

4шт.

43

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

44

H437790

LARGE PLATE

PLATE, LARGE

2шт.

45

107037A1

SEAL

Not Illustrated

2шт.
