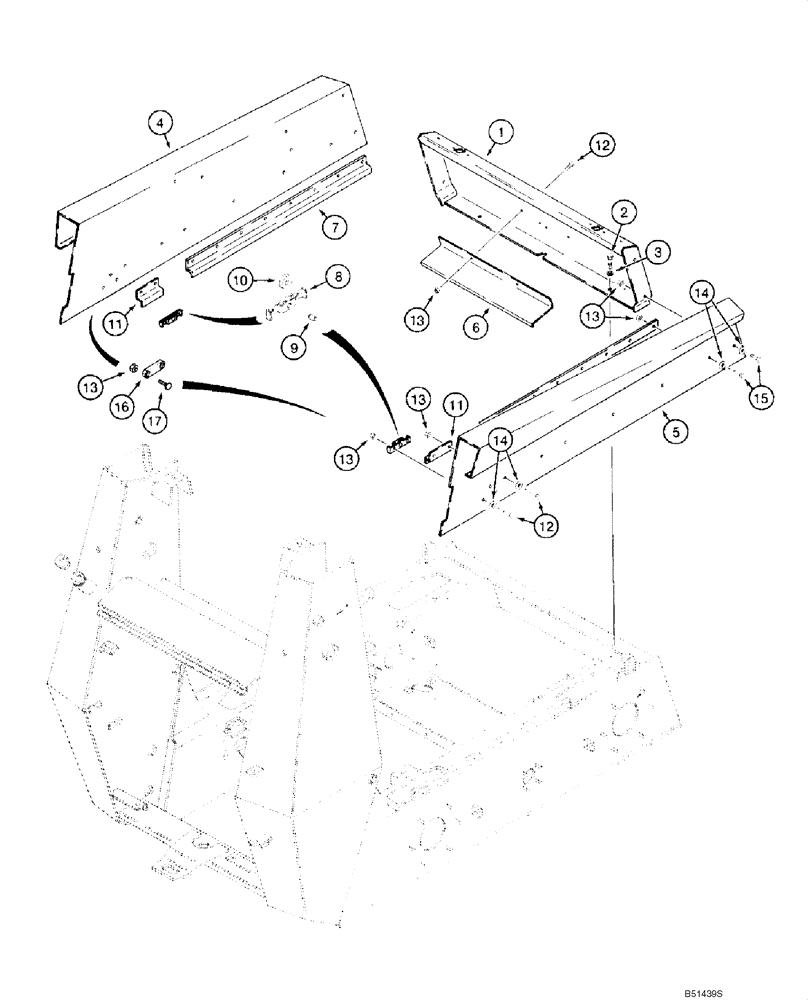

Запчасти Case 1845C (09-35) - FENDERS - SUPPORT, FRONT, - JAF0040227 (09) - CHASSIS/ATTACHMENTS

1

D127029

PANEL

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

D125044

FENDER

LH

1шт.

5

D125043

FENDER

RH

1шт.

6

D126892

BRACKET

If Used

1шт.

7

D125061

BRACKET

2шт.

8

D125056

BRACKET

Incl. 9, 10; No Longer Available, Order H438147

2шт.

9

D125014

PIN

1шт.

10

D124143

ROLLER

1шт.

11

D125060

BRACKET

2шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

18-20шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22-24шт.

14

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

22-24шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

16

H438147

SPACER

If Used

2шт.

17

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.
