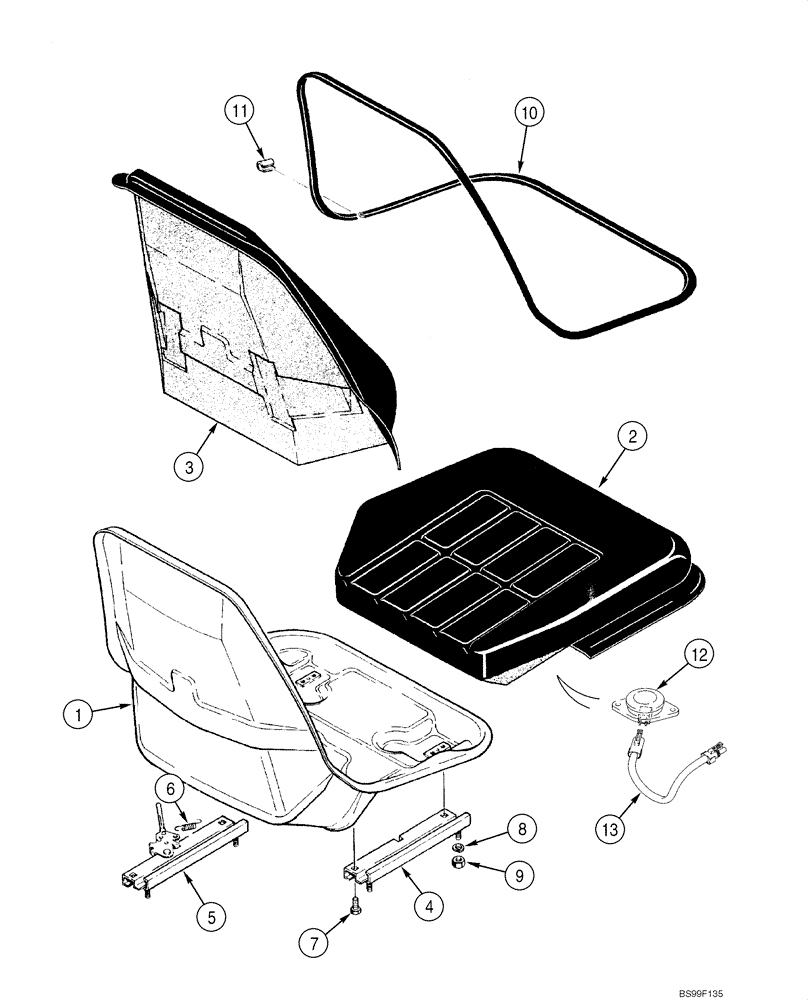

Запчасти Case 1845C (09-29) - SEAT - NON-SUSPENSION (09) - CHASSIS/ATTACHMENTS

D124515

SEAT ASSY.

Incl. 1 - 11; Brown

1шт.

178763A1

SEAT

Incl. 1 - 11; Grey; North America Only

1шт.

179330A1

SEAT

Incl. 1 - 11; Black; Europe Only; See Fig 09-20

1шт.

1

NSS

NOT SOLD SEPARAT

Shell

1шт.

2

N8462

CUSHION

Brown

1шт.

2

190875A1

CUSHION, SEAT

Grey

1шт.

3

N8461

CUSHION

Kit; Brown

1шт.

3

190874A1

BACKREST COVER

Grey

1шт.

4

N13607

ADJUSTER

RH

1шт.

N13606

ADJUSTER

LH; Incl. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Slide

1шт.

6

D56889

SPRING

No Longer Used, Order L35503

1шт.

6

L35503

SPRING

Replaces D56889

1шт.

7

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

8

492-11031

LOCK WASHER,5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

N14614

GASKET

No Longer Available, Order 176924A1

1шт.

10

176924A1

SET OF PARTS

Trim; Replaces N14614

1шт.

11

NSS

NOT SOLD SEPARAT

Clip; Order N7802

1шт.

308306A1

SEAT

Grey; Component Parts Not Available at Time of Printing; North America and Europe; Incl. 242306A2; Not Illustrated; No Longer Available, Order 400680A1

1шт.

11

400680A1

SEAT

Wheat; Incl. 242306A2; Incl. 11A; Not Illustrated

1шт.

11a

242306A2

SWITCH

Operator Presence

1шт.

12

242306A2

SWITCH

Operator Presence

1шт.

13

302137A2

HARNESS

Used with 308306A1

1шт.

345-44

ADHESIVE

Not Illustrated

1шт.

N7802

CLIP

Kit; Incl. Ref 11 Clip and (6) Additional Narrow Clips

1шт.
