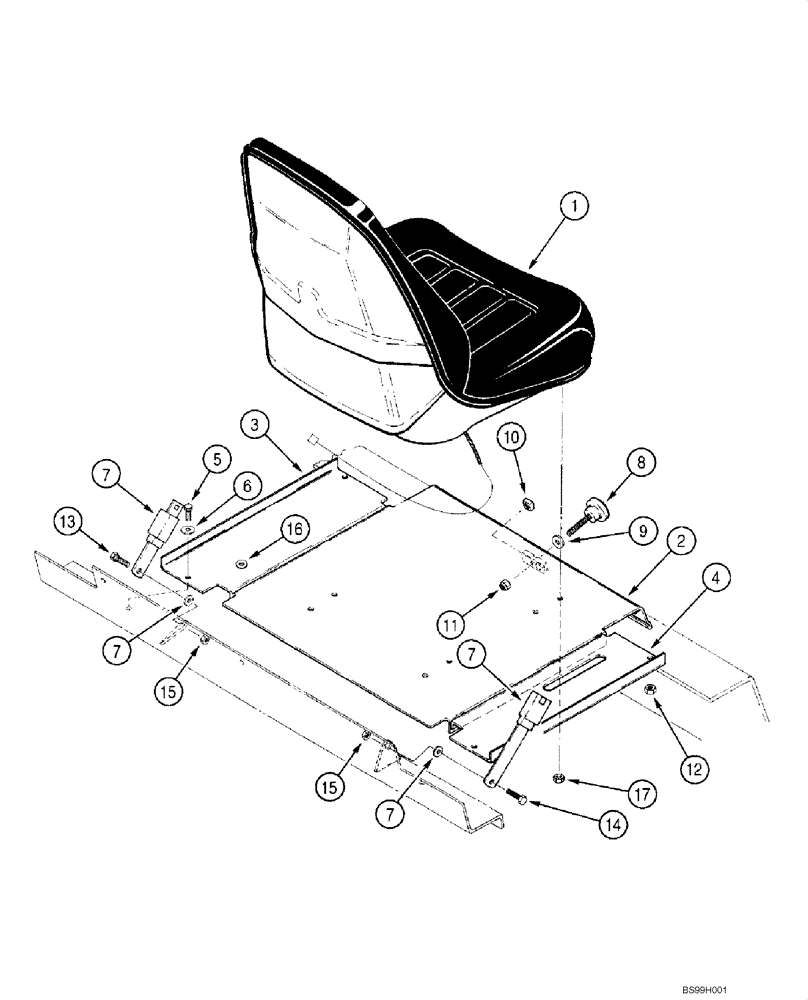

Запчасти Case 1845C (09-27) - SEAT, MOUNTING - SUSPENSION (09) - CHASSIS/ATTACHMENTS

1

302139A2

SEAT

Deluxe; Component Parts Not Serviced Separately

1шт.

2

297883A2

LARGE PLATE

PLATE, LARGE

1шт.

3

135559A2

COVER

LH; North American Models, JAF0238056 -

1шт.

4

135558A2

COVER

RH; North American Models, JAF0238056 -

1шт.

5

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

North American Models, JAF0238056 -

4шт.

6

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

North American Models, JAF0238056 -; Replaces H426775

4шт.

7

249116A1

SAFETY BELT ,50.80 mm W

Retractable

1шт.

8

D133068

KNOB

1шт.

9

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

10

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

11

232-4116

NUT,3/8"-16, GC

1шт.

12

231-5146

FLANGE NUT,3/8"-16

North American Models, JAF0238056 -

2шт.

12

832-41308

NUT,M8 x 1.25, Cl 10

European Models

2шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

232-4116

NUT,3/8"-16, GC

2шт.

16

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

1шт.

17

832-41308

NUT,M8 x 1.25, Cl 10

4шт.
