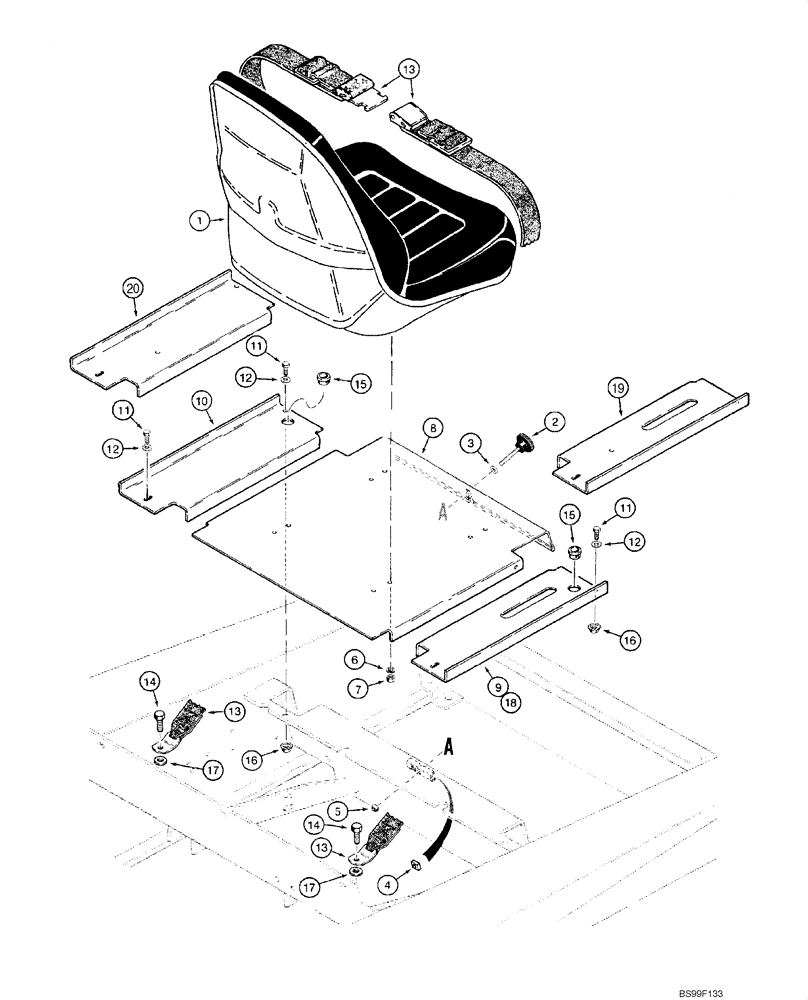

Запчасти Case 1845C (09-23) - SEAT, MOUNTING - NON-SUSPENSION (NORTH AMERICA), JAF0040228 - (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Standard Seat Assy; Incl. 6, 7; See Fig 09-29

1шт.

2

D133068

KNOB

1шт.

3

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

1шт.

4

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

5

232-4116

NUT,3/8"-16, GC

1шт.

6

492-11031

LOCK WASHER,5/16"

4шт.

7

425-105

NUT,5/16"-18, G5

4шт.

8

297883A2

LARGE PLATE

PLATE, LARGE Replaces H435514

1шт.

D137009

COVER

Incl. 9, 9A; RH; No Longer Available, Order H437059, Ref 18; 321-4470, Ref 9A

1шт.

9

D131901

PANEL

RH; No Longer Available, Order H437059, Ref 18; 321-4470, Ref 9A

1шт.

9a

321-4470

DECAL

Slow to Fast; Not Illustrated; See Fig 09-48

1шт.

10

D131900

PANEL

LH; Models with Dual Seat Bars

1шт.

11

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

12

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

Replaces H426775

4шт.

13

D133868

SAFETY BELT ,2.00" W

If Used

1шт.

13

H438265

SAFETY BELT

3 Inch Wide, If Used

1шт.

14

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

15

F64486

GROMMET

3/4 ID; Models with Dual Seat Bars

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

17

495-21069

WASHER,5/8"

(11/16 x 1-3/4 x 9/64); Used with H438265

2шт.

18

H437059

COVER

RH; Models with Dual Seat Bars

1шт.

19

135558A1

COVER

RH; Models with Single Seat Bar

1шт.

20

135559A1

COVER

LH; Models with Single Seat Bar

1шт.
