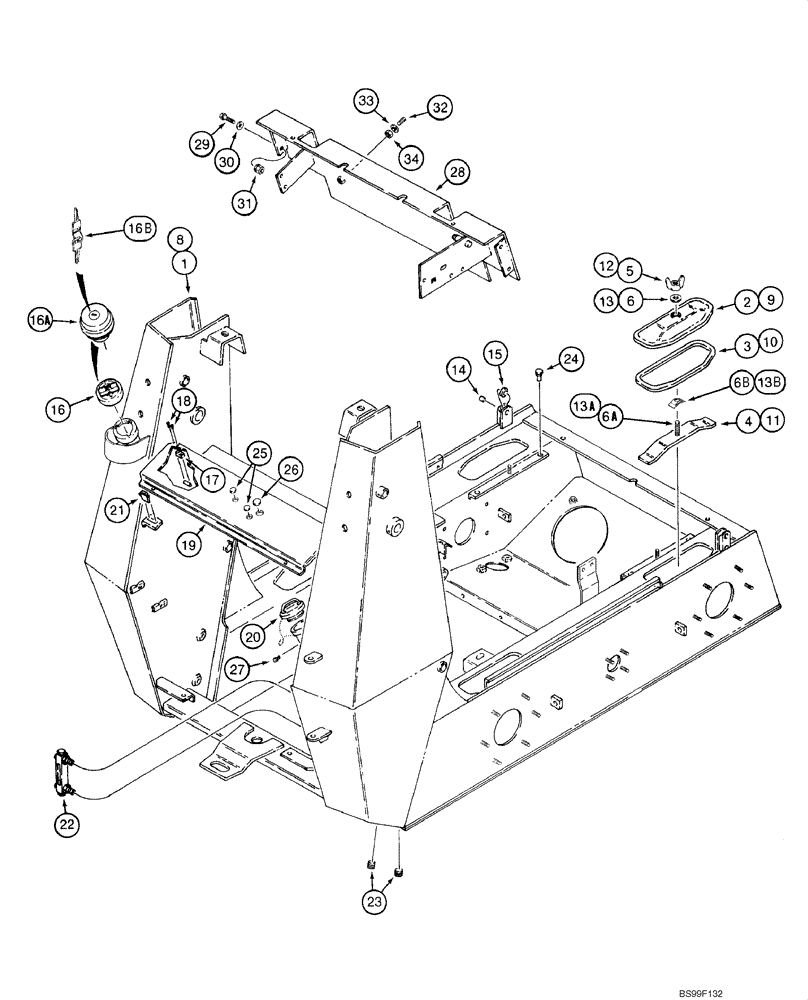

Запчасти Case 1845C (09-21) - CHASSIS (09) - CHASSIS/ATTACHMENTS

1

182441A1

CHASSIS

Incl. 2 - 6; - JAF0041367; Replaces H673390

1шт.

2

H438173

PLATE

Replaces H435400

4шт.

3

D125759

GASKET,7.87mm Thk

4шт.

4

D133239

BRACKET

No Longer Available; Order H437933

4шт.

4

H437933

RETAINER

Replaces D133239

4шт.

5

129-410

WING NUT,3/8"-16

4шт.

6

D70868

WASHER,9.53mm ID x 19.05mm OD x 3.05mm Thk

3/8

4шт.

6a

111-381

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G2

4шт.

6b

H437934

NUT,Flat, 3/8"-16

4шт.

8

190865A1

FRAME ASSY

Incl. 9 - 13; JAF0041368 - ; Replaces H673733, 182438A1

1шт.

H674475

COVER

Incl. 9 - 13; Not Available as an Assembly Order Components

4шт.

9

H438173

PLATE

1шт.

10

D125759

GASKET,7.87mm Thk

1шт.

11

H437933

RETAINER

1шт.

12

129-410

WING NUT,3/8"-16

1шт.

13

D70868

WASHER,9.53mm ID x 19.05mm OD x 3.05mm Thk

3/8

1шт.

13a

111-381

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 3/4", G2

1шт.

13b

H437934

NUT,Flat, 3/8"-16

1шт.

14

H436494

PIN,12.7mm OD x 18mm L

2шт.

15

D124143

ROLLER

2шт.

16

H436887

CAP

Replaces A51390, D93757; Used with 190865A1; North America Only; Units With A 63.5 mm (2.5 in) Fuel Cap

1шт.

16a

108925A1

FILLER CAP

Incl. 16B; Used with 190865A1; North America and Europe; Units With A 63.5 mm (2.5 in) Fuel Cap

1шт.

16b

NSS

NOT SOLD SEPARAT

Key

2шт.

16c

D135098

CAP

Used with 182441A1; Not Illustrated; Units With A 114.3 mm (4.5 Inch) Fuel Cap

1шт.

17

D131992

CLIP

2шт.

18

151-525

RIVET,Pop, 1/8" x .275"

1/8 x 1/4

4шт.

D137052

PANEL

Kit; Incl. 19; Also Incl. Decals, See Fig 09-47

1шт.

19

299226A1

PANEL

Replaces D137353

1шт.

20

D93981

FILLER CAP

- JAF0041367

1шт.

20

257448A1

CAP

JAF0041368 - ; Replaces H674463

1шт.

21

D127335

CATCH

2шт.

22

H435669

GAUGE

1шт.

23

221-846

PLUG,Hex Soc, 1"-11 1/2

1 PT; No Longer Used, Order 217-474

4шт.

23

591780

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

1 PT; Replaces 221-846

4шт.

24

A161780

BUMPER

4шт.

25

353-401

PLUG,Dome, .312" hole, Nylon

2шт.

26

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

27

N8796

PLUG

- JAF0041367

1шт.

28

H673138

PANEL

Heel Plate; - JAF0040227

1шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- JAF0040227

4шт.

30

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

- JAF0040227; Replaces H426775

4шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

- JAF0040227

4шт.

32

83-33832

SET SCREW,Hex Soc, 3/8"-16 x 2"

fl pt

4шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

34

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.
