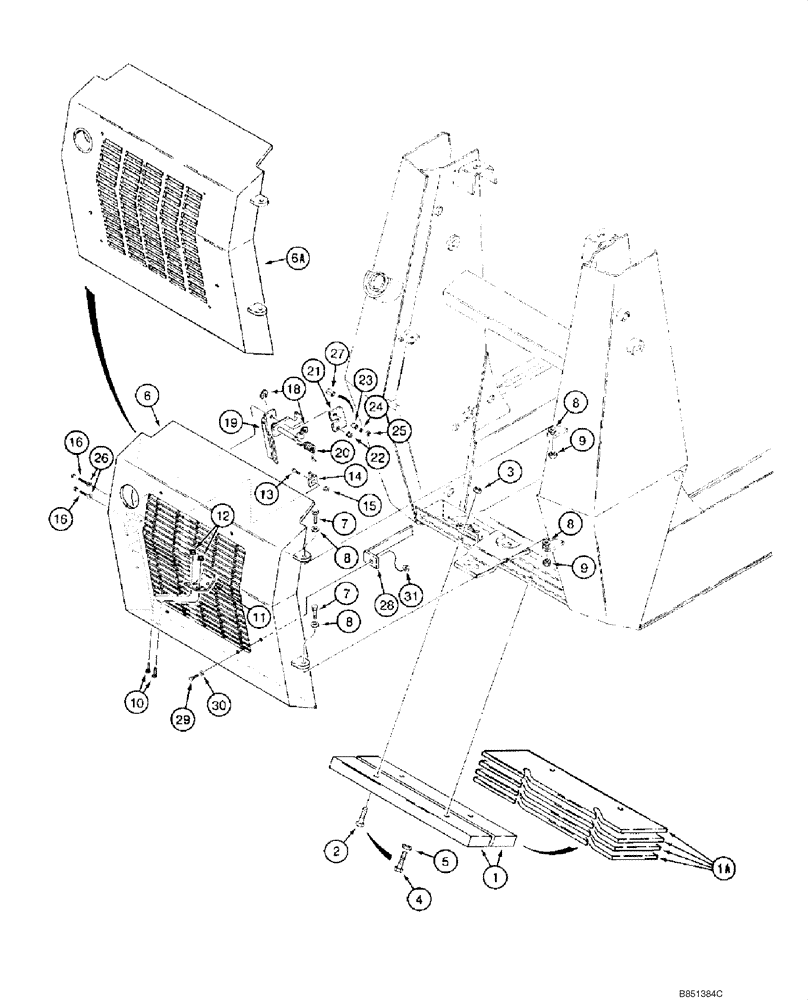

Запчасти Case 1845C (09-20) - COUNTERWEIGHTS, REAR - DOOR, REAR SWING-OUT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D134463
WEIGHT
23 kg (50 lb); No Longer Available, Order 108380A1
2шт.
1a
108380A1
WEIGHT
11 kg (25 lb); Order from Machinery Price List; Replaces D134463
4шт.
2
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
4шт.
3
425-1010
NUT,5/8"-11, G5
4шт.
4
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
4шт.
5
H274894
WASHER
4шт.
6
D131916
DOOR
No Longer Available; Order H673388; - JAF0016238
1шт.
6
H672900
DOOR
No Longer Available; Order H673388; JAF0016239 -
1шт.
6a
H673388
DOOR
No Longer Available; Order 228259A2
1шт.
6a
228259A2
DOOR ASSY.
Rear; Replaces D131916, H672900, H673388
1шт.
7
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
2шт.
8
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 3/32"), Replaces 195-533
4шт.
9
232-4118
NUT,1/2"-13, GC
2шт.
10
411-620
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
Replaces 111-319
2шт.
11
D128034
BRACKET
Rear Door; Lower
1шт.
12
231-5146
FLANGE NUT,3/8"-16
2шт.
13
411-516
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
1шт.
14
D124776
BRACKET
1шт.
15
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
16
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
2шт.
18
D143416
CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk
2шт.
19
D131975
LATCH
Rear Door
1шт.
20
D132020
SPRING
1шт.
21
D128032
PLATE
Used with D131916, H672900; For Service Order R46493
1шт.
22
231-5146
FLANGE NUT,3/8"-16
Used with D131916, H672900
2шт.
23
D76209
SPACER
Used with D131916, H672900; For Service Order R46493
1шт.
24
492-11038
LOCK WASHER,3/8"
Used with D131916, H672900
1шт.
25
425-106
NUT,3/8"-16, Cl 5
Used with D131916, H672900
1шт.
26
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16")
2шт.
27
R46493
SPACER,0.406" ID x 0.625" OD x 0.850" Thk
Used with D131916, H672900
1шт.
28
H437058
ANGLE
1шт.
29
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
30
496-21041
WASHER,13/32" x 13/16" x .089", HDN
1шт.
31
231-5146
FLANGE NUT,3/8"-16
1шт.
Выбрано товаров: 34
