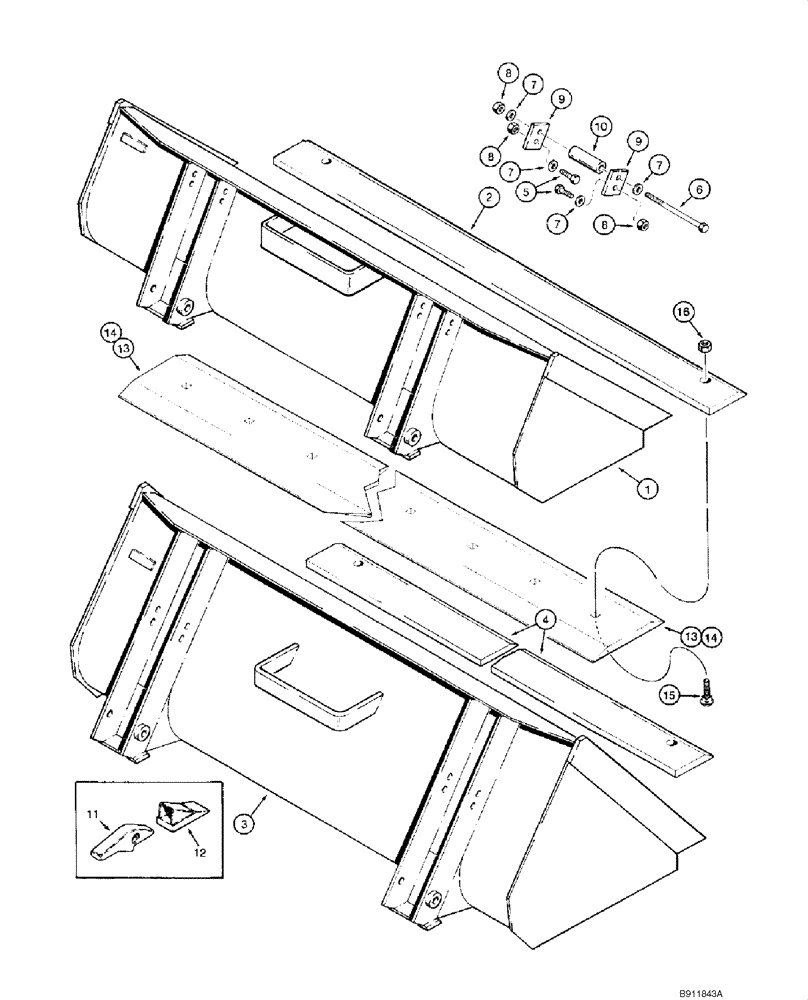

Запчасти Case 1845C (09-14) - BUCKETS - LOADER (PINNED COUPLER), JAF0041368 - (09) - CHASSIS/ATTACHMENTS

H674902

Dirt Bucket, 1600 mm (63 in); Incl. 1, 2; Order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

H438542

EDGE, CUTTING

63"

1шт.

H674903

Dirt Bucket, 1854 mm (73 in); Incl. 1, 2; Order from Machinery Price List

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

H438919

EDGE, CUTTING

73"

1шт.

H674904

Utility Bucket, 1600 mm (63 in); Incl. 3, 4; Order from Machinery Price List

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket

1шт.

4

H438542

EDGE, CUTTING

63"

1шт.

H674905

Utility Bucket, 1854 mm (73 in); Incl. 3, 4; Order from Machinery Price List

1шт.

3

NSS

NOT SOLD SEPARAT

Bucket

1шт.

4

H438919

EDGE, CUTTING

73"

1шт.

5

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

Replaces 113-2618

4шт.

6

426-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 8

2шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

16.7 x 33.3 x 3.4; Replaces H426809

8шт.

8

429-1010

NUT,5/8"-11, G8

6шт.

9

H436093

PLATE

4шт.

10

H436092

PIN,25.4mm OD x 115.25mm L

2шт.

T40472

TOOTH

Incl. 11, 12; No Longer Available, Order T41165, T41166

8шт.

11

T41165

TOOTH

Shank

1шт.

12

T41166

TOOTH

Point

1шт.

13

H439028

EDGE, CUTTING

152 mm (6 in) wide; Used with H674902, H674904

1шт.

14

H439029

EDGE, CUTTING

152 mm (6 in) wide; Used with H674903, H674905

1шт.

15

420-21036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

9-12шт.

16

329-1010

NUT,5/8"-11, G8

9-12шт.
