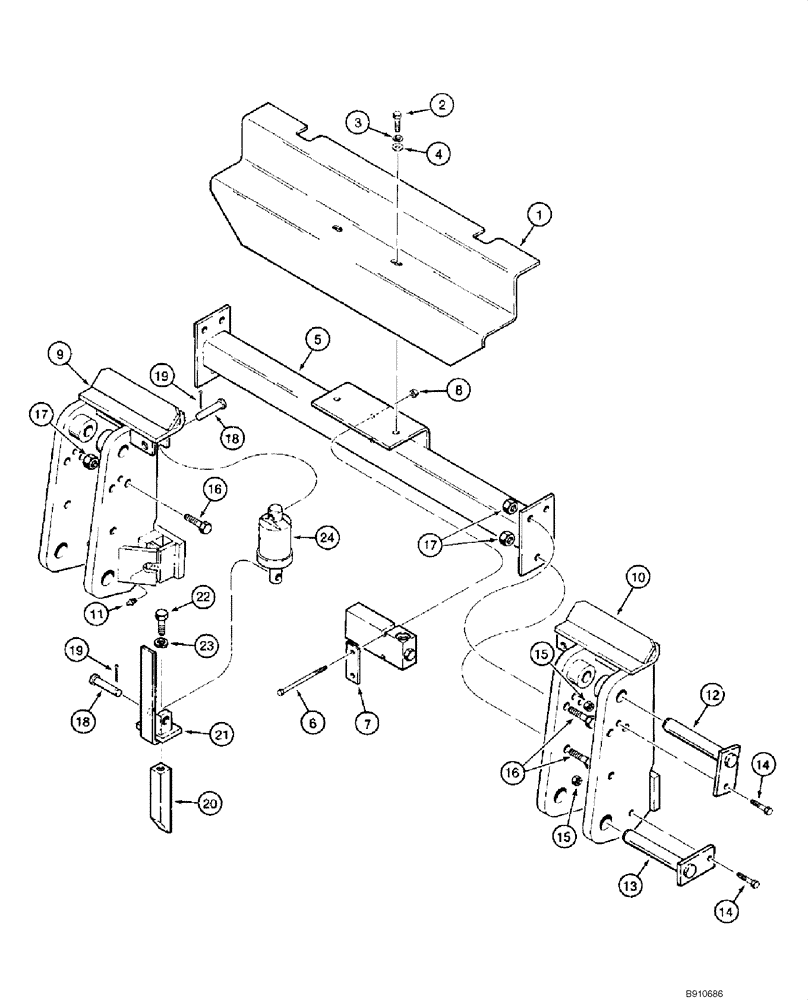

Запчасти Case 1845C (09-08) - COUPLER, HYDRAULIC, JAF0041711 - (09) - CHASSIS/ATTACHMENTS

1

H436047

COVER

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

5

H673119

TUBE,828 mm L

1шт.

6

413-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

2шт.

7

H435877

BAR

1шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

H674806

COUPLING, BREAK AWAY

LH

1шт.

10

H674805

COUPLING, BREAK AWAY

RH

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

No Longer Used, Order 219-86

2шт.

11

219-86

LUBE NIPPLE,1/8" NPTF

Replaces 219-1

2шт.

12

H673520

PIN

Upper

2шт.

13

H673534

LARGE PIN,31.75mm OD x 158mm L

PIN, LARGE Lower

2шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

15

232-4116

NUT,3/8"-16, GC

4шт.

16

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

17

232-4118

NUT,1/2"-13, GC

6шт.

18

H435500

CLEVIS PIN

4шт.

19

432-816

COTTER PIN,1/8" x 1"

4шт.

20

H435487

WEDGE

2шт.

21

H673120

CLEVIS

2шт.

22

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

24

H673117

CYLINDER

Component Parts Not Serviced Separately

2шт.
