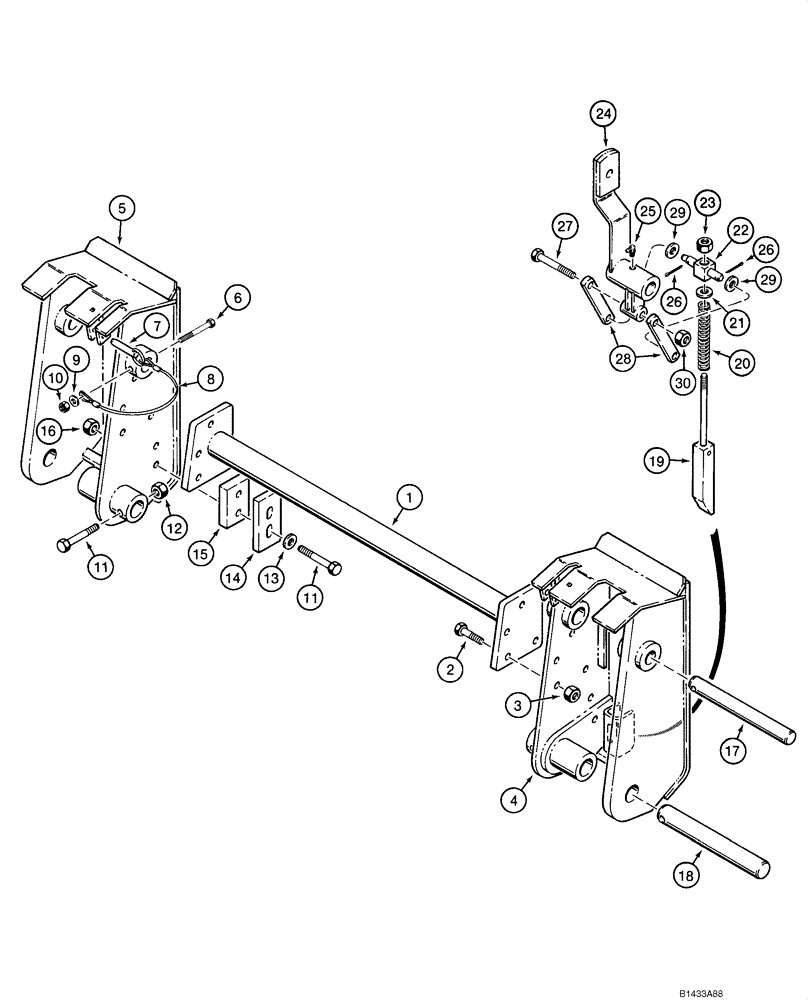

Запчасти Case 1845C (09-04) - CASE COUPLER - INLINE LEVER, - JAF0041367 (09) - CHASSIS/ATTACHMENTS

1

D138721

TUBE

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

3

230-4218

LOCK NUT,1/2"-13, GA

8шт.

4

H673042

FRAME

Coupler, Hydr.; RH; Replaces H673078

1шт.

5

H673041

FRAME

Coupler, Hydr.; LH; Replaces H673077

1шт.

6

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

Replaces 113-2285

2шт.

7

H435491

PIN

8 x 2

2шт.

8

L78786

CABLE RETAINER

2шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

10

232-4116

NUT,3/8"-16, GC

2шт.

11

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

6шт.

12

230-4218

LOCK NUT,1/2"-13, GA

2шт.

13

H274894

WASHER

4шт.

14

H435348

PLATE

2шт.

15

H435347

PLATE

2шт.

16

232-4118

NUT,1/2"-13, GC

4шт.

17

D132325

PIN,25.4mm OD x 228mm L

2шт.

18

D137445

PIN,31.75mm OD x 235mm L

2шт.

19

H673145

WEDGE

2шт.

20

D124197

SPRING

2шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Replaces 195-533

1шт.

22

D138691

BLOCK

2шт.

H672980

KIT

Coupler; Incl. 19 - 31

1шт.

23

230-4218

LOCK NUT,1/2"-13, GA

2шт.

24

H672828

LEVER

2шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

26

432-610

COTTER PIN,3/32" x 5/8"

4шт.

27

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

28

D138690

LINK

4шт.

29

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Replaces 195-533

4шт.

30

230-4218

LOCK NUT,1/2"-13, GA

2шт.

31

D138956

BLOCK

Not Illustrated

2шт.

H672980

KIT

Coupler; Incl. 19 - 31

1шт.
