(02-14) - MANIFOLDS, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483

Запчасти Case 1845C (02-14) - MANIFOLDS, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (02) - ENGINE

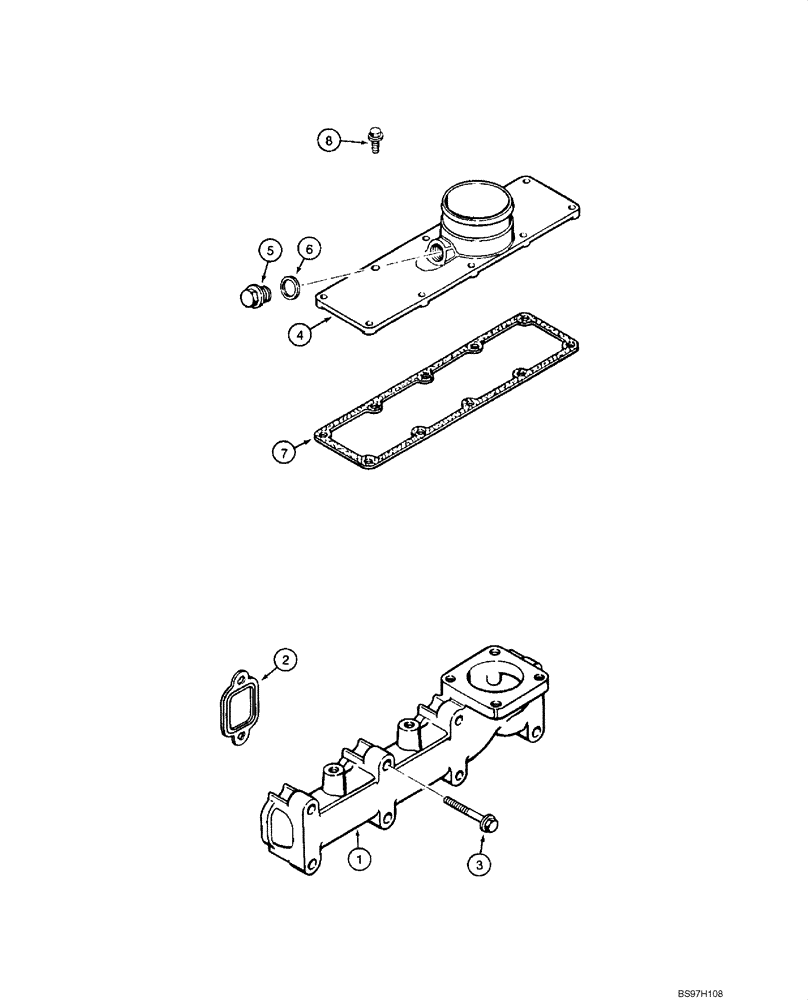

Схема запчастей Case 1845C - (02-14) - MANIFOLDS, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (02) - ENGINE
1
4
5
7
2
6
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J901223

MANIFOLD

1шт.

2

J927154

GASKET,0.38mm Thk

Replaces J905443

4шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

Replaces J930249

8шт.

A77415

COVER

Incl. 4 - 6

1шт.

4

J904340

COVER

1шт.

5

J907185

PLUG

1шт.

6

J906773

WASHER

1шт.

7

J938153

MANIFOLD GASKET,0.8mm Thk

Replaces J931605

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

10шт.
