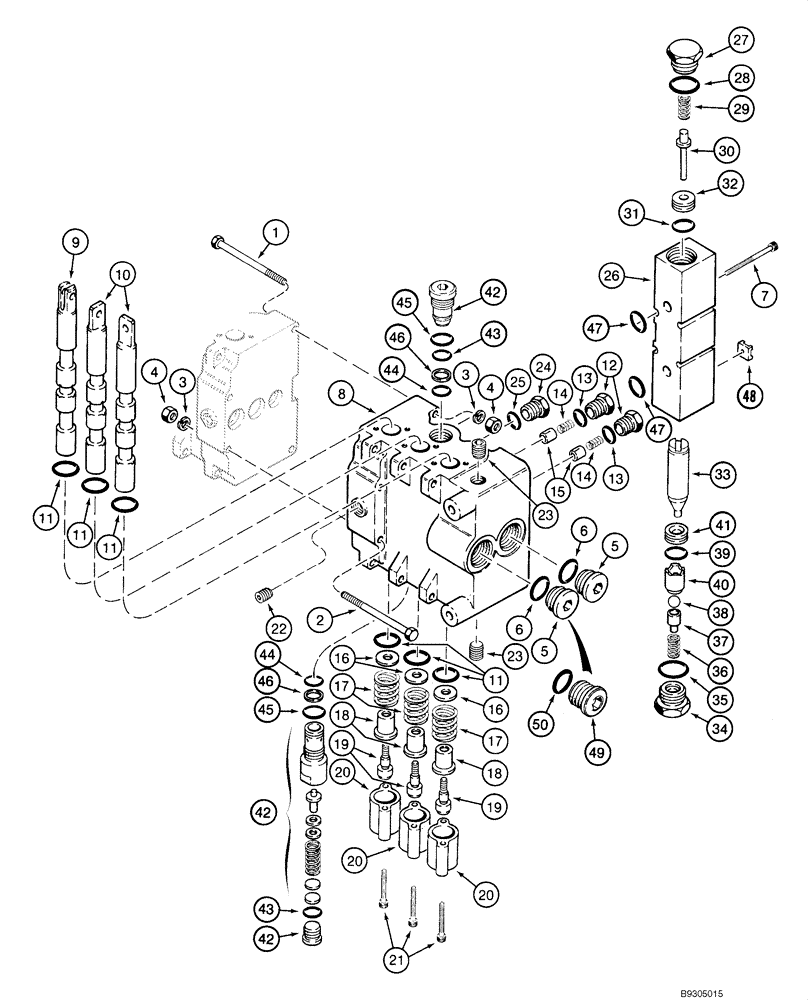

Запчасти Case 1845C (08-63) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D125 (08) - HYDRAULICS

OUTLET SECTION

1шт.

H674500

VALVE

Backhoe; Incl. 08-61 - 08-63

1шт.

87400034

VALVE

Backhoe; Replaces H674500; Incl. 08-61 - 08-63

1шт.

1

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

2шт.

2

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

3

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

4

425-114

NUT,1/4"-28, G5

4шт.

5

86625138

PLUG,7/18" - 14

Includes Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

4шт.

H674528

HYD VALVE SECTION

Incl. 8 - 25; Used with H674500

1шт.

87407875

HYD VALVE SECTION

Incl. 8 - 25; Used with 87400034

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Spool

1шт.

10

NSS

NOT SOLD SEPARAT

Spool

2шт.

11

H438030

O-RING

5/8 x 13/16

6шт.

H438024

SET

Incl. 12 - 15; Used with H674500

2шт.

87407874

HYD VALVE SECTION

Incl. 12 - 15; Used with 87400034

2шт.

12

H438231

PLUG

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

H438021

SET

Incl. 16 - 21

3шт.

16

NSS

NOT SOLD SEPARAT

Washer

1шт.

17

N9539

TENSION SPRING

1шт.

18

NSS

NOT SOLD SEPARAT

Spacer

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

1шт.

20

NSS

NOT SOLD SEPARAT

Cap

1шт.

21

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

22

H438960

PLUG

1шт.

23

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

24

H438231

PLUG

Incl. 25

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

100405A2

BLOCK ASSY.

Incl. 26 - 41

1шт.

26

NSS

NOT SOLD SEPARAT

Body

1шт.

111935A1

SET OF PARTS

Incl. 27 - 33

1шт.

27

113751A1

PLUG

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

113747A1

SPRING

1шт.

30

H438334

VALVE

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

113750A1

SEAT

1шт.

33

113749A1

PLUNGER

1шт.

34

H438031

PLUG

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

102712A1

SPRING

1шт.

37

H438032

SLEEVE VALVE

1шт.

38

113748A1

BALL

1шт.

39

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

40

H438033

CUP

1шт.

41

113746A1

SEAT

1шт.

H438945

VALVE, PRESSURE RELI

EF 3000-3100 psi; Incl. 42 - 46

2шт.

42

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

H674536

O-RING

Incl. 43 - 46

1шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

44

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

45

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

46

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

47

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

48

H438941

ORIFICE

2.388 mm (0.094 in)

1шт.

49

H438953

PLUG

Incl. 50; If Equipped

1шт.

50

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
