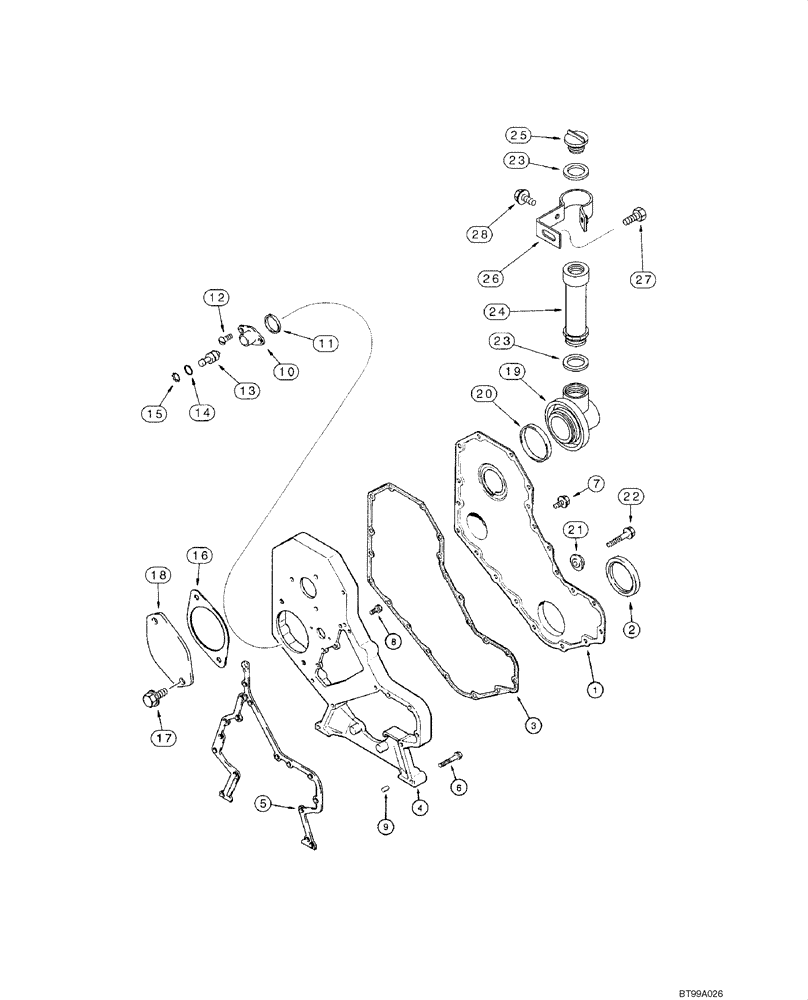

Запчасти Case 1845C (02-12) - FRONT GEAR COVER, 4-390 EMISSIONS CERTIFIED ENGINE, ASN JAF0250483 (INJECTION PUMP J935677) (02) - ENGINE

1

J286312

COVER

Replaces J903794

1шт.

2

NSS

NOT SOLD SEPARAT

Seal; Order A77889; See Fig 02-31, Ref 13

1шт.

3

J914385

GASKET,1.02mm Thk

Used with J903794

1шт.

4

J920758

HOUSING

1шт.

5

J938156

GASKET,0.79mm Thk

Replaces J931351

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

M8 x 16

11шт.

8

J926846

FLANGE BOLT

M8 x 20

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J919683

HOUSING

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

1шт.

14

J913994

O-RING

1шт.

15

J904849

SNAP RING,0.875", Int, #87

1шт.

16

J929751

GASKET

No Longer Used, Order J938655

1шт.

16

J938655

GASKET,1.27mm Thk

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

18

J914868

COVER

1шт.

19

J921644

ADAPTER

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

21

J912772

RETAINER

1шт.

22

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

23

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

Replaces J902363

2шт.

24

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

1шт.

25

J901895

CAP

1шт.

26

J918182

CLAMP,38mm ID

1шт.

27

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

28

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.
