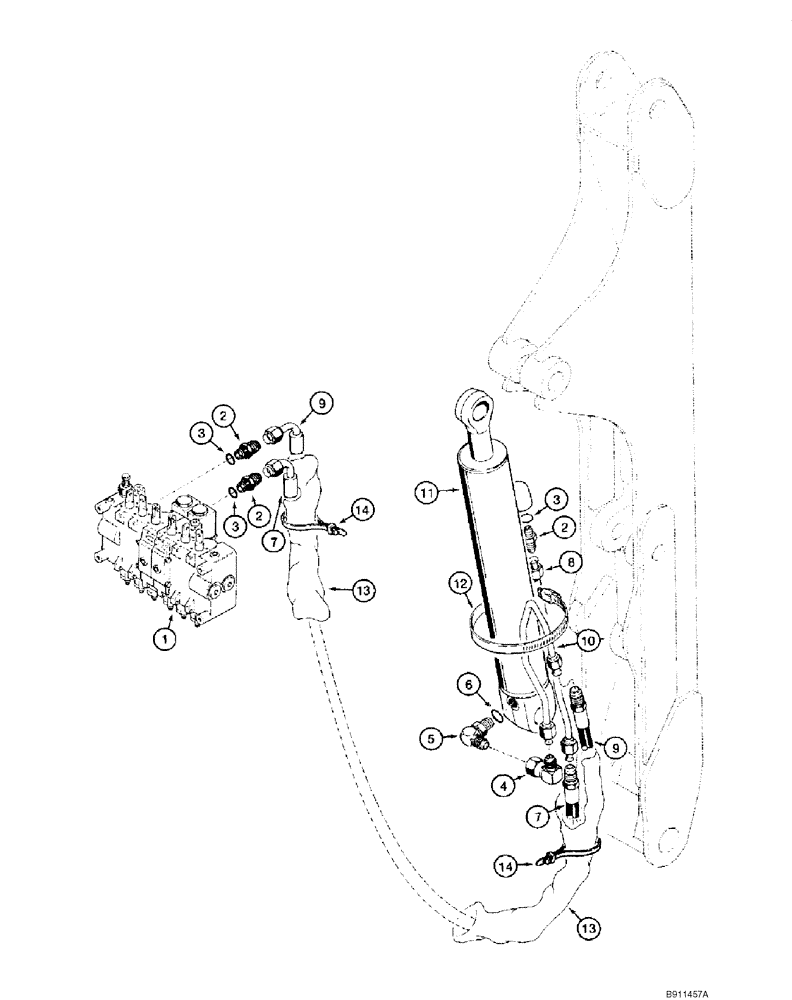

Запчасти Case 1845C (08-52) - HYDRAULIC SYSTEM - BACKHOE BOOM CYLINDER (NORTH AMERICA), D125 (08) - HYDRAULICS

WITH HOSES AT CONTROL VALVE

1шт.

1

H674500

VALVE

Backhoe; See Fig 08-61 - 08-63

1шт.

1

87400034

VALVE

Backhoe; Replaces H764500; See Fig 08-61 - 08-63

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

5

H439269

ELBOW

90; Incl. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

H438195

HOSE

1675 mm (66 in)

1шт.

8

H674565

TUBE,0.5" OD

1шт.

9

H438684

HOSE

1725 mm (68 in)

1шт.

10

H674566

TUBE,0.5" OD

1шт.

11

1346450C2

CYLINDER ASSY.

76 ID x 551 mm strk; Boom; See Fig 08-64; No Longer Available, Order 305352A1

1шт.

11

305352A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 551mm Stroke

3 (76) ID x 21-11/16 in (551 mm); See Fig 08-65

1шт.

12

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

13

H439063

SLEEVE

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.
