Запчасти Case 1845C (08-51) - HYDRAULIC SYSTEM - BACKHOE SUPPLY AND RETURN (NORTH AMERICA), D125 (08) - HYDRAULICS

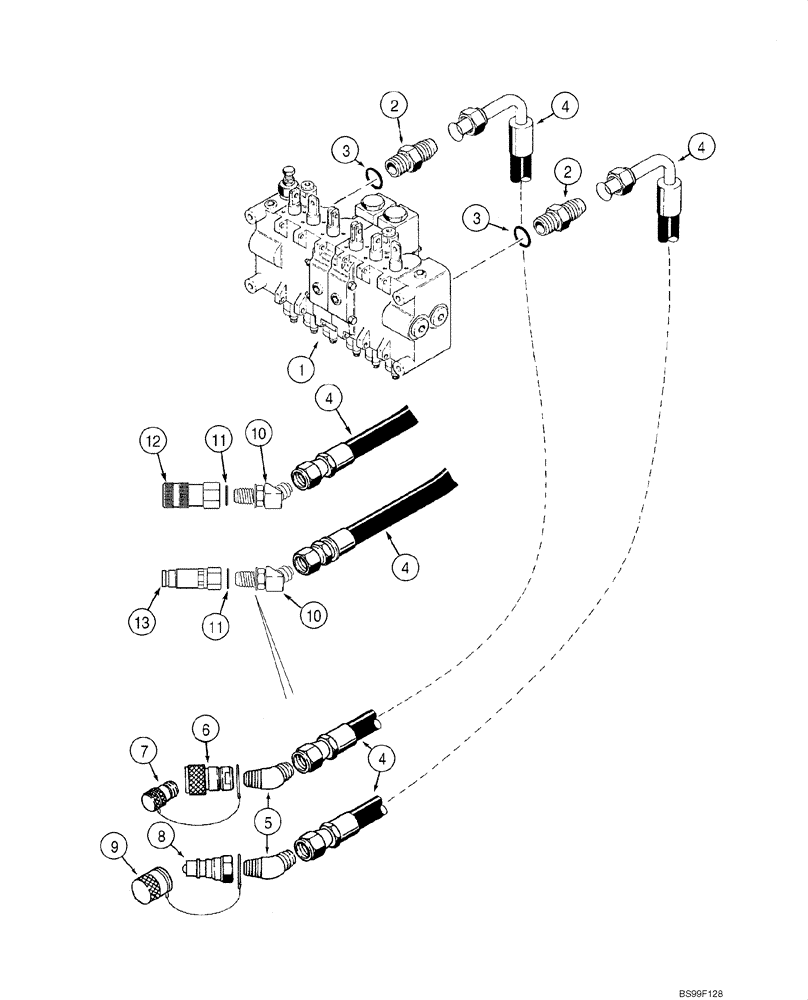

Схема запчастей Case 1845C - (08-51) - HYDRAULIC SYSTEM - BACKHOE SUPPLY AND RETURN (NORTH AMERICA), D125 (08) - HYDRAULICS
4
10
3
9
11
7
4
11
4
4
10
3
4
8
13
1
12
5
2
2
6

Артикул

Название

Примечание

Количество

1

H674500

VALVE

Backhoe; Manufactured By Dukes; See Fig 08-61 - 08-63

1шт.

1

87400034

VALVE

Backhoe; Replaces H764500; See Fig 08-61 - 08-63

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

H438230

HOSE ASSY.

1650 mm (65 in)

2шт.

5

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

45, 7/8 fl x 1/2 PT; If Used

2шт.

6

H436396

COUPLING

Female; If Used

1шт.

7

T40274

CAP

If Used

1шт.

8

1272770C2

COUPLING, BREAK AWAY

Male; If Used

1шт.

9

T40759

PLUG

If Used

1шт.

10

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 11; If Used

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

143431A1

COUPLING, QUICK, FEM

Female; If Used

1шт.

13

238243A1

COUPLING, BREAK AWAY

Male; If Used

1шт.

Выбрано товаров: 14
