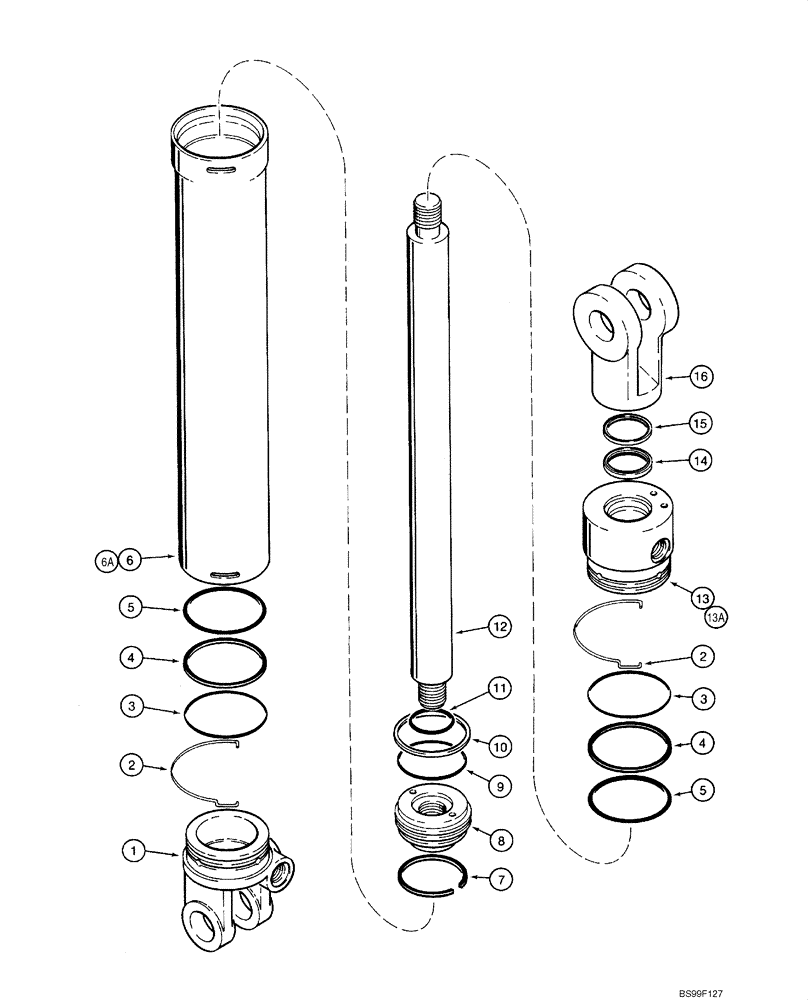

Запчасти Case 1845C (08-48) - CYLINDER ASSY - STABILIZERS (NORTH AMERICA) (08) - HYDRAULICS

H672226

CYLINDER ASSY.

76 ID x 406 mm strk; Stabilizer; Incl. 1 - 16; No Longer Available, Order 101643A1; See Fig 08-49

2шт.

1

102681A1

JACK HEAD

1шт.

2

H436693

LOCKING RING

2шт.

3

H436690

SEAL

2шт.

4

H745760

WASHER

2шт.

5

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2шт.

6

H436685

HYD CYL SLEEVE

No Longer Available, Order 102683A1, Ref 6A; 102686A1, Ref 13A

1шт.

6a

102683A1

TUBE

Replaces H436685

1шт.

7

H436691

GASKET

1шт.

8

102682A1

PISTON

Replaces H436684

1шт.

9

238-6231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 6, 90 Duro

1шт.

10

H120188

RING

1шт.

11

T52486

O-RING

1шт.

12

H436686

PISTON ROD

1шт.

13

H436688

GLAND

No Longer Available, Order 102683A1, Ref 6A; 102686A1, Ref 13A

1шт.

13a

102686A1

GLAND

Replaces H436688

1шт.

14

H436694

SEAL

1шт.

15

H436692

SEAL

1шт.

16

102685A1

JACK HEAD

Rod End; Replaces H436687

1шт.

17

H436689

COVER

Not Illustrated

2шт.
