Запчасти Case 1845C (08-47) - CYLINDER ASSY - BACKHOE (NORTH AMERICA), D100XR (08) - HYDRAULICS

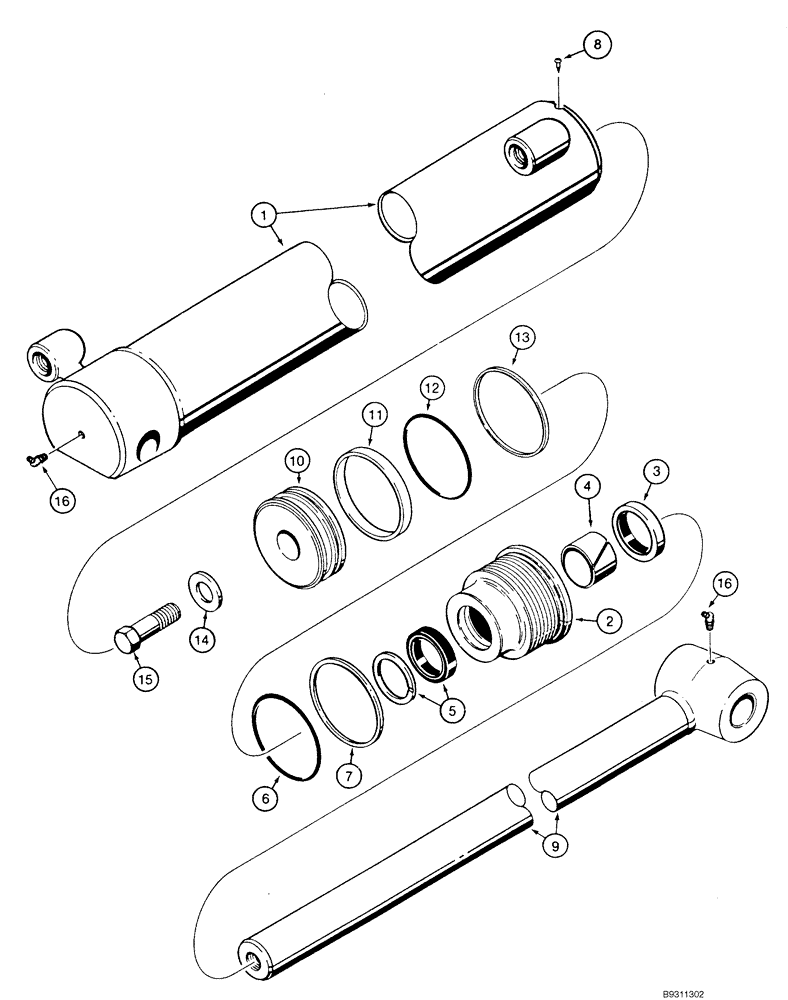

Схема запчастей Case 1845C - (08-47) - CYLINDER ASSY - BACKHOE (NORTH AMERICA), D100XR (08) - HYDRAULICS
10
11
16
2
7
12
16
3
13
14
4
5
1
8
9
15
6

Артикул

Название

Примечание

Количество

G109376

CYLINDER BLOCK

76 ID x 605 mm strk; Dipper; Incl. 1 - 16

1шт.

1

G109377

TUBE,76.2 mm DIA x 759 mm L

1шт.

NSS

NOT SOLD SEPARAT

Gland, Packing; Incl. 2 - 7; Not Serviced as an Assembly, Order Components

1шт.

2

1542962C1

GLAND

Replaces G104222

1шт.

3

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

5

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

1шт.

6

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

7

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

8

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

9

G34179

ROD

38 mm (1-1/2 in) dia

1шт.

NSS

NOT SOLD SEPARAT

Piston Assy; Incl. 10 - 13; Not Serviced as an Assembly; Order Components

1шт.

10

G104108

PISTON

1шт.

11

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

12

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

13

G32034

RING

1шт.

14

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

1шт.

15

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

16

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

1543313C1

SEAL KIT

Incl. 3 - 7, 11 - 13; Replaces G109418

1шт.

Выбрано товаров: 20
