Запчасти Case 1845C (08-46) - CYLINDER ASSY - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

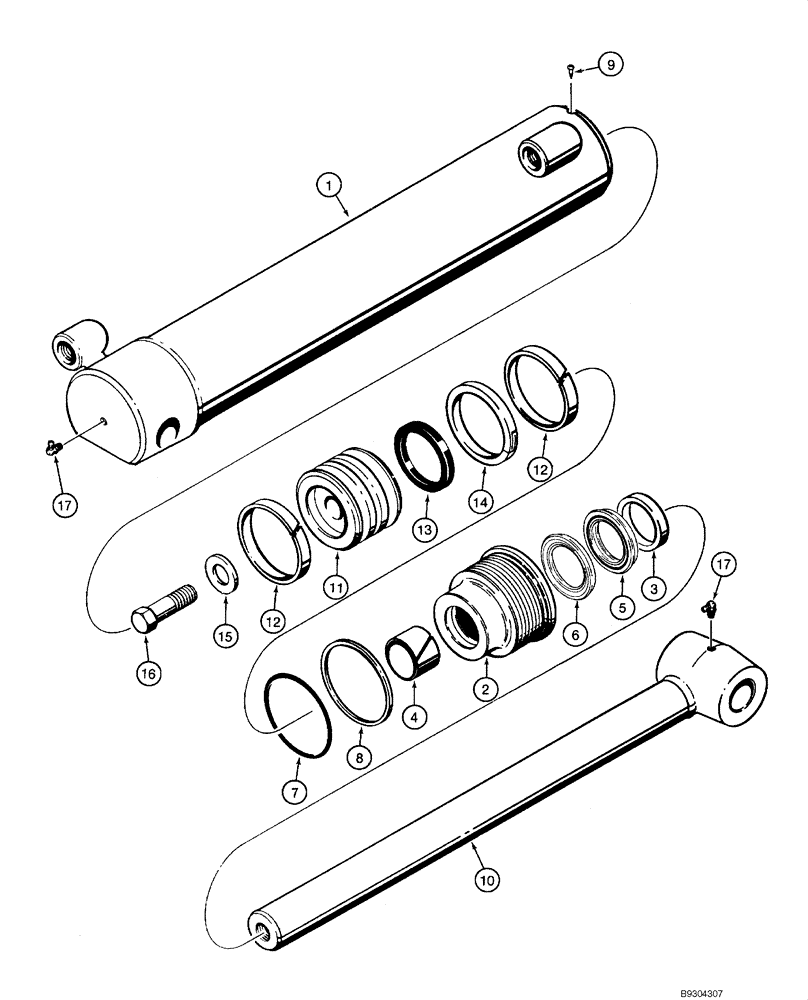

Схема запчастей Case 1845C - (08-46) - CYLINDER ASSY - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS
7
3
15
8
14
17
1
5
2
4
12
13
10
17
11
16
6
12
9

Артикул

Название

Примечание

Количество

BOOM, DIPPER, AND BUCKET CYLINDER

1шт.

D100 BACKHOE ONLY

1шт.

BOOM AND BUCKET CYLINDER

1шт.

D100XR BACKHOE ONLY

1шт.

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

76 ID x 372 mm strk; Incl. 1 - 17

2-3шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

1шт.

NSS

NOT SOLD SEPARAT

Gland, Packing; Incl. 2 - 8; Not Serviced as an Assembly, Order Components

1шт.

2

1542962C1

GLAND

1шт.

3

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

1542874C1

SEAL KIT,38.1mm Rod

Incl 5, 6; NSS, Order 1543252C1, See below

1шт.

5

NSS

NOT SOLD SEPARAT

Seal; Rod; Order 1543252C1

1шт.

6

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 1543252C1

1шт.

1543252C1

SEAL KIT

Incl. 3 - 8, 12 - 14

1шт.

7

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

9

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

10

G101357

ROD

38 mm (1/2 in) dia

1шт.

11

G100442

PISTON

1шт.

12

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

2шт.

13

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

15

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

Выбрано товаров: 25
