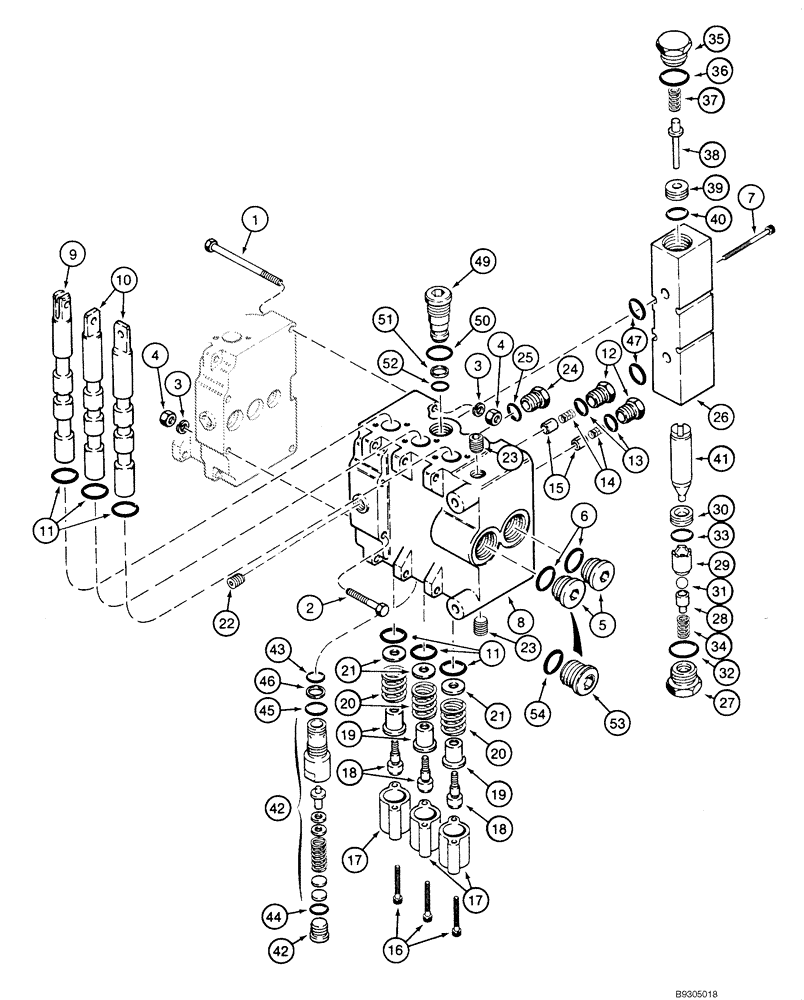

Запчасти Case 1845C (08-45) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

H674300

VALVE

Backhoe; Manufactured By Dukes; Incl. 08-43 - 08-45

1шт.

87400023

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Fig 08-43 - 08-45

1шт.

1

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

2шт.

2

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

3

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

4

425-114

NUT,1/4"-28, G5

4шт.

5

86625138

PLUG,7/18" - 14

Incl. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

4шт.

H674528

HYD VALVE SECTION

Outlet; Incl. 8 - 25; Used with H764300

1шт.

87407875

HYD VALVE SECTION

Outlet; Incl. 8 - 25; Used with 87400023

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Spool; Stabilizer

1шт.

10

NSS

NOT SOLD SEPARAT

Spool; Dual Control

2шт.

11

H438030

O-RING

5/8 x 13/16

6шт.

H438024

SET

Load Check; Incl. 12 - 15; Used with H764300

2шт.

87407876

KIT

Load Check; Incl. 12 - 15; Used with 87400023

2шт.

12

H438231

PLUG

Incl. 13

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

H438021

SET

Centering Spring; Incl. 16 - 21

3шт.

16

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

17

NSS

NOT SOLD SEPARAT

Cap

1шт.

18

NSS

NOT SOLD SEPARAT

Bolt

1шт.

19

NSS

NOT SOLD SEPARAT

Spacer

1шт.

20

N9539

TENSION SPRING

1шт.

21

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

22

H438960

PLUG

1шт.

23

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

24

H438231

PLUG

Incl. 25

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

100405A2

BLOCK ASSY.

Incl. 26 - 41

1шт.

26

NSS

NOT SOLD SEPARAT

Body

1шт.

27

H438031

PLUG

1шт.

28

H438032

SLEEVE VALVE

1шт.

29

H438033

CUP

1шт.

30

113746A1

SEAT

1шт.

31

113748A1

BALL

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

34

102712A1

SPRING

1шт.

35

113751A1

PLUG

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

113747A1

SPRING

1шт.

38

H438334

VALVE

1шт.

39

113750A1

SEAT

1шт.

40

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

41

113749A1

PLUNGER

1шт.

H674533

VALVE

Incl. 42 - 46

1шт.

42

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

H674536

O-RING

Incl. 43 - 46

1шт.

43

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

44

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

45

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

46

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

47

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

48

H438039

LARGE PLATE

PLATE, LARGE Bottom Port of Stabilizer Section; Not Illustrated

2шт.

H438954

PLUG

Incl. 49 - 52

1шт.

49

NSS

NOT SOLD SEPARAT

Plug

1шт.

50

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

51

H438339

GASKET

1шт.

52

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

53

H438953

PLUG

Incl. 54; Optional Outlet Port; If Used

1шт.

54

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

111935A1

SET OF PARTS

Plunger; Incl. 35 - 41

1шт.
