Запчасти Case 1845C (08-44) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

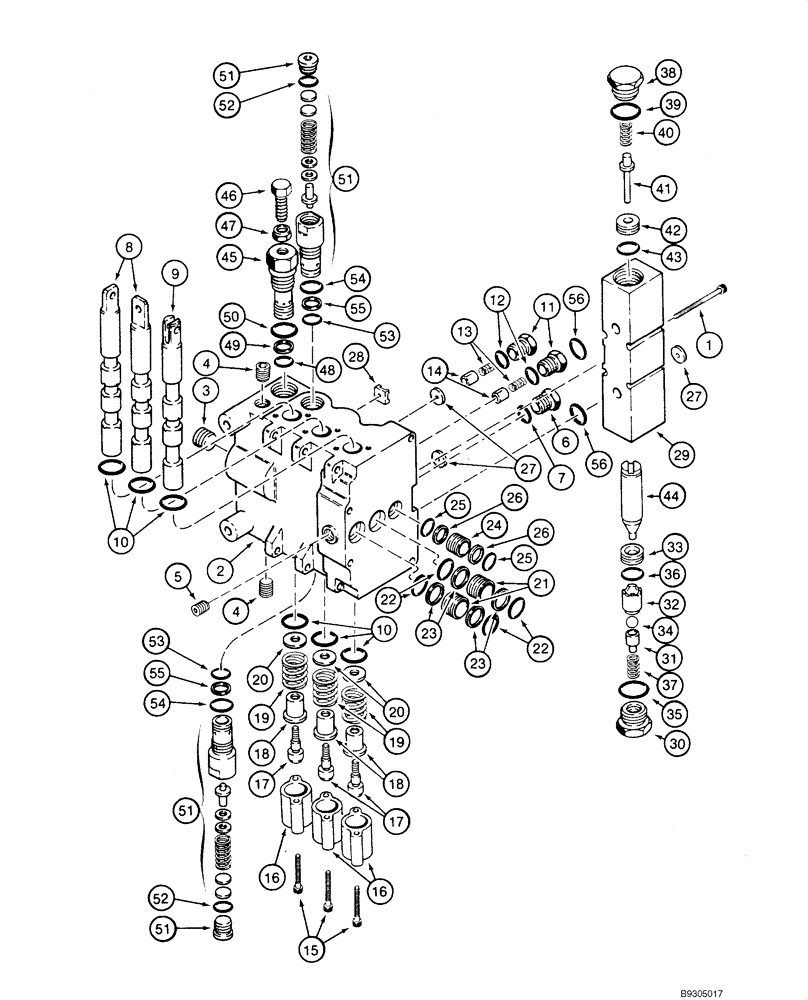

Схема запчастей Case 1845C - (08-44) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS
19
33
15
22
17
47
28
37
18
42
54
32
24
56
14
49
17
23
40
52
51
18
51
6
27
35
45
46
44
1
3
34
55
7
50
13
11
10
30
38
36
41
16
20
51
26
53
29
53
20
51
31
26
39
10
4
5
19
9
27
25
52
4
2
55
22
23
25
12
56
16
21
48
43
8
54

Артикул

Название

Примечание

Количество

H674300

VALVE

Backhoe; Manufactured By Dukes; Incl. 08-43 - 08-45

1шт.

87400023

VALVE

Control; Backhoe; Manufactured By Dukes; Incl. Fig 08-43 - 08-45

1шт.

1

62-31040

HEX SOC SCREW,#10 - 32 x 2 1/2"

4шт.

H674530

VALVE

Inlet; Incl. 1 - 20; Used with H674300

1шт.

87407874

HYD VALVE SECTION

Inlet; Incl. 1 - 20; Used with 87400023

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

1шт.

4

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Replaces 221-433

2шт.

5

H438960

PLUG

1шт.

6

H438231

PLUG

Incl. 7

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Spool; Dual Control

2шт.

9

NSS

NOT SOLD SEPARAT

Spool; Stabilizer

1шт.

10

H438030

O-RING

5/8 x 13/16

6шт.

H438024

SET

Load Check; Incl. 11 - 14; Used with H674300

2шт.

87407876

KIT

Load Check; Incl. 11 - 14; Used with 87400023

3шт.

11

H438231

PLUG

Incl. 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

Spring

1шт.

14

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

H438021

SET

Centering Spring; Incl. 15 - 20

3шт.

15

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

16

NSS

NOT SOLD SEPARAT

Cap

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt

1шт.

18

NSS

NOT SOLD SEPARAT

Spacer

1шт.

19

N9539

TENSION SPRING

1шт.

20

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

21

H438028

TUBE

Large; Incl. 22, 23

2шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

23

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

2шт.

24

H438029

TUBE

Small; Incl. 25, 26

1шт.

25

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

26

H438044

GASKET

2шт.

27

H438039

LARGE PLATE

PLATE, LARGE Orifice; Round

3шт.

28

H438041

LARGE PLATE

PLATE, LARGE 3.505 mm (0.138 in); Orifice, Square

1шт.

100405A2

BLOCK ASSY.

Incl. 29 - 44

1шт.

29

NSS

NOT SOLD SEPARAT

Body

1шт.

30

H438031

PLUG

1шт.

31

H438032

SLEEVE VALVE

1шт.

32

H438033

CUP

1шт.

33

113746A1

SEAT

1шт.

34

113748A1

BALL

1шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

37

102712A1

SPRING

1шт.

38

113751A1

PLUG

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

113747A1

SPRING

1шт.

41

H438334

VALVE

1шт.

42

113750A1

SEAT

1шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

44

113749A1

PLUNGER

1шт.

H674534

VALVE

Main; Incl. 45 - 50

1шт.

45

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

46

H438229

ADJUSTMENT SCREW

1шт.

47

H438228

NUT

1шт.

H674535

GASKET KIT

Incl. 48 - 50

1шт.

48

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

49

H438044

GASKET

1шт.

50

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

50a

H438329

GASKET

1шт.

50b

H438328

SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk

5/16 X 1/16

1шт.

H674533

VALVE

Incl. 51 - 56

2шт.

51

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

H674535

GASKET KIT

Incl. 52 - 55

1шт.

52

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

55

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

56

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

111935A1

SET OF PARTS

Plunger; Incl. 38 - 44

1шт.

Выбрано товаров: 71
