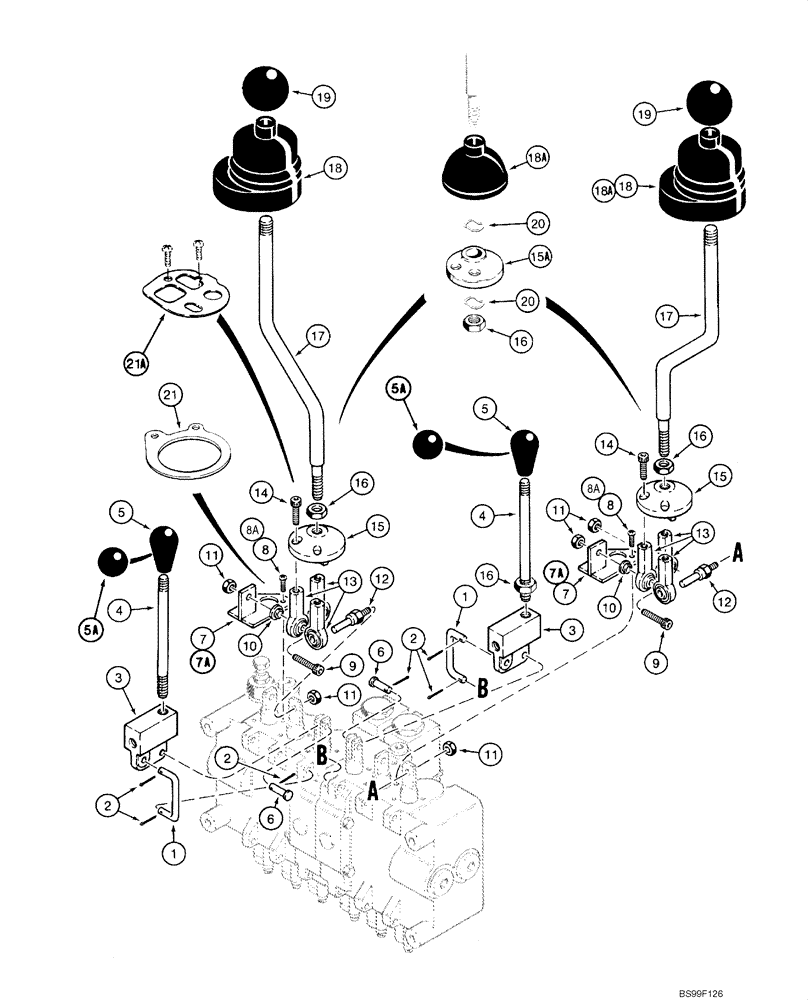

Запчасти Case 1845C (08-43) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

H674300

VALVE

Backhoe; Manufactured By Dukes; Incl. 08-43 - 08-45

1шт.

87400023

VALVE

Control; Backhoe; Replaces H674300; Incl. Fig 08-43 - 08-45

1шт.

1

H438042

ARM

2шт.

2

432-412

COTTER PIN,1/16" x 3/4"

6шт.

3

H438043

BLOCK ASSY.

2шт.

4

100406A1

LEVER

5-1/4

2шт.

5

A14051

GRIP

Elliptical; If Used

2шт.

5a

H152207

BALL KNOB

Round; If Used

2шт.

6

427-4077

CLEVIS PIN,1/4" x .770"

2шт.

7

H438023

BRACKET

No Longer Available, Order H438950, Ref 7A; H438951, Ref 21A

2шт.

7a

H438950

LARGE PLATE

PLATE, LARGE

2шт.

8

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

Used with H438023, Ref 7

4шт.

8a

62-31010

SCREW,Hex Soc Hd, #10-32 x 5/8"

Used with H438950, Ref 7A

4шт.

9

62-32516

HEX SOC SCREW,1/4"-28 x 1"

2шт.

10

H438035

SPACER

2шт.

11

H438943

JAM NUT

6шт.

12

H438038

STUD

2шт.

13

H438025

ROD

6шт.

14

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

4шт.

15

H438037

DISC

If Used

2шт.

15a

H438944

ADAPTER

If Used

2шт.

16

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

17

H438022

LEVER

2шт.

18

H438036

PROTECTOR

Used with H438037, Ref 15

2шт.

18a

H438946

PROTECTOR

Used with H438944, Ref 15A

2шт.

19

A23885

KNOB

2шт.

20

H438956

WASHER

4шт.

21

100407A1

LARGE PLATE

PLATE, LARGE Used with H438037, Ref 15

2шт.

21a

H438951

LARGE PLATE

PLATE, LARGE Used with H438944, Ref 15A

2шт.
