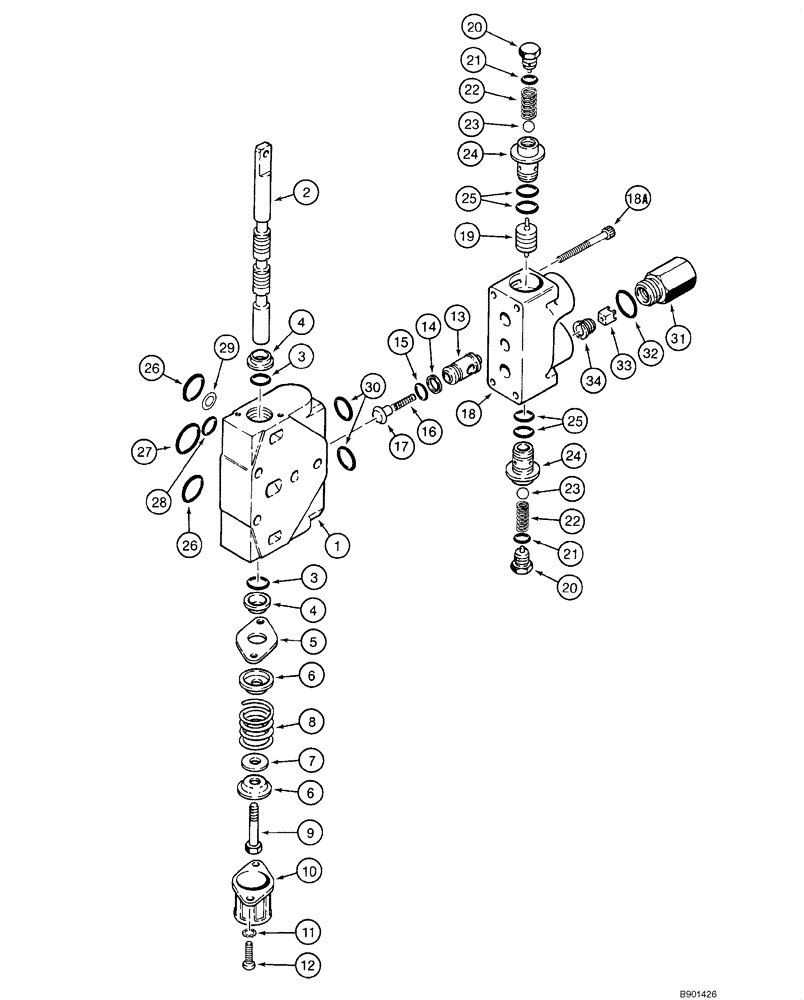

Запчасти Case 1845C (08-42) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

H672636

VALVE

Backhoe; Manufactured By Kontak; Incl. 08-38 - 08-42; No Longer Available, Order H674300; See Figures 08-43 - 08-45

1шт.

H674592

VALVE

Stabilizer; Incl. 1 - 34

2шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

4

N14043

WIPER SEAL

2шт.

5

N14042

SHIN

1шт.

6

H401208

SEAT PLATE

2шт.

7

1329639C1

SPACER

Replaces H398677

1шт.

8

H401216

SPRING

1шт.

9

H401190

SCREW

1шт.

10

H438212

CAP

1шт.

11

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

12

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

13

H438205

VALVE

1шт.

14

N14047

GASKET

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

H438206

SPRING

1шт.

17

H438207

GUIDE

1шт.

N14048

VALVE

Incl. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

Body

1шт.

18a

61-32528

HEX SOC SCREW,1/4"-20 x 1 3/4"

4шт.

19

N14050

PILOT VALVE

1шт.

N14049

VALVE

Incl. 20 - 25

2шт.

20

NSS

NOT SOLD SEPARAT

Plug

1шт.

21

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 ID x 1/16

1шт.

22

NSS

NOT SOLD SEPARAT

Spring

1шт.

23

NSS

NOT SOLD SEPARAT

Ball

1шт.

24

NSS

NOT SOLD SEPARAT

Body

1шт.

25

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

2шт.

26

H438208

O-RING

2шт.

27

H438209

O-RING

1шт.

28

H438210

O-RING

1шт.

29

H438211

SHIM

1шт.

30

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

2шт.

H674020

RESTRICTOR

Load Check; Incl. 31 - 34

1шт.

31

NSS

NOT SOLD SEPARAT

Body

1шт.

32

H398685

O-RING

8 x 3/32

1шт.

33

H437218

VALVE

1шт.

34

NSS

NOT SOLD SEPARAT

Plug

1шт.
