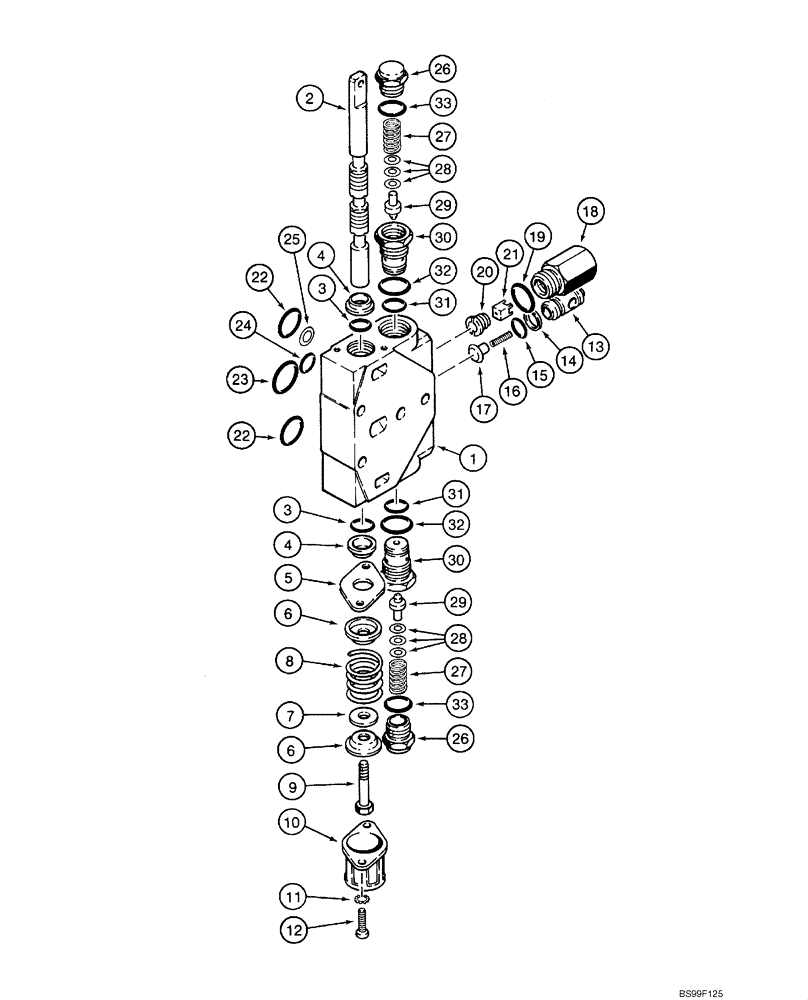

Запчасти Case 1845C (08-40) - VALVE, CONTROL - BACKHOE (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

H672636

VALVE

Backhoe; Manufactured By Kontak; Incl. 08-38 - 08-42; No Longer Available, Order H674300; See Figures 08-43 - 08-45

1шт.

H674590

VALVE

Boom; Incl. 1 - 33

1шт.

H674593

VALVE

Dipper; Incl. 1 - 33

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

4

N14043

WIPER SEAL

2шт.

5

N14042

SHIN

2шт.

6

H401208

SEAT PLATE

2шт.

7

1329639C1

SPACER

Replaces H398677

1шт.

8

H401216

SPRING

1шт.

9

H401190

SCREW

1шт.

10

H438212

CAP

1шт.

11

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

12

440-12512

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

2шт.

13

H438205

VALVE

1шт.

14

N14047

GASKET

1шт.

15

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

H438206

SPRING

1шт.

17

H438207

GUIDE

1шт.

H674020

RESTRICTOR

Load Check; Incl. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

Body

1шт.

19

H398685

O-RING

8 x 3/32

1шт.

20

NSS

NOT SOLD SEPARAT

Plug

1шт.

21

H437218

VALVE

1шт.

22

H438208

O-RING

2шт.

23

H438209

O-RING

1шт.

24

H438210

O-RING

1шт.

25

H438211

SHIM

1шт.

H674018

VALVE

Incl. 26 - 33

2шт.

26

NSS

NOT SOLD SEPARAT

Cap

1шт.

27

H437231

SPRING

1шт.

28

H398644

BLOCK

0,08 mm (0,003 in)

1шт.

28

H398651

BLOCK

0,51 mm (0,020 in)

1шт.

29

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

30

NSS

NOT SOLD SEPARAT

Body

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

H398685

O-RING

8 x 3/32

1шт.

33

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.
