Запчасти Case 1845C (02-10) - FRONT GEAR COVER, 4-390 ENGINE (02) - ENGINE

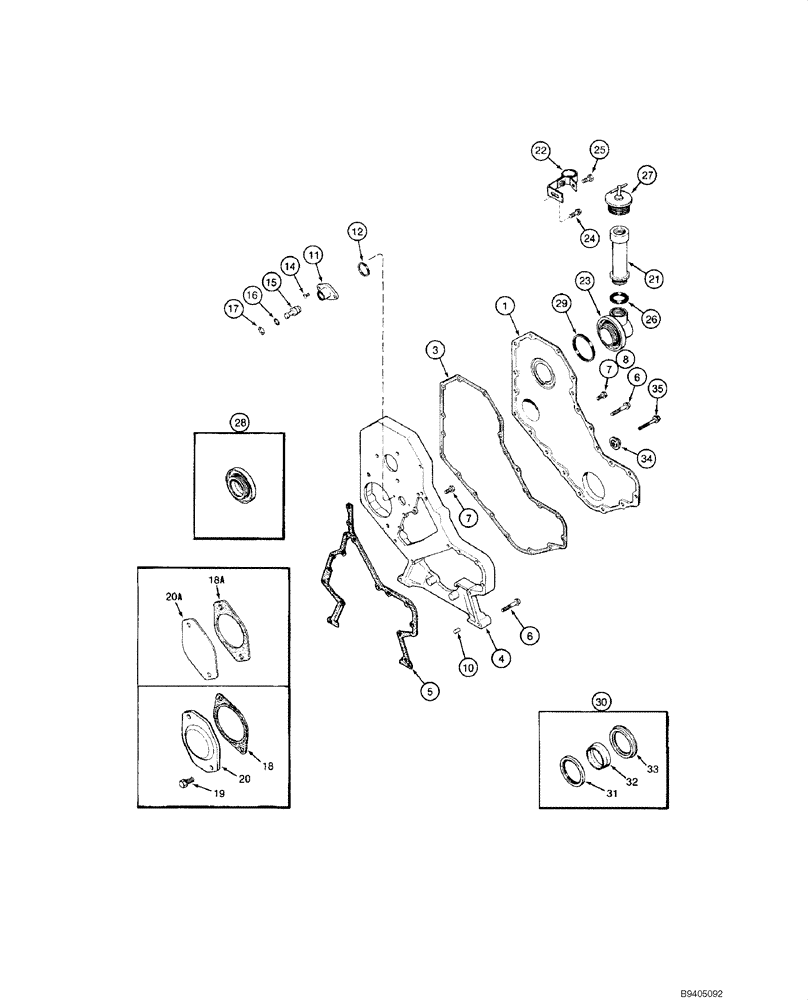

Схема запчастей Case 1845C - (02-10) - FRONT GEAR COVER, 4-390 ENGINE (02) - ENGINE
28
27
4
34
19
32
20a
35
18
25
31
6
14
7
24
15
18a
10
12
5
33
1
8
30
23
29
22
7
3
6
11
21
17
26
16
20

Артикул

Название

Примечание

Количество

1

J903794

COVER

No Longer Available, Order J286312

1шт.

1

J286312

COVER

1шт.

3

J914385

GASKET,1.02mm Thk

1шт.

4

J920758

HOUSING

Replaces J910411, J920518

1шт.

5

J931351

GASKET

Housing; Replaces J916131; No Longer Available, Order J938156

1шт.

5

J938156

GASKET,0.79mm Thk

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

11шт.

7

J924962

FLANGE BOLT

M8 x 16

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

11

J919683

HOUSING

Replaces J905933

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Replaces J914092

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

1шт.

16

J913994

O-RING

1шт.

17

100-2587

SNAP RING,0.875", Int, #87

(Replaces J904849)

1шт.

18

J913192

GASKET

No Longer Available, Order J931608

1шт.

18

J919601

GASKET

Mounting; No Longer Available, Order 144169C2

1шт.

18a

144169C2

GASKET,0.79mm Thk

Replaces J913192, J919601, J931608

1шт.

19

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

20

J909918

PLATE

No Longer Available, Order J914868

1шт.

20a

J914868

COVER

Replaces J909918

1шт.

21

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

Oil Filler

1шт.

22

J918182

CLAMP,38mm ID

1шт.

23

J921644

ADAPTER

Replaces J911679

1шт.

24

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

25

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

26

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

1шт.

27

A77424

FILLER CAP

1шт.

28

J903463

PLUG,M63 x 5

North America Only

1шт.

29

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

North America Only

1шт.

30

J904353

GASKET KIT

Crankshaft; Incl. 31 - 33; No Longer Available, Order A77889; See Fig 02-31, Ref 13

1шт.

31

NSS

NOT SOLD SEPARAT

Seal

1шт.

32

NSS

NOT SOLD SEPARAT

Tool

1шт.

33

NSS

NOT SOLD SEPARAT

Tool

1шт.

34

J912772

RETAINER

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

Выбрано товаров: 36
