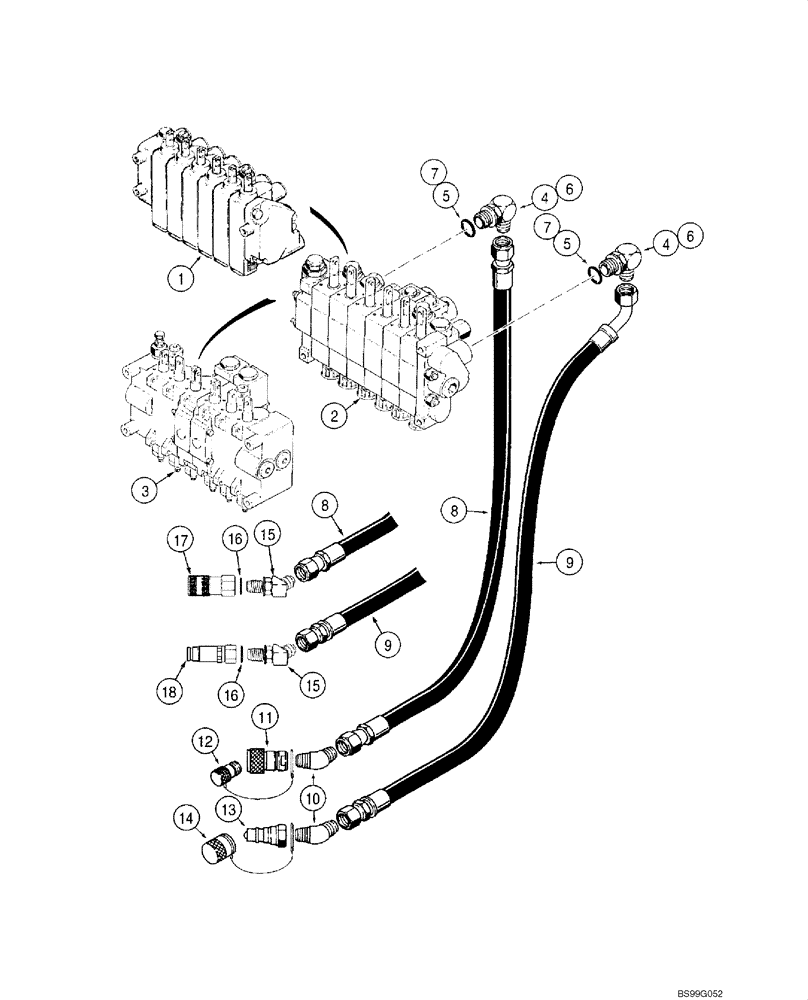

Запчасти Case 1845C (08-30) - HYDRAULIC SYSTEM - BACKHOE SUPPLY AND RETURN (NORTH AMERICA), D100, D100XR (08) - HYDRAULICS

1

H513788

LOCK VALVE

Backhoe; Manufactured By Cessna; See Fig 08-37; D100XR Backhoe Only; No Longer Available, Order HR513788

1шт.

2

H672636

VALVE

Backhoe; Manufactured By Kontak; See Figs 08-38 - 08-42; No Longer Available, Order H674300

1шт.

3

H674300

VALVE

Backhoe; Manufactured By Dukes; See Figs 08-43 - 08-45

1шт.

3

87400023

VALVE

Control; Backhoe; Replaces H674300; See Fig 08-43 - 08-45

1шт.

4

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Incl. 5; Used with H513788, H672636

2шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 7; Used with H674300

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

L46723

HOSE

1067 mm (42-1/8 in); Supply

1шт.

9

D137255

HOSE ASSY.

1150 mm (45-3/8 in); Return

1шт.

10

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

45, 7/8 fl x 1/2 PT; If Used

2шт.

11

H436396

COUPLING

Female; If Used

1шт.

12

T40274

CAP

If Used

1шт.

13

1272770C2

COUPLING, BREAK AWAY

Male; If Used

1шт.

14

T40759

PLUG

If Used

1шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 16; If Used

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

143431A1

COUPLING, QUICK, FEM

Female; If Used

1шт.

18

238243A1

COUPLING, BREAK AWAY

Male; If Used

1шт.
