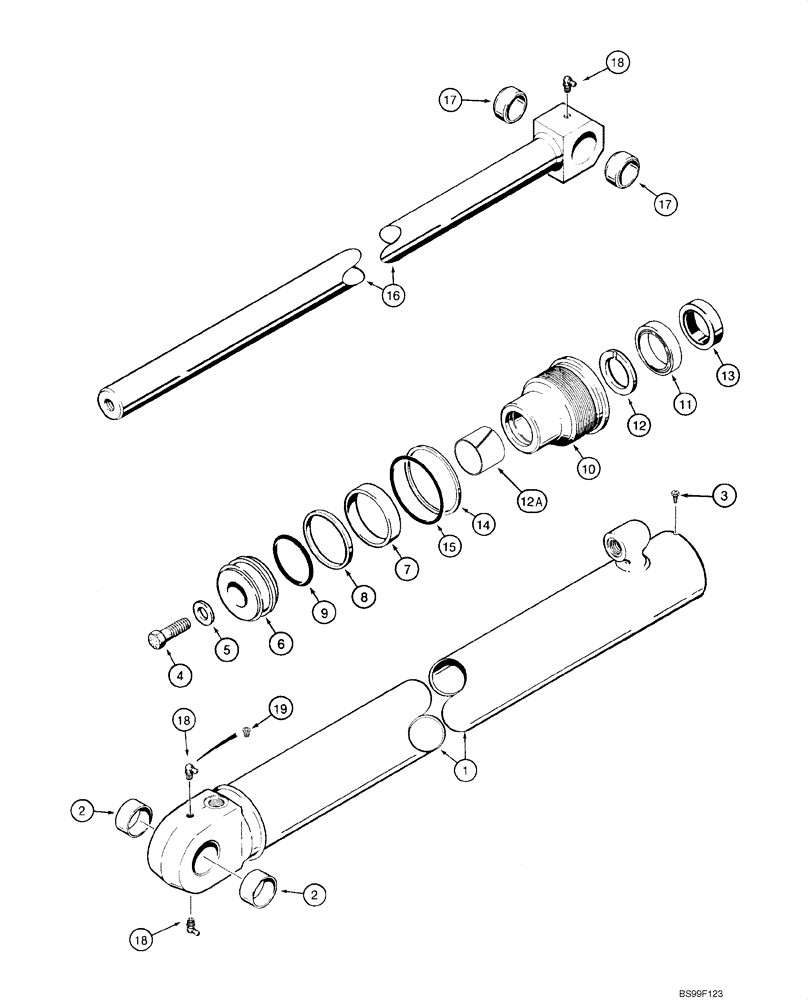

Запчасти Case 1845C (08-27) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

129011A1

CYLINDER ASSY.

64 ID x 749 mm strk; Loader Lift; Service Replacement; Incl. 1 - 19; No Longer Used, Order 117903A1

2шт.

117903A1R

REMAN-HYD CYLINDER

1845C(1/86-). Reman for new P/N 129011A1

2шт.

117903A1C

CORE-HYD CYLINDER

Return Number

1шт.

117903A1

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 749.3mm Stroke

64 ID x 749 mm strk; Loader Lift; Incl. 1 - 19; For Mounting, See Fig 09-01

2шт.

117903A1R

REMAN-HYD CYLINDER

1845C (1/86-)

2шт.

117903A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

129012A1

TUBE,63.42 mm ID, 70.71 mm OD, 931.9 mm Length

Incl. 2; Used with 129011A1

1шт.

1

NSS

NOT SOLD SEPARAT

Tube Assy; Incl. 2; Used with 117903A1

1шт.

2

D34359

BUSHING,25.63mm ID x 34.92mm OD x 15.75mm L

2шт.

3

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

4

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

4

86982434

SPECIAL BOLT,3/4" - 16 x 2"

Bolt and Washer Assy; Replaces 28-1232, and Ref 16, G32317

1шт.

5

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

NSS

NOT SOLD SEPARAT

Piston Assy; Incl. 6 - 9

1шт.

6

S220090

PISTON

1шт.

7

G100714

RING

1шт.

8

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

1шт.

9

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

128725A1

SEAL KIT

Incl. 7 - 9, 11 - 15

1шт.

NSS

NOT SOLD SEPARAT

Gland, Packing; Incl. 10 - 15

1шт.

10

117830A2

GLAND

1шт.

11

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

12

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

12a

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

13

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

14

G109297

BACK-UP RING,56.9mm ID x 63.5mm OD x 1.4mm Thk

1шт.

15

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

242313A1

PISTON ROD

Incl. 16, 17; Replaces G34924

1шт.

16

NSS

NOT SOLD SEPARAT

Rod

1шт.

17

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

2шт.

18

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2-3шт.

19

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

Production only

1шт.

128725A1

SEAL KIT

Incl. 7 - 9, 11 - 15

1шт.
