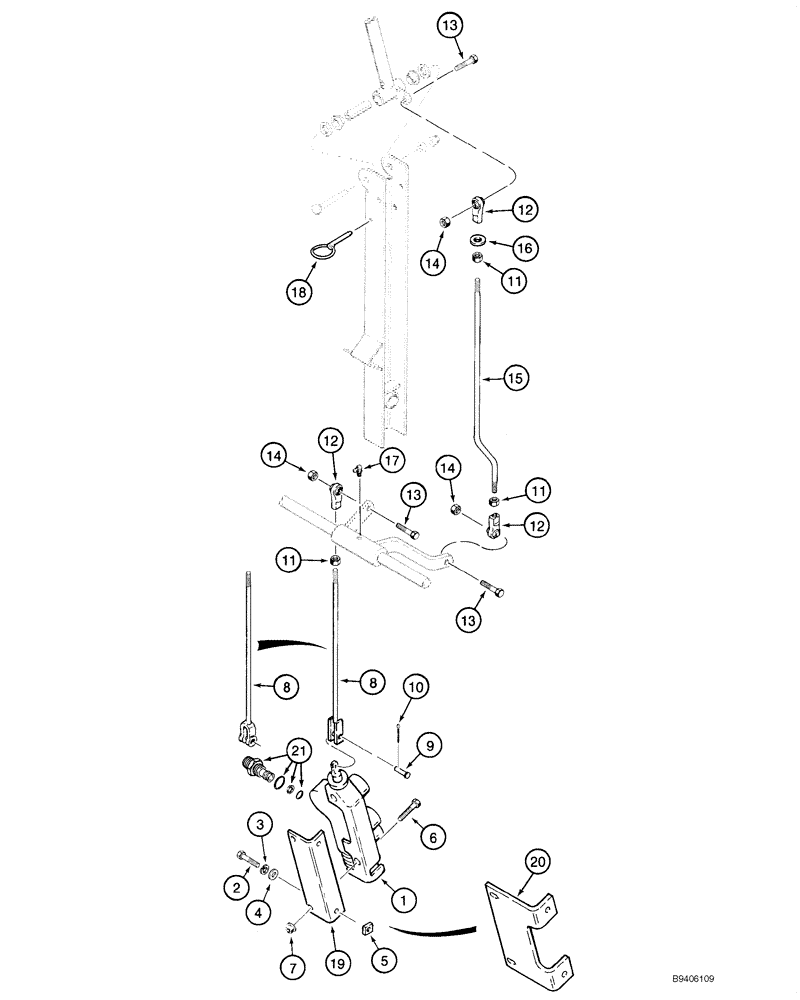

Запчасти Case 1845C (08-24) - MOUNTING - VALVE, AUXILIARY CONTROL (08) - HYDRAULICS

MODELS WITH HAND OPERATED LOADER CONTROLS

1шт.

1

REF

INSTRUCTION

Valve Assy, Control; Auxiliary; See Fig 08-18

1шт.

2

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

5

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

6

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

8

H439252

ROD

Replaces H674083

1шт.

9

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

16 x 1; Replaces H35279

1шт.

10

432-48

COTTER PIN,1/16" x 1/2"

1шт.

11

425-116

NUT,3/8" - 24, Gr 5

3шт.

12

A32398

BALL JOINT

3/8 fem NF

3шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

14

232-4116

NUT,3/8"-16, GC

3шт.

15

D128257

ROD

1шт.

16

495-81002

WASHER,3/8"

7/16 x 1-3/8 x 5/64

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

18

H437134

LINCH PIN,6.3mm OD

1шт.

19

H437232

BRACKET

Auxiliary Control Valve without High Flow Hydraulics

1шт.

20

131398A1

BRACKET

Auxiliary Control Valve with High Flow Hydraulics

1шт.

21

129878A1

FITTING

Power Beyond; Used with High Flow Hydraulic Circuit; Incl. 22, 23

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

188195A1

SEAL

1шт.
