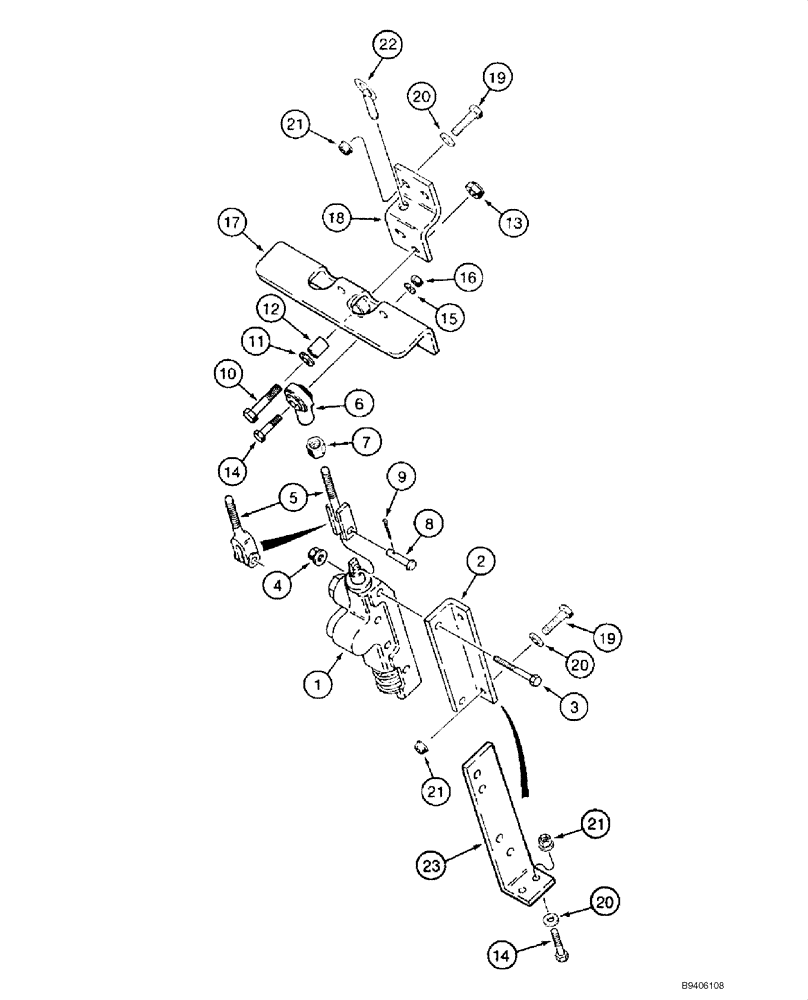

Запчасти Case 1845C (08-23) - MOUNTING - VALVE, AUXILIARY CONTROL (08) - HYDRAULICS

MODELS WITH FOOT OPERATED LOADER CONTROLS

1шт.

1

REF

INSTRUCTION

Valve Assy, Control; Auxiliary; See Fig 08-18

1шт.

2

D128116

BRACKET

Auxiliary Control Valve without High Flow Hydraulics

1шт.

3

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

5

H439250

CLEVIS,3/8" - 24

Replaces D70292

1шт.

6

A32398

BALL JOINT

3/8 fem NF

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

1шт.

8

H32961

CLEVIS COUPLING,7.94mm OD x 29.34mm L

16 x 1; Replaces H35279

1шт.

9

432-48

COTTER PIN,1/16" x 1/2"

1шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

11

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

12

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

1шт.

13

232-4118

NUT,1/2"-13, GC

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

H673491

PEDAL

1шт.

18

D126741

BRACKET

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

21

231-5146

FLANGE NUT,3/8"-16

4шт.

22

D94535

PIN,9.52mm OD

1шт.

23

121022A1

SUPPORT

Auxiliary Control Valve with High Flow Hydraulics

1шт.
