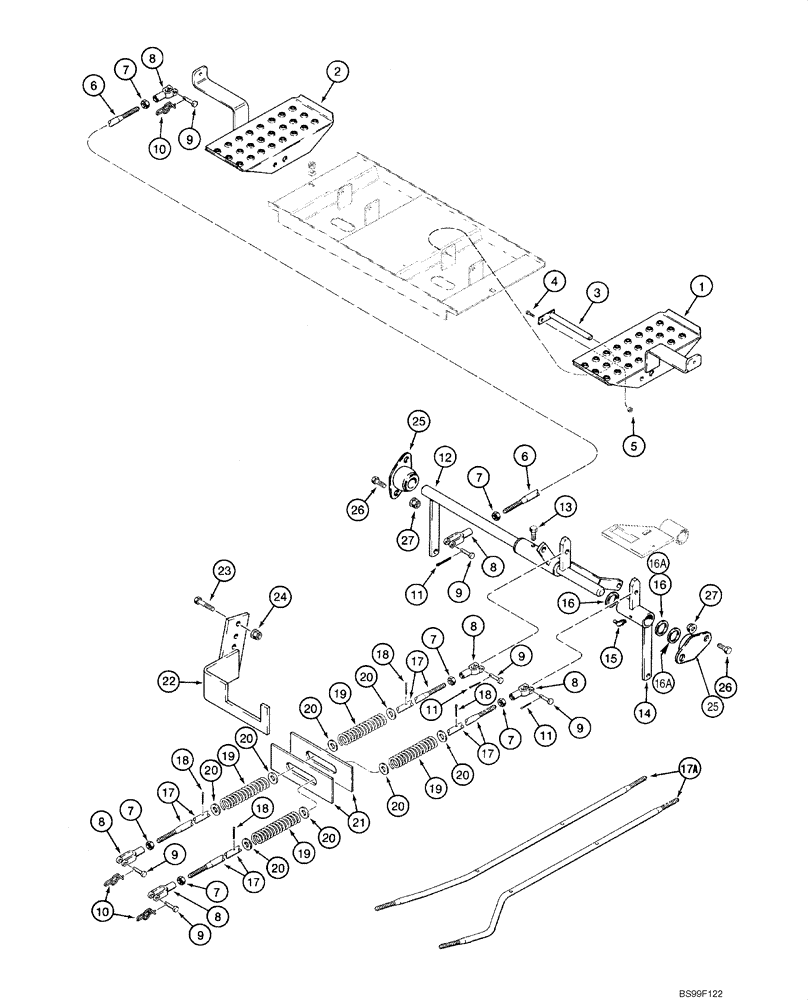

Запчасти Case 1845C (08-22) - CONTROLS - LOADER (FOOT OPERATED) (08) - HYDRAULICS

MODELS WITH FOOT OPERATED LOADER CONTROLS

1шт.

1

H673934

PEDAL

RH

1шт.

2

H673933

PEDAL

LH

1шт.

3

H673771

PIN,12.7mm OD x 140mm L

2шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

6

H437041

ROD

2шт.

7

425-115

NUT,5/16"-24, G5

8шт.

8

H382283

YOKE,5/16" - 24

UNIVERSAL JOINT YOKE

8шт.

9

D50559

CLEVIS,9.53mm OD x 28.32mm L

8шт.

10

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

4шт.

11

432-412

COTTER PIN,1/16" x 3/4"

4шт.

12

H674442

SHAFT

1шт.

13

414-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

Models without Auxiliary Hydraulics

1шт.

14

H674440

CRANK

1шт.

15

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

1шт.

16

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

1-2шт.

16a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

2шт.

17

H437515

ROD

- JAF0122750

4шт.

17a

H437737

ROD

JAF0122751 -

5шт.

18

432-816

COTTER PIN,1/8" x 1"

4шт.

19

D70304

COMPRESSION SPRING,0.955" OD x 4.00" L

4шт.

20

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

8шт.

21

H436963

LARGE PLATE

PLATE, LARGE

2шт.

22

H674301

BRACKET

1шт.

23

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

25

D139039

BEARING ASSY,19mm ID

2шт.

26

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

28

H437462

DECAL

LH Pedal; Not Illustrated

1шт.

29

H437463

DECAL

RH Pedal; Not Illustrated

1шт.
