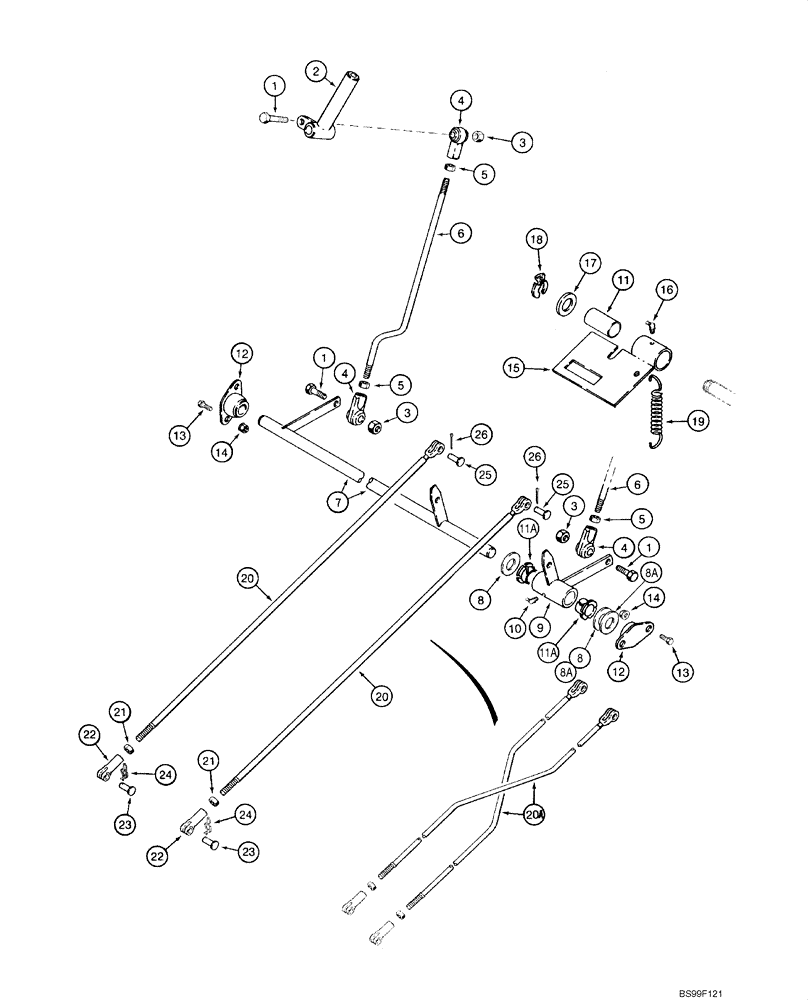

Запчасти Case 1845C (08-21) - CONTROLS - LOADER (HAND OPERATED) (08) - HYDRAULICS

MODELS WITH HAND OPERATED LOADER CONTROLS

1шт.

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

2

D128278

LEVER

2шт.

3

232-4116

NUT,3/8"-16, GC

4шт.

4

A32398

BALL JOINT

3/8 fem NF

4шт.

5

425-116

NUT,3/8" - 24, Gr 5

4шт.

6

D128257

ROD

2шт.

7

D138026

SHAFT

1шт.

8

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

1-2шт.

8a

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

2шт.

9

H674444

CRANK

Replaces D128262

1шт.

10

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

1шт.

11

119616A1

BUSHING

1шт.

11a

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

If Used

2шт.

12

D139039

BEARING ASSY,19mm ID

2шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

119814A1

LARGE PLATE

PLATE, LARGE Loader Lock

1шт.

16

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

1шт.

17

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

1шт.

18

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

Loader Lock

1шт.

19

D124939

SPRING

1шт.

20

H435759

ROD

Replaces D128265; - JAF0122750

2шт.

20a

H436766

ROD

JAF0122751 -

2шт.

21

425-115

NUT,5/16"-24, G5

2шт.

22

H382283

YOKE,5/16" - 24

UNIVERSAL JOINT YOKE

2шт.

23

D50559

CLEVIS,9.53mm OD x 28.32mm L

2шт.

24

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

2шт.

25

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

26

432-610

COTTER PIN,3/32" x 5/8"

2шт.
