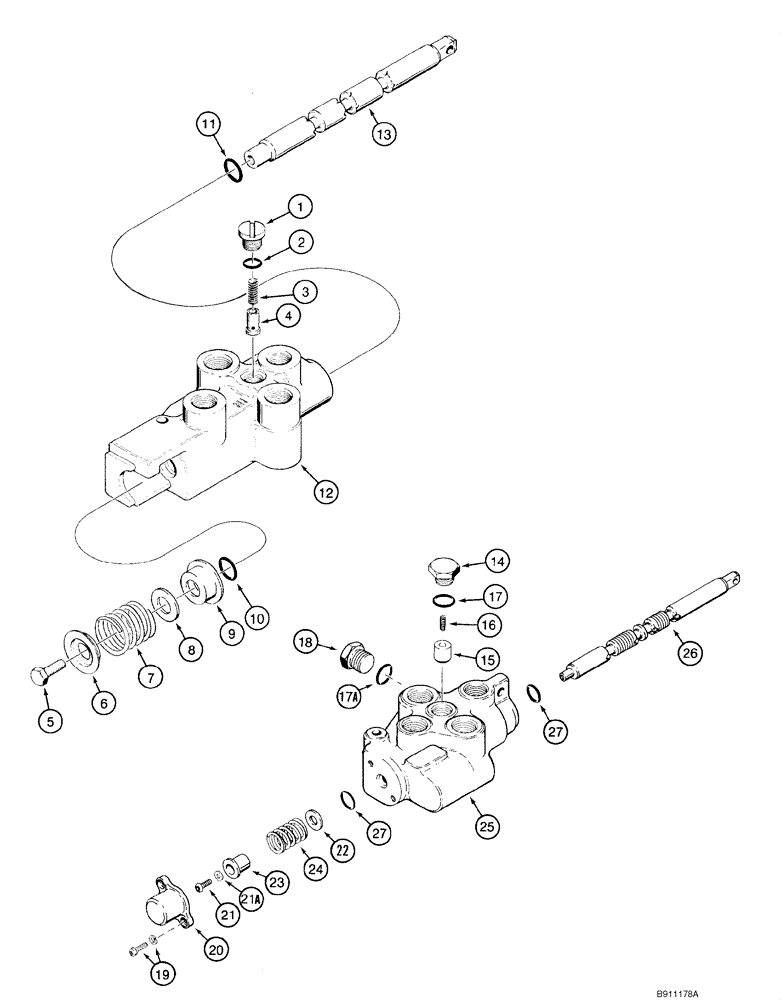

Запчасти Case 1845C (08-18) - VALVE, CONTROL - AUXILIARY (08) - HYDRAULICS

D64670

VALVE

Auxiliary Control; Incl. 1 - 13; No Longer Used, Order H674465, See Below; For Mounting, See Fig 08-18

1шт.

H47506

PLUG

Incl. 1 - 2

1шт.

1

NSS

NOT SOLD SEPARAT

Plug

1шт.

2

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

3

FH730374

SPRING

1шт.

4

FH730366

PLUNGER

1шт.

5

H428292

SCREW,1/4" - 20 x 0.972"

1шт.

6

F59116

WASHER

1шт.

7

H220517

SPRING

1шт.

8

H746164

WASHER

1шт.

9

H52902

CAP

1шт.

10

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

11

F37887

O-RING

1шт.

12

NSS

NOT SOLD SEPARAT

Body

1шт.

13

NSS

NOT SOLD SEPARAT

Spool

1шт.

H674465

VALVE

Auxiliary Control; Incl. 14 - 27; For Mounting, See Fig 08-23

1шт.

142999A1

KIT

Load Check; Incl. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Plug

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

16

NSS

NOT SOLD SEPARAT

Spring

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

132547A1

PLUG

Power Beyond; Replaces H436435

1шт.

H674816

KIT

Centering Spring; Incl. 19 - 24

1шт.

19

221655A1

CAPTIVE WASHER SCREW,Phillips Drive, Round HD, #12 - 24 x 1/2"

Incl. Washer

2шт.

20

N9528

CAP

1шт.

21

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

1шт.

21a

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

22

492-11010

LOCK WASHER,#10

1шт.

23

N9529

SEAT

1шт.

24

N9539

TENSION SPRING

1шт.

25

NSS

NOT SOLD SEPARAT

Body

1шт.

26

NSS

NOT SOLD SEPARAT

Spool

1шт.

27

H438030

O-RING

5/8 x 13/16

2шт.
