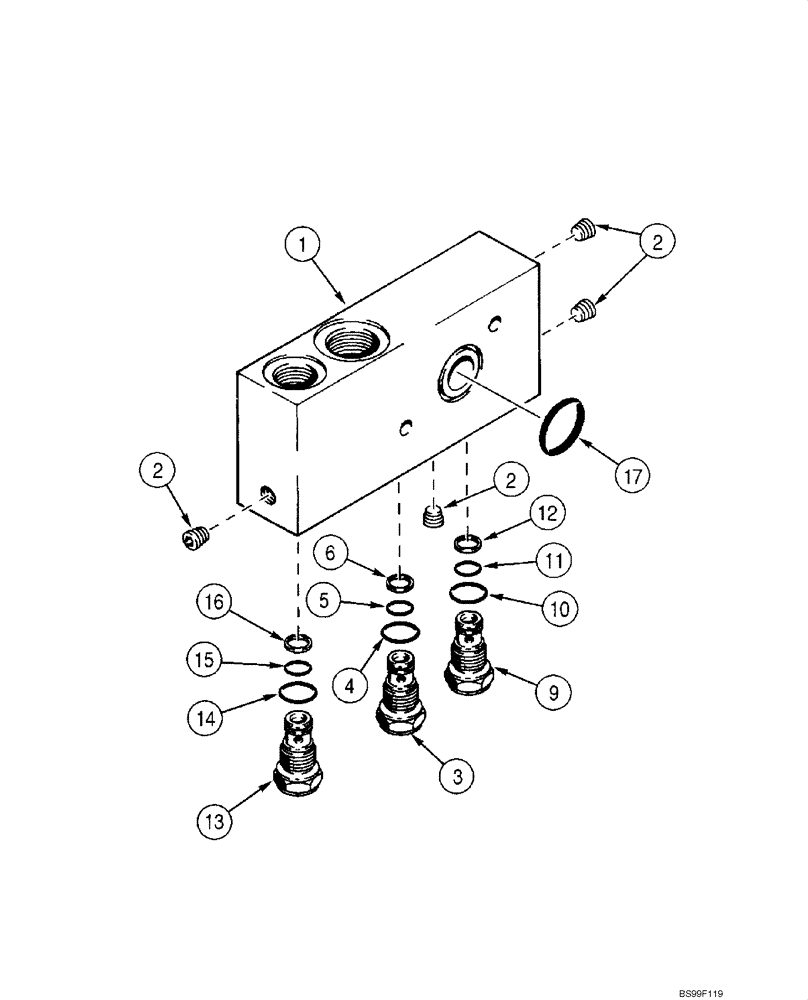

Запчасти Case 1845C (08-17) - VALVE ASSY, MANIFOLD, JAF0041368 - JAF0102061 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
D137500
MANIFOLD
Check Valve; Hydrostatic Drive manufactured By Waterman or Sterling; Incl. 1 - 17; For Mounting, See Fig 06-04
1шт.
1
NSS
NOT SOLD SEPARAT
Body
1шт.
2
221-841
PLUG
1/4 PT; If Used
4шт.
N14519
VALVE
5 psi; Used with Manifold manufactured by Waterman; Incl. 3 - 8
1шт.
100501A1
VALVE
5 psi; Used with manifold manufactured by Sterling
1шт.
6
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
Used with manifold manufactured by Sterling; Incl. 3 - 8
1шт.
3
NSS
NOT SOLD SEPARAT
Body
1шт.
4
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
5
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
Used with manifold manufactured by Waterman
1шт.
5
K692161
O-RING,0.634" ID x 0.76" OD x 0.063"
Used with manifold manufactured by Sterling
1шт.
6
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
Used with manifold manufactured by Sterling
1шт.
6
L30443
BACK-UP RING,0.547" ID x 0.049" Width
Used with manifold manufactured by Waterman
1шт.
6
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
Used with manifold manufactured by Sterling
1шт.
N14520
VALVE
15 psi; Used with manifold manufactured by Waterman; Incl. 9 - 12
1шт.
100501A1
VALVE
15 psi; Used with manifold manufactured by Sterling; Incl. 9 - 12
1шт.
9
NSS
NOT SOLD SEPARAT
Body
1шт.
10
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
11
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
Used with manifold manufactured by Waterman
1шт.
11
K692161
O-RING,0.634" ID x 0.76" OD x 0.063"
Used with manifold manufactured by Sterling
1шт.
12
L30443
BACK-UP RING,0.547" ID x 0.049" Width
Used with manifold manufactured by Waterman
1шт.
12
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
Used with manifold manufactured by Sterling
1шт.
N14521
VALVE
50 psi; Used with manifold manufactured by Waterman; Blue; Incl. 13 - 16
1шт.
100502A1
VALVE
50 psi; Used with manifold manufactured by Sterling; Incl. 13 - 16
1шт.
13
NSS
NOT SOLD SEPARAT
Body
1шт.
14
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
15
238-5015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro
Used with manifold manufactured by Waterman
1шт.
15
K692161
O-RING,0.634" ID x 0.76" OD x 0.063"
Used with manifold manufactured by Sterling
1шт.
16
L30443
BACK-UP RING,0.547" ID x 0.049" Width
Used with manifold manufactured by Waterman
1шт.
16
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
Used with manifold manufactured by Sterling
1шт.
17
238-5219
O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro
1шт.
Выбрано товаров: 30
