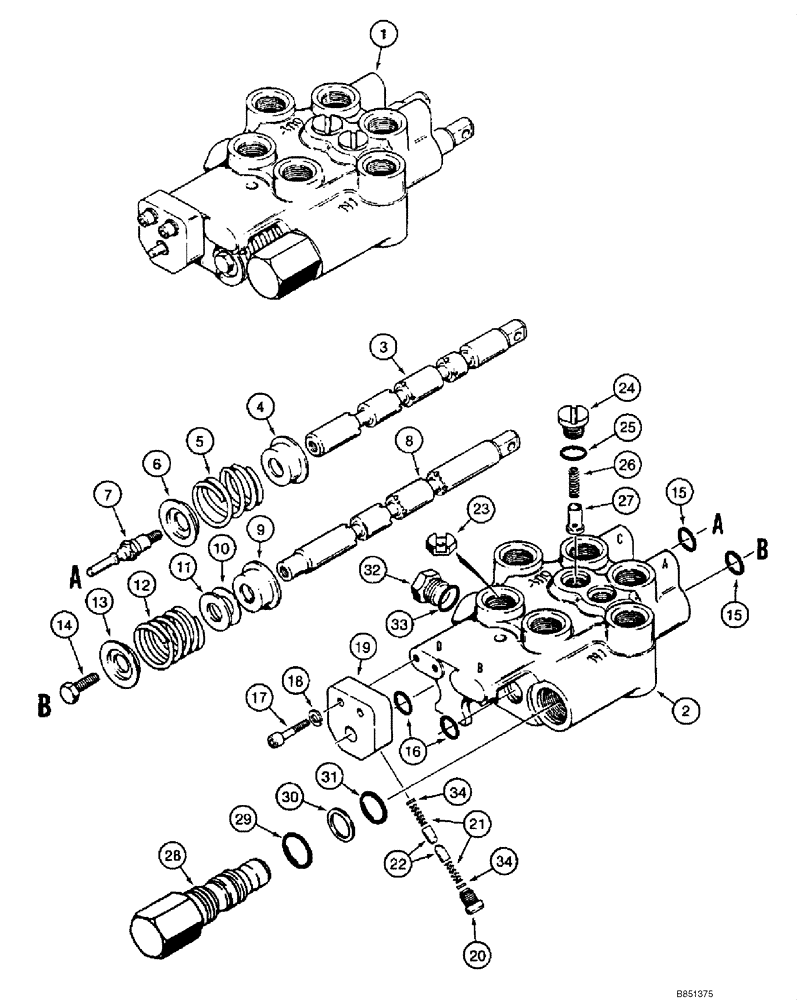

Запчасти Case 1845C (08-12) - VALVE, CONTROL - LOADER, - JAF0041139 (08) - HYDRAULICS

D101947

KIT

Control Valve; Loader Control; Incl. 1 - 34; No Longer Available, Order (1) H436154, (1) H674734, (4) 218-5059, (1) 9-67081

1шт.

DR101947

REMAN-HYD VALVE

Loader Control; Remanufactured

1шт.

DC101947

CORE-VALVE HYD

CORE-HYD VALVE Return Number; Use to Return Core for Credit when using a Remanufactured Assembly

1шт.

1

D130068

VALVE

Loader Control; Two Spool; Incl. 1 - 34

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

H138271

WASHER

1шт.

5

F59118

SPRING

1шт.

6

F59116

WASHER

1шт.

7

H139071

SCREW,1/4" - 20

1шт.

8

NSS

NOT SOLD SEPARAT

Spool

1шт.

9

H52902

CAP

1шт.

10

F8235

WASHER

2 mm

1шт.

11

H746164

WASHER

1шт.

12

F59118

SPRING

1шт.

13

F59116

WASHER

1шт.

14

H428292

SCREW,1/4" - 20 x 0.972"

1шт.

15

F37887

O-RING

2шт.

16

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

REF

INSTRUCTION

Valve, Control

1шт.

17

61-32516

HEX SOC SCREW,1/4"-20 x 1"

2шт.

18

492-11025

LOCK WASHER,1/4"

2шт.

19

H125831

BLOCK

1шт.

20

H424200

PLUG

1шт.

21

H105049

SPRING

2шт.

22

H104992

PAWL

2шт.

23

D73659

FITTING

1шт.

24

H47506

PLUG

Incl. 25

2шт.

25

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

26

FH730374

SPRING

2шт.

27

FH730366

PLUNGER

2шт.

N9485

VALVE

Incl. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

Valve, Relief

1шт.

29

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

30

N9711

BACK-UP RING,0.688" ID x 0.807" OD x 0.059"

1шт.

31

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

32

H94219

PLUG

Incl. 33

1шт.

33

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

34

H141788

DISC

1шт.
