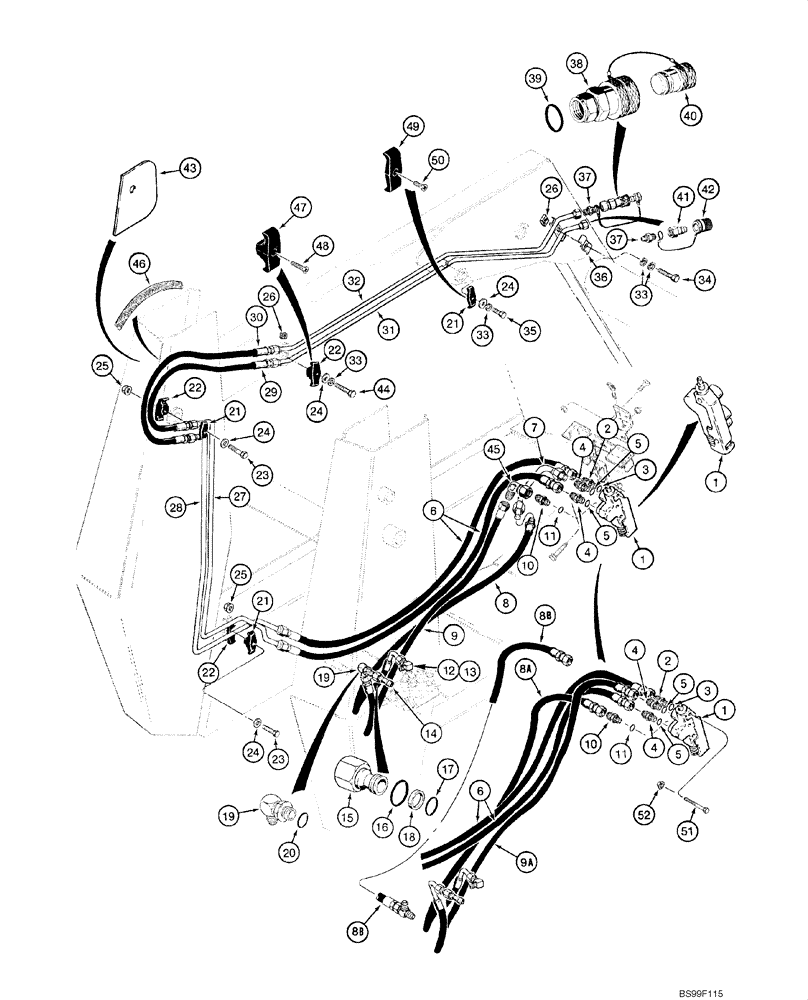

Запчасти Case 1845C (08-08) - HYDRAULICS - AUXILIARY SYSTEM, JAF0102177 - JAF0143530 (08) - HYDRAULICS

1

H674465

VALVE

Auxiliary Control; See Fig 08-18

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Incl. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H436707

HOSE,12.7mm ID x 1650mm L

2шт.

7

D126724

TUBE

Outlet Port; - JAF0121330; No Longer Available; Order H436149, Ref 8A; 218-5065, Ref 2; Also Order 218-5107, Ref 19

1шт.

8

D139278

HOSE

1850 mm (72-7/8 in); - JAF0121330

1шт.

8a

H436149

HOSE,19.05mm ID x 1950mm L, SAE 100R1

1950 mm (76-7/8 in); JAF0121331 - ; Used with Fuel Injection Pump J935677; See Fig 03-10

1шт.

8b

A141004

HYDRAULIC HOSE,0.75" ID x 64.00", SAE 100R1

Models with Emissions Certified Engine; Used with Fuel Injection Pump J931397; See Fig 03-09

1шт.

9

107026A1

HOSE ASSY.

1650 mm (65 in); - JAF0121330; No Longer Available; Order H435865, Ref 9A

1шт.

9a

H435865

HOSE ASSY.,15.88mm ID x 2150mm L

2150 mm (84-3/4 in); JAF0121331 -

1шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

D61606

TEE

90; Incl. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

H436154

FITTING,7/8" - 14

Power Beyond; Incl. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

18

A52424

BACK-UP RING

1шт.

19

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

3шт.

22

D120613

CLAMP,20mm ID

3шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

27

104344A1

HYD TUBE,15.88 mm OD, 946 mm Length

1шт.

28

104343A1

HYD TUBE,15.88 mm OD, 873 mm Length

1шт.

29

D126740

HOSE,12.7mm ID x 850mm L, SAE 100R2

850 mm (33-1/2 in)

1шт.

30

D126739

HOSE,12.7mm ID x 950mm L, SAE 100R2

1100 mm (43-3/8 in)

1шт.

31

D126734

TUBE

1шт.

32

D126736

TUBE

1шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

35

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

36

H435737

CLAMP

1шт.

37

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

2шт.

38

H436396

COUPLING

Self-Sealing, Female

1шт.

39

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

40

T40274

CAP

1шт.

41

1272770C2

COUPLING, BREAK AWAY

Male

1шт.

42

T40759

PLUG

1шт.

43

D135910

LARGE PLATE

PLATE, LARGE

1шт.

44

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

45

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

46

D131814

SLEEVE

1шт.

47

103171A1

CLAMP

European Models with Glazed ROPS Only

1шт.

48

443-13820

SCREW,Cross Flat Hd, 3/8"-16 x 1 1/4"

European Models with Glazed ROPS Only

1шт.

49

103173A1

CLAMP

European Models with Glazed ROPS Only

1шт.

50

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

European Models with Glazed ROPS Only

1шт.

51

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

52

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.
