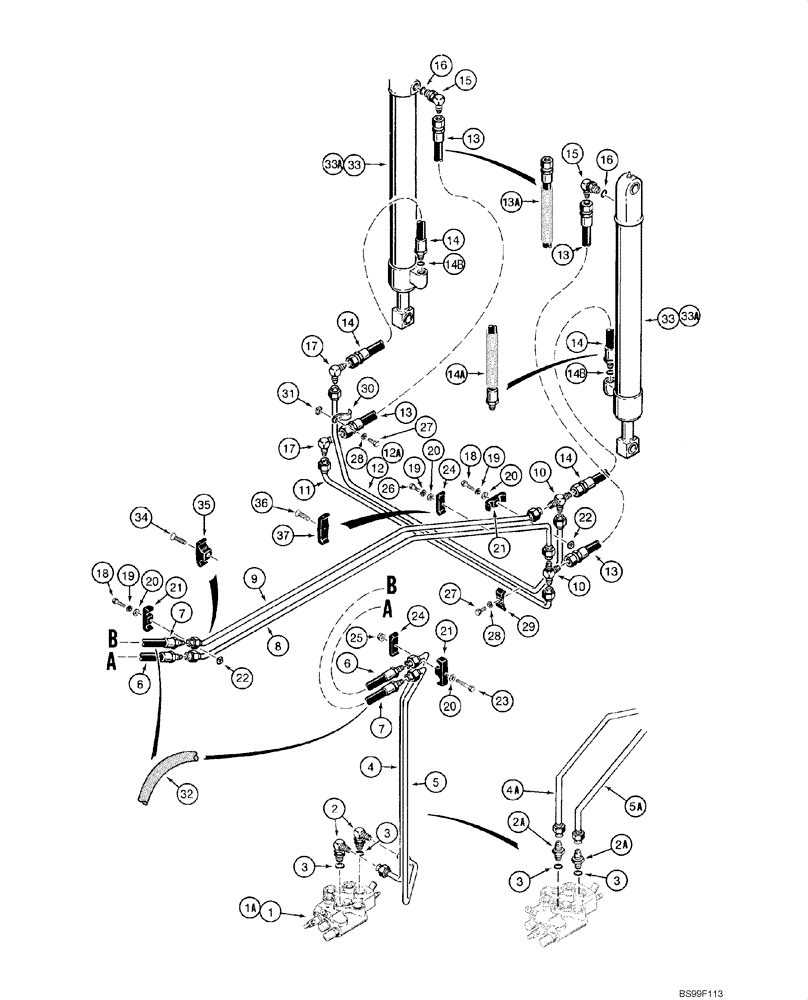

Запчасти Case 1845C (08-06) - HYDRAULICS - LOADER BUCKET, JAF0041368 - (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control; Loader Control; See Fig 08-14; JAF0041368 - JAF0122750

1шт.

1a

REF

INSTRUCTION

Valve, Control; Loader Control; See Fig 08-15; JAF0122751 -

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 3; - JAF0122750

2шт.

2a

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3; JAF0122751 -

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

D129142

TUBE

JAF0041368 - JAF0122750

1шт.

4a

128520A1

TUBE,12.7 mm OD, 812, 165 mm Length

JAF0122751 -

1шт.

4a

234584A1

TUBE

Models with Emissions Certified Engine

1шт.

5

D129140

TUBE

JAF0041368 - JAF0122750

1шт.

5a

128518A1

TUBE,12.7 mm OD, 775, 105 mm Length

JAF0122751 -

1шт.

5a

234587A1

TUBE

Models with Emissions Certified Engine

1шт.

6

D124666

HOSE

1000 mm (39-3/8 in)

1шт.

7

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

950 mm (37-1/2 in)

1шт.

8

D124667

TUBE

1шт.

9

D124675

TUBE

1шт.

10

218-594

TEE,3/4"-16, 37 Degree

2шт.

11

D124669

TUBE

1шт.

12

D124681

TUBE

1шт.

12a

186429A1

TUBE,12.7 mm OD, 844, 278 mm Length

Models with Emissions Certified Engine

1шт.

13

D64604

HOSE,9.53mm ID x 558.8mm L, SAE 100R1

559 mm (22 in)

2шт.

13a

E98739

HOSE

559 mm (22 in); German T.B.G. Models

2шт.

14

D70254

HOSE,9.53mm ID x 762mm L, SAE 100R2

762 mm (30 in)

2шт.

14a

E98740

HOSE

762 mm (30 in); German T.B.G. Models

2шт.

14b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

492-11038

LOCK WASHER,3/8"

3шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

21

D120679

CLAMP,Tube, 1/2"

3шт.

22

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1-2шт.

24

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

25

231-5146

FLANGE NUT,3/8"-16

1шт.

26

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

27

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

28

492-11031

LOCK WASHER,5/16"

2шт.

29

R17319

CLAMP

1шт.

30

D140709

CLAMP

1шт.

31

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

1шт.

32

D131814

SLEEVE

1шт.

33

G34926

CYLINDER

64 ID x 540 mm strk; Loader Bucket; See Fig 08-29; - JAF0134730; No Longer Available; Order 118156A1

2шт.

118156A1R

REMAN-HYD CYLINDER

1845C - CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA) JAF0041368 (1/86-); Reman for new P/N G34926

2шт.

118156A1C

CORE-HYD CYLINDER

Return Number

1шт.

33a

118156A1

CYLINDER,Double Acting, 31.8mm Rod, 539.8mm Stroke

65 ID x 540 mm strk; Loader Bucket; See Fig 08-28; JAF0134731 -

2шт.

118156A1R

REMAN-HYD CYLINDER

1845C - CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA) JAF0041368 (1/86-); Reman for new P/N G34926

2шт.

118156A1C

CORE-HYD CYLINDER

Return Number.

1шт.

34

443-13820

SCREW,Cross Flat Hd, 3/8"-16 x 1 1/4"

European Models with Glazed ROPS Only

1шт.

35

103172A1

CLAMP

European Models with Glazed ROPS Only

1шт.

36

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

European Models with Glazed ROPS Only

1шт.

37

103173A1

CLAMP

European Models with Glazed ROPS Only

1шт.
