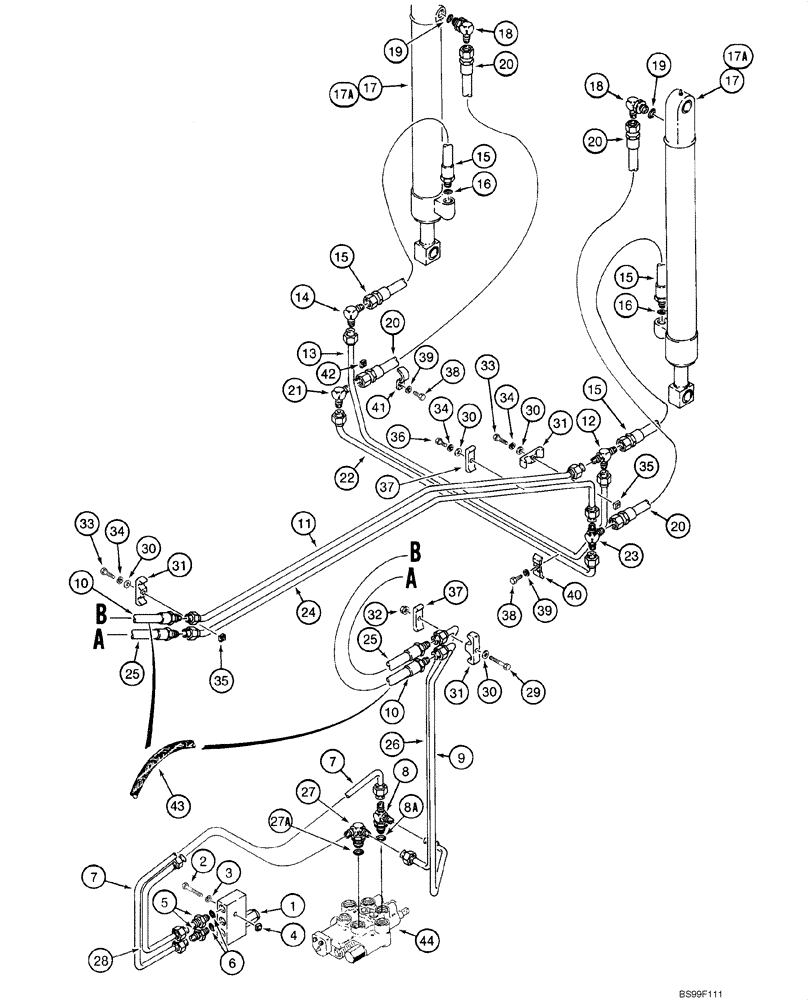

Запчасти Case 1845C (08-04) - HYDRAULICS - LOADER BUCKET, - JAF0041139 (08) - HYDRAULICS

1

D124376

VALVE

See Fig 08-16

1шт.

2

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

3

492-11031

LOCK WASHER,5/16"

1шт.

4

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

D129144

TUBE

1шт.

8

218-5292

TEE,37 Degree, 3/4"-16, 7/8"-14 O-Ring Run, 3/4"-16

1/2 x 5/8 x 1/2; Incl. 8A

1шт.

8a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

D129140

TUBE

1шт.

10

D124674

HOSE,9.53mm ID x 950mm L, SAE 100R2

950 mm (37-1/2 in)

1шт.

11

D124675

TUBE

1шт.

12

218-594

TEE,3/4"-16, 37 Degree

1шт.

13

D124681

TUBE

Crossover

1шт.

14

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

15

D70254

HOSE,9.53mm ID x 762mm L, SAE 100R2

762 mm (30 in); Incl. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

G34926

CYLINDER

64 ID x 540 mm strk; Loader Bucket; See Fig 08-29; No Longer Available; Order 118156A1, Ref 17A

2шт.

118156A1R

REMAN-HYD CYLINDER

1845C - CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA) JAF0041139 (1/86-); Reman for new P/N G34926

2шт.

118156A1C

CORE-HYD CYLINDER

Return Number

1шт.

17a

118156A1

CYLINDER,Double Acting, 31.8mm Rod, 539.8mm Stroke

65 ID x 540 mm strk; Loader Bucket; See Fig 08-28

2шт.

118156A1R

REMAN-HYD CYLINDER

1845C - CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA) JAF0041139 (1/86-); Reman for new P/N G34926

2шт.

118156A1C

CORE-HYD CYLINDER

Return Number

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

D64604

HOSE,9.53mm ID x 558.8mm L, SAE 100R1

559 mm (22 in)

2шт.

21

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

22

D124669

TUBE

Crossover

1шт.

23

218-594

TEE,3/4"-16, 37 Degree

1шт.

24

D124667

TUBE

1шт.

25

D124666

HOSE

1000 mm (39-3/8 in)

1шт.

26

D129142

TUBE

1шт.

27

D124671

FITTING

Tee at Control Valve, Port B; Incl. 27A

1шт.

27a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

D129146

TUBE

1шт.

29

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

31

D120679

CLAMP,Tube, 1/2"

3шт.

32

231-5146

FLANGE NUT,3/8"-16

1шт.

33

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

34

492-11038

LOCK WASHER,3/8"

3шт.

35

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

36

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

37

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

38

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

39

492-11031

LOCK WASHER,5/16"

2шт.

40

R17319

CLAMP

1шт.

41

D140709

CLAMP

1шт.

42

224-2245

SQUARE NUT,Sq, 5/16"-18, G2

1шт.

43

D131814

SLEEVE

1шт.

44

D130068

VALVE

Loader Control; See Fig 08-12

1шт.
