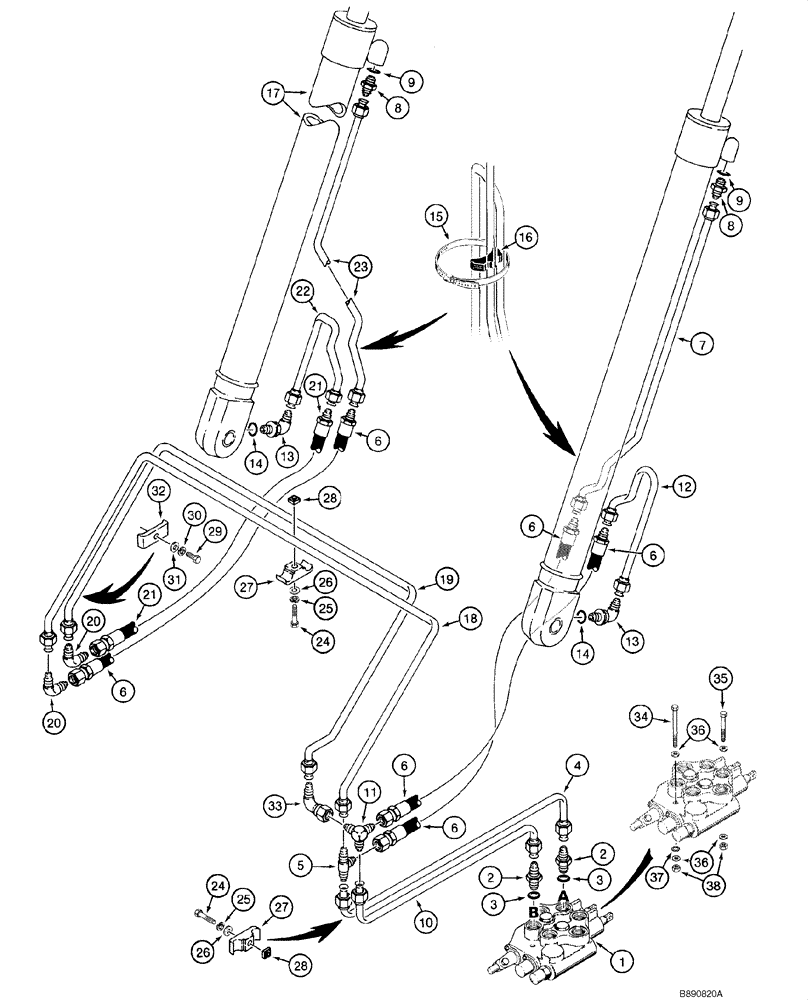

Запчасти Case 1845C (08-02) - HYDRAULICS - LOADER LIFT, JAF0041140 - JAF0041367 (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control; Loader Control; See Fig 08-13

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

D129132

TUBE

At Control Valve, Port A

1шт.

5

218-594

TEE,3/4"-16, 37 Degree

1шт.

6

D124648

HOSE

500 mm (19-3/4 in)

3шт.

7

D124653

TUBE

RH

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

D129136

TUBE

At Control Valve, Port B

1шт.

11

D124661

ELBOW

1шт.

12

D124651

TUBE

RH

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

2шт.

16

R24703

SUPPORT

2шт.

17

REF

INSTRUCTION

Cylinder Assy; Loader Lift; See Figs 08-26, 08-27

2шт.

18

D129134

TUBE

Crossover

1шт.

19

D129138

TUBE

Crossover

1шт.

20

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

21

D125867

HOSE

451 mm (17-7/8 in)

1шт.

22

D124655

TUBE

LH

1шт.

23

D124657

TUBE

LH

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

27

D120679

CLAMP,Tube, 1/2"

2шт.

28

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

29

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

30

492-11038

LOCK WASHER,3/8"

1шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

32

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

33

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

34

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

35

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

36

H426775

WASHER

4шт.

37

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

38

232-4115

LOCK NUT,5/16"-18, GC

2шт.
