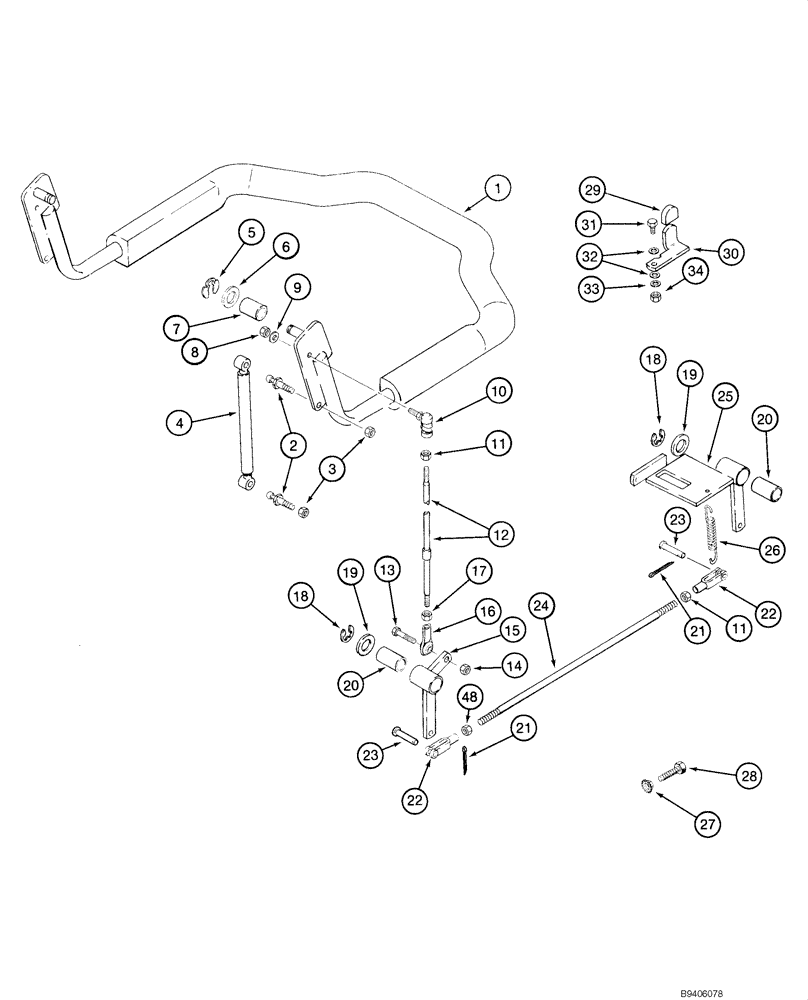

Запчасти Case 1845C (07-05) - PARKING LATCH - SEAT BAR, SINGLE (EUROPE), JAF0142298 - (07) - BRAKES

1

133719A1

BAR

Brown

1шт.

1

179834A1

BAR ASSY.

Gray

1шт.

2

1340345C1

BALL STUD

BALL PIN

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

128461A2

GAS STRUT

1шт.

5

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

6

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

17/32 x 1 x 1/16

2шт.

7

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

8

425-115

NUT,5/16"-24, G5

1шт.

9

492-11031

LOCK WASHER,5/16"

1шт.

10

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

5/16 NF

1шт.

11

425-155

JAM NUT,Jam, 5/16"-24, G5

3шт.

12

140423A3

ROD

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

14

232-4116

NUT,3/8"-16, GC

1шт.

15

135014A1

PIVOT ASSY.

1шт.

16

A32398

BALL JOINT

3/8 fem NF

1шт.

17

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

18

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

2шт.

19

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

4шт.

20

119616A1

BUSHING

2шт.

21

432-610

COTTER PIN,3/32" x 5/8"

2шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

23

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

24

135017A1

ROD

1шт.

25

135018A1

LARGE PLATE

PLATE, LARGE

1шт.

26

D124939

SPRING

1шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

113-2296

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

29

140377A1

HANDLE

1шт.

30

140013A1

LATCH

1шт.

31

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

32

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

33

140381A1

WASHER

1шт.

34

232-4115

LOCK NUT,5/16"-18, GC

1шт.
