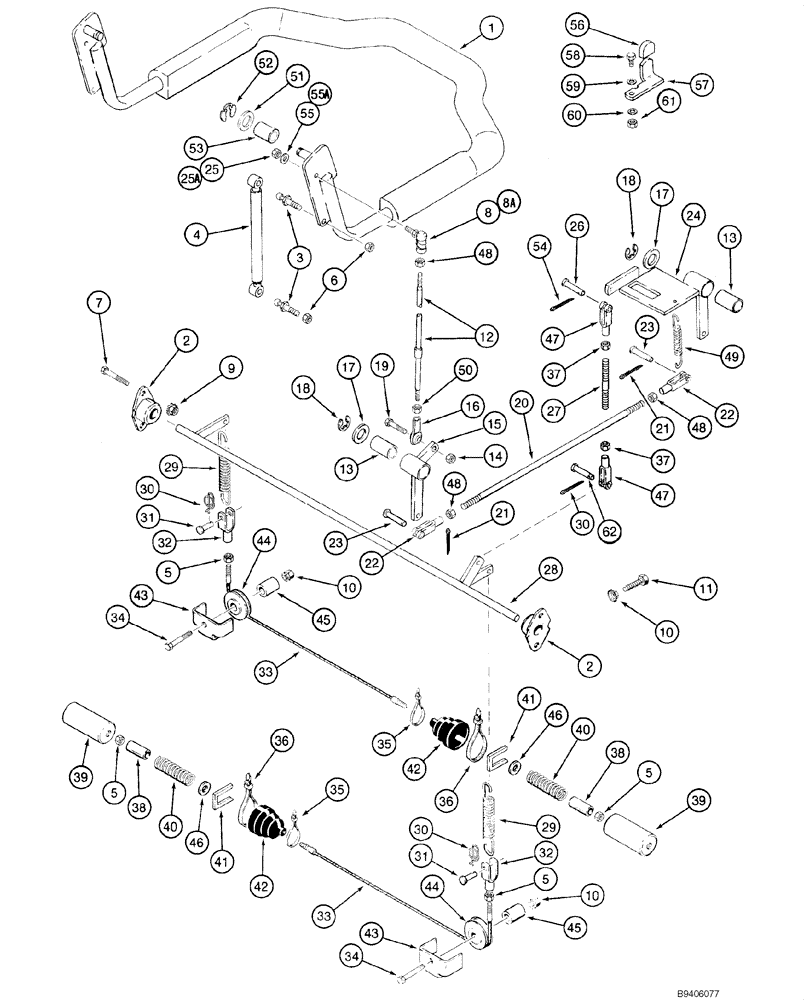

Запчасти Case 1845C (07-04) - PARKING LATCH - SEAT BAR, SINGLE, JAF0135099 - (07) - BRAKES

1

133719A1

BAR

Brown

1шт.

1

179834A1

BAR ASSY.

Gray

1шт.

2

R29593

FLANGED BEARING,1.125" OD x 0.562"

2шт.

3

1340345C1

BALL STUD

BALL PIN

2шт.

4

128461A2

GAS STRUT

1шт.

5

425-144

JAM NUT,Jam, 1/4"-20, G5

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

8

H169920

BALL JOINT

1/4 NF

1шт.

8a

H358374

PIVOT,1/4" - 28 x 1-1/3"

1/4 NF; Heavy Duty

1шт.

8b

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

5/16 NF; Not Illustrated

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

10

231-5146

FLANGE NUT,3/8"-16

4шт.

11

113-2296

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

12

140423A3

ROD

1шт.

13

119616A1

BUSHING

2шт.

14

232-4116

NUT,3/8"-16, GC

1шт.

15

135014A1

PIVOT ASSY.

1шт.

16

A32398

BALL JOINT

3/8 fem NF

1шт.

17

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

4шт.

18

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

20

135017A1

ROD

1шт.

21

432-610

COTTER PIN,3/32" x 5/8"

2шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

2шт.

23

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

24

135018A1

LARGE PLATE

PLATE, LARGE

1шт.

25

425-114

NUT,1/4"-28, G5

Used with H169920, Ref. 8

1шт.

25a

425-115

NUT,5/16"-24, G5

Used with H289652, Ref 8A

1шт.

26

427-4077

CLEVIS PIN,1/4" x .770"

1шт.

27

135020A1

ROD

1шт.

28

135021A1

SHAFT

1шт.

29

D127347

SPRING

2шт.

30

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

3шт.

31

D23693

AXLE PIN

1/4 x 1

2шт.

32

H169300

CLEVIS

1/4

2шт.

33

134768A1

CABLE ASSY.

Lower

2шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

37

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

38

H435266

SPACER

2шт.

39

D64228

PIN,25.45mm OD x 53.34mm L

2шт.

40

D91040

SPRING

2шт.

41

H438614

CLIP

2шт.

42

D70018

BOOT

2шт.

43

D124466

RETAINER

2шт.

44

D124465

PULLEY,54mm OD

2шт.

45

D95743

SPACER

2шт.

46

495-81108

WASHER,.281" x 1" x .109"

2шт.

47

213-124

ADJUSTABLE CLEVIS,1/4"-28

2шт.

48

425-155

JAM NUT,Jam, 5/16"-24, G5

3шт.

49

D124939

SPRING

1шт.

50

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

51

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

17/32 x 1 x 1/16

2шт.

52

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

53

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

54

432-48

COTTER PIN,1/16" x 1/2"

1шт.

55

492-11025

LOCK WASHER,1/4"

Used with H169920, Ref 8

1шт.

55a

492-11031

LOCK WASHER,5/16"

Used with H289652, Ref 8A

1шт.

56

140377A1

HANDLE

1шт.

57

140013A1

LATCH

1шт.

58

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

59

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

60

140381A1

WASHER

1шт.

61

232-4115

LOCK NUT,5/16"-18, GC

1шт.

62

D50559

CLEVIS,9.53mm OD x 28.32mm L

1шт.
